Overhead Cupboard Gas Struts – 200mm 100N (Pair) – 10mm Ball Stud + 4x L Brackets
AUTORCE 200mm 100N overhead cupboard gas struts are designed for lift-up cabinet doors, wall cupboards and upward-opening overhead units. This configuration uses 10mm ball studs with a 4x L bracket mounting kit for a secure, straightforward install on common chipboard/MDF cabinet panels.
Ideal when you want a clean, stable lift with reliable hold-open support. When correctly positioned, the struts help reduce sudden door drop and improve day-to-day cupboard use in kitchens, utility rooms and compact storage builds.
✓ IN STOCK – FAST UK DISPATCH
Key specifications
-
Force: 100N (each strut)
-
Extended length: 200mm (centre to centre)
-
Stroke: 60mm
-

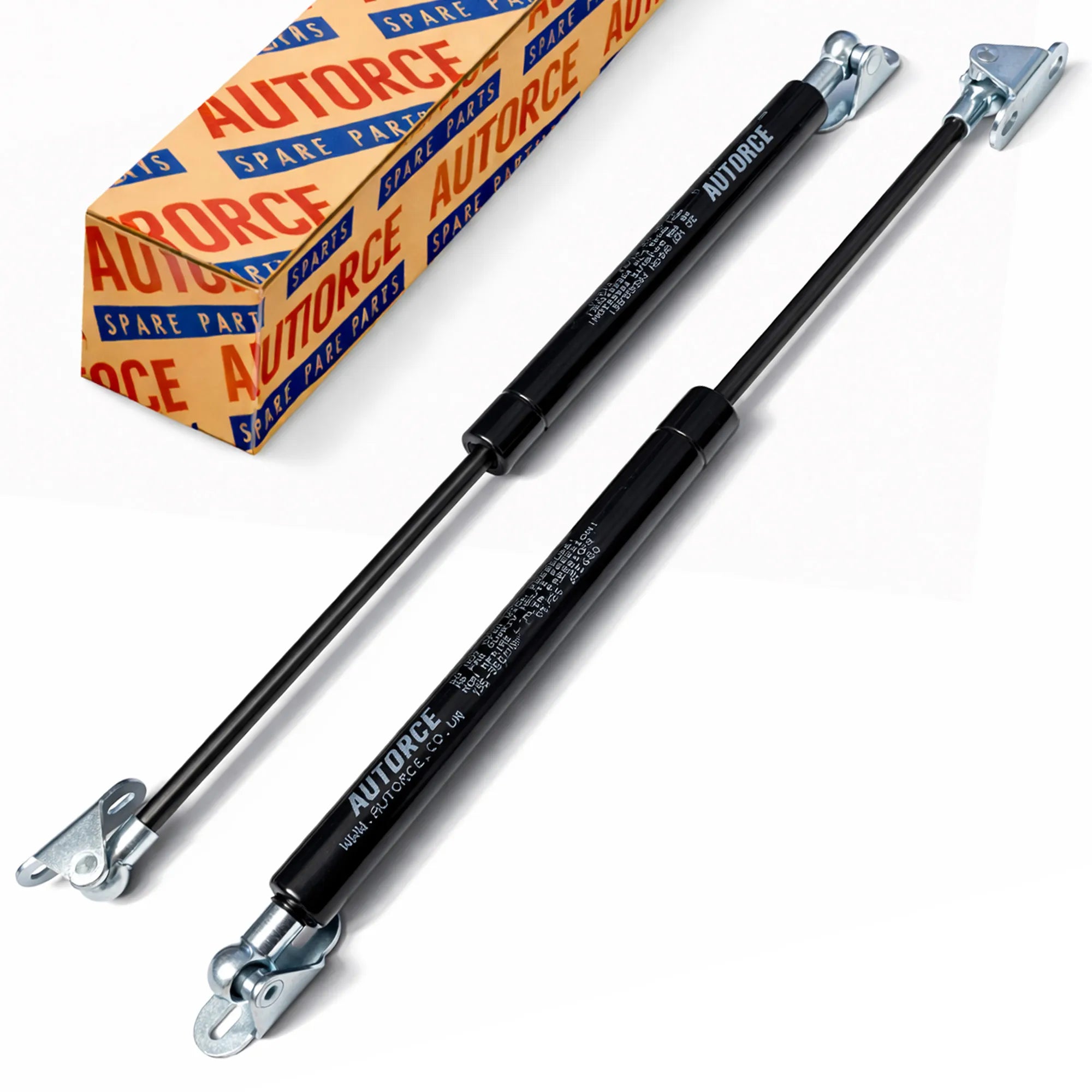

End fittings: 10mm ball socket ends
-

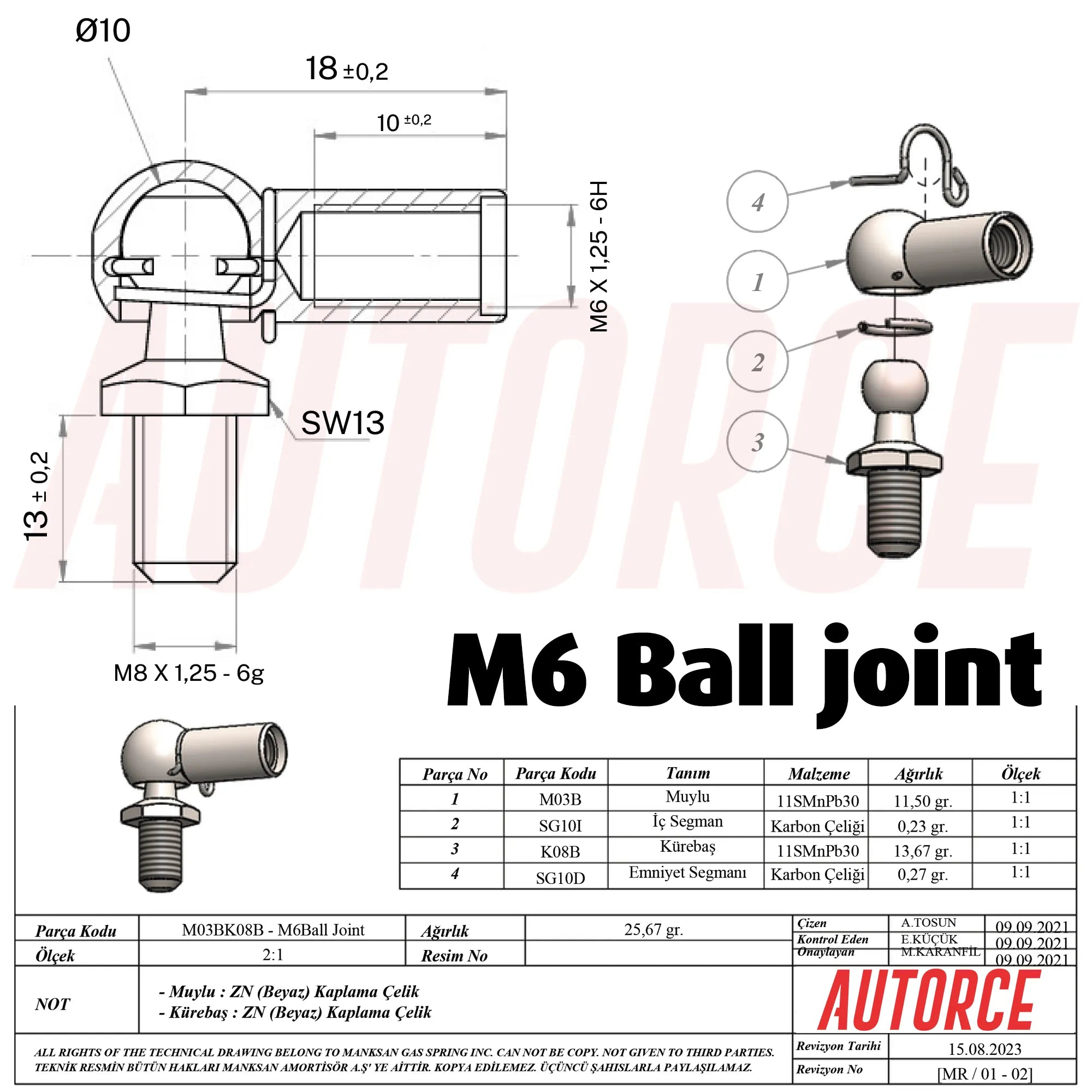

Ball studs: M6 threaded 10mm ball studs
-

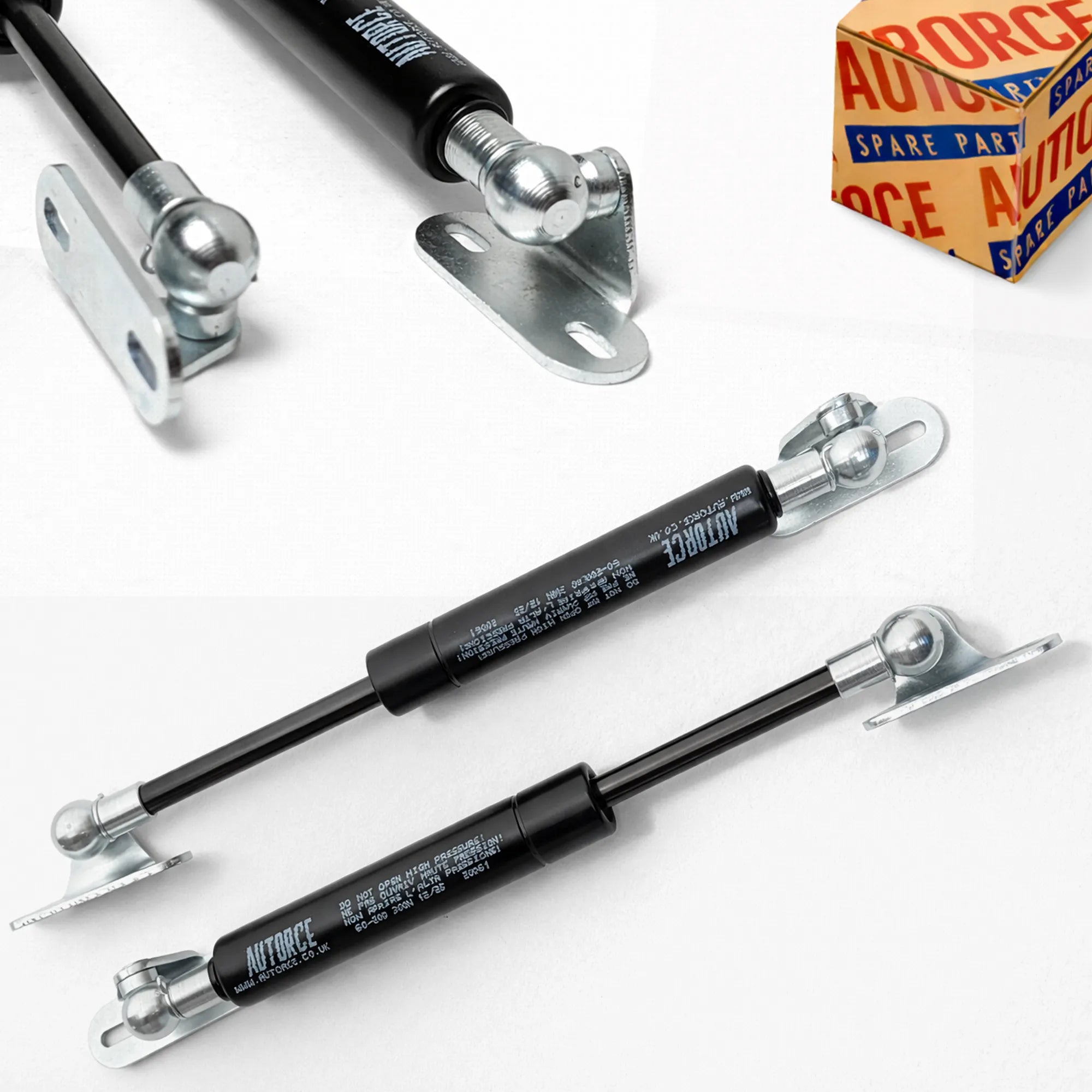

Bracket kit: 4x L brackets (wood screw mounting)
-
Suggested door depth: approx. 200–400mm
-
Typical door weight (door only): approx. 4–10kg with two struts
What’s included

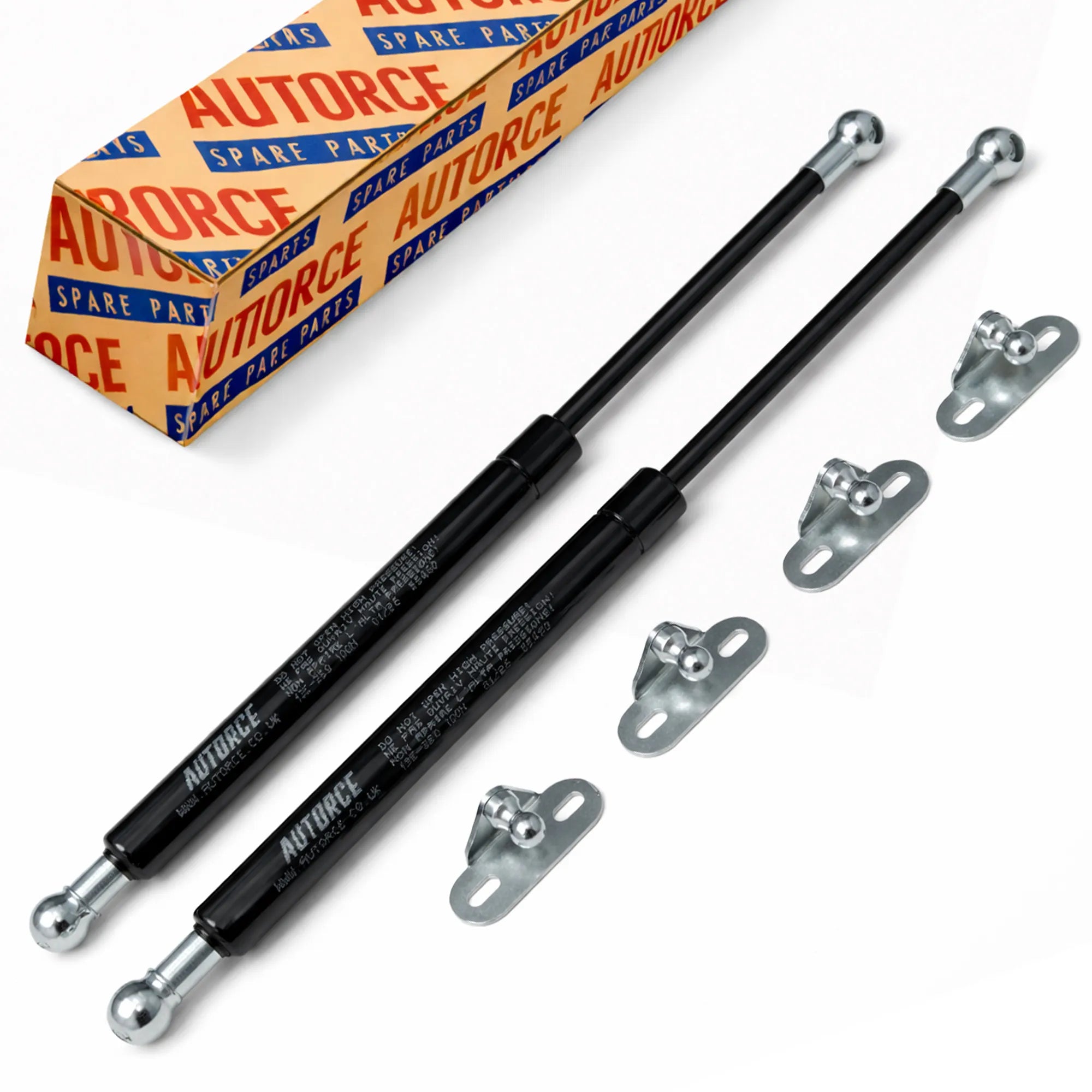

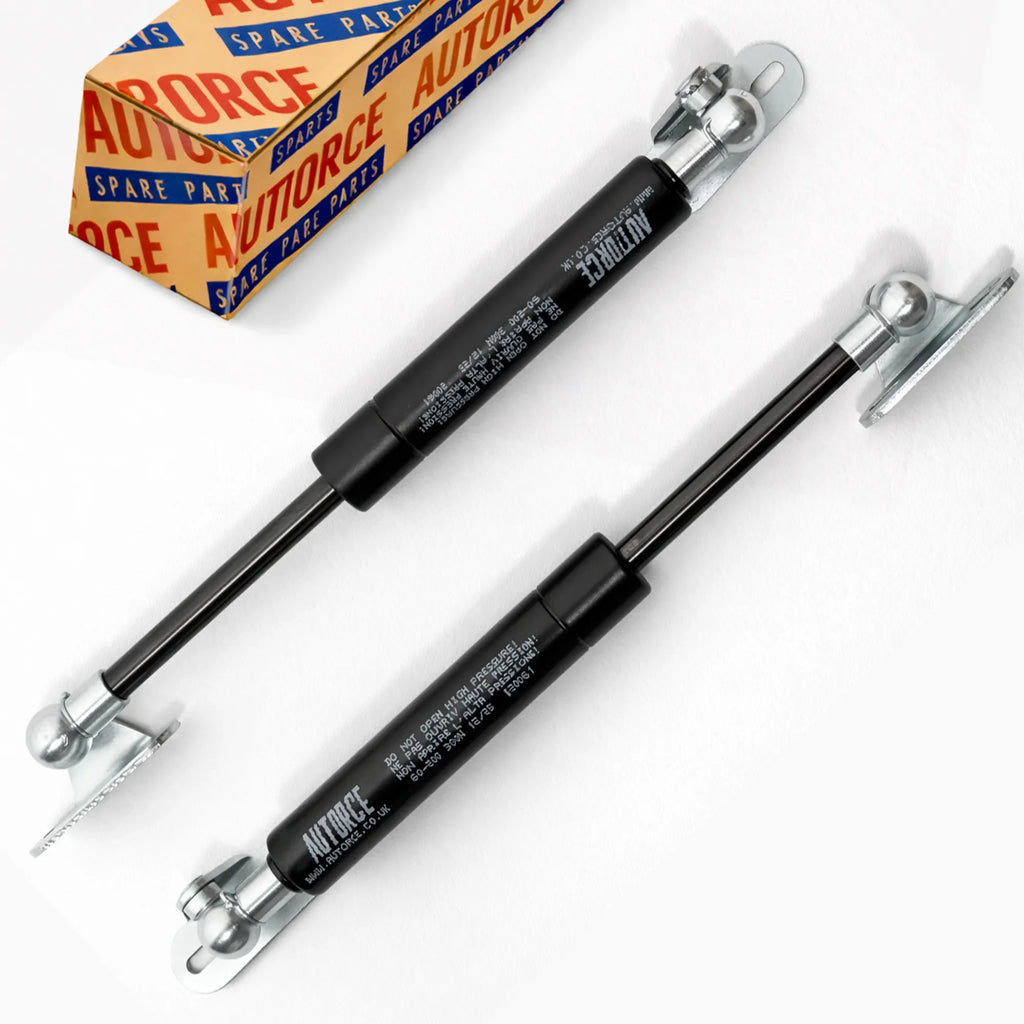

- 2x gas struts (sold as a pair)

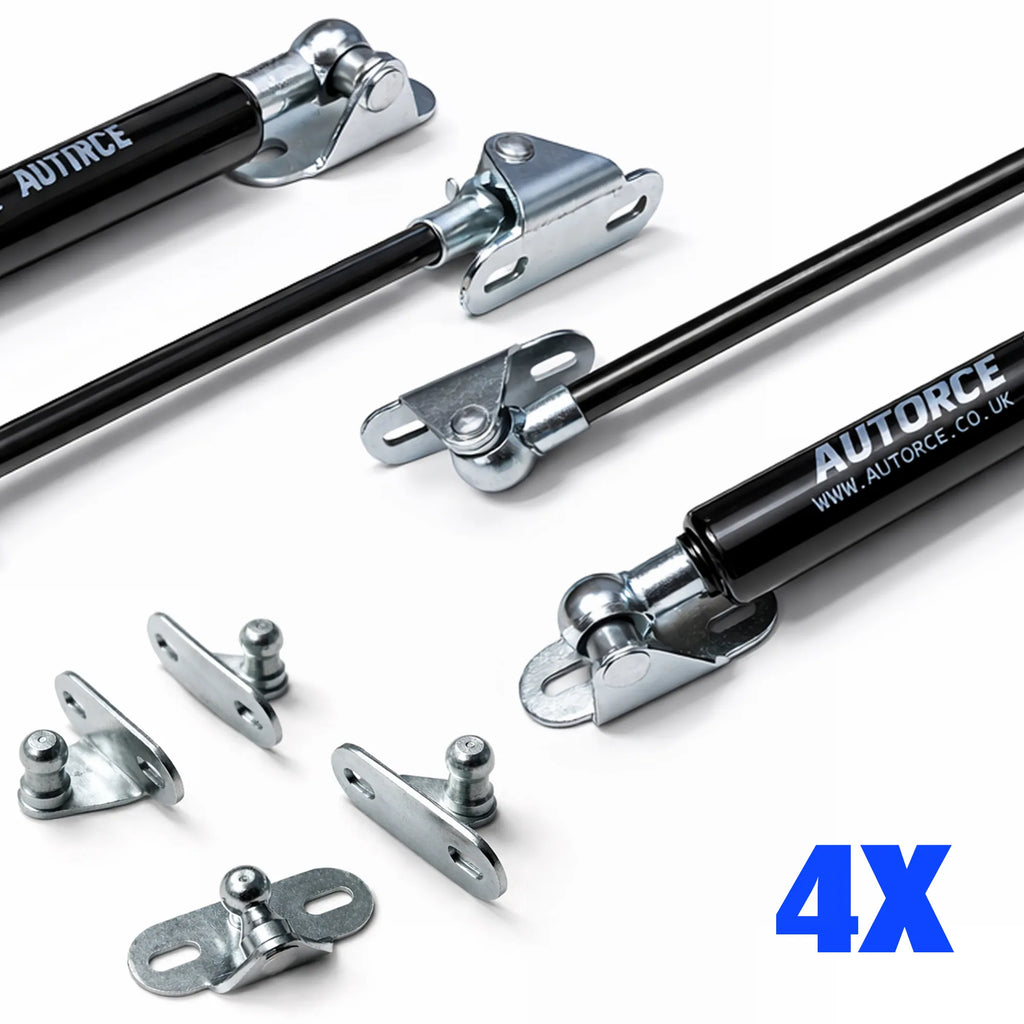

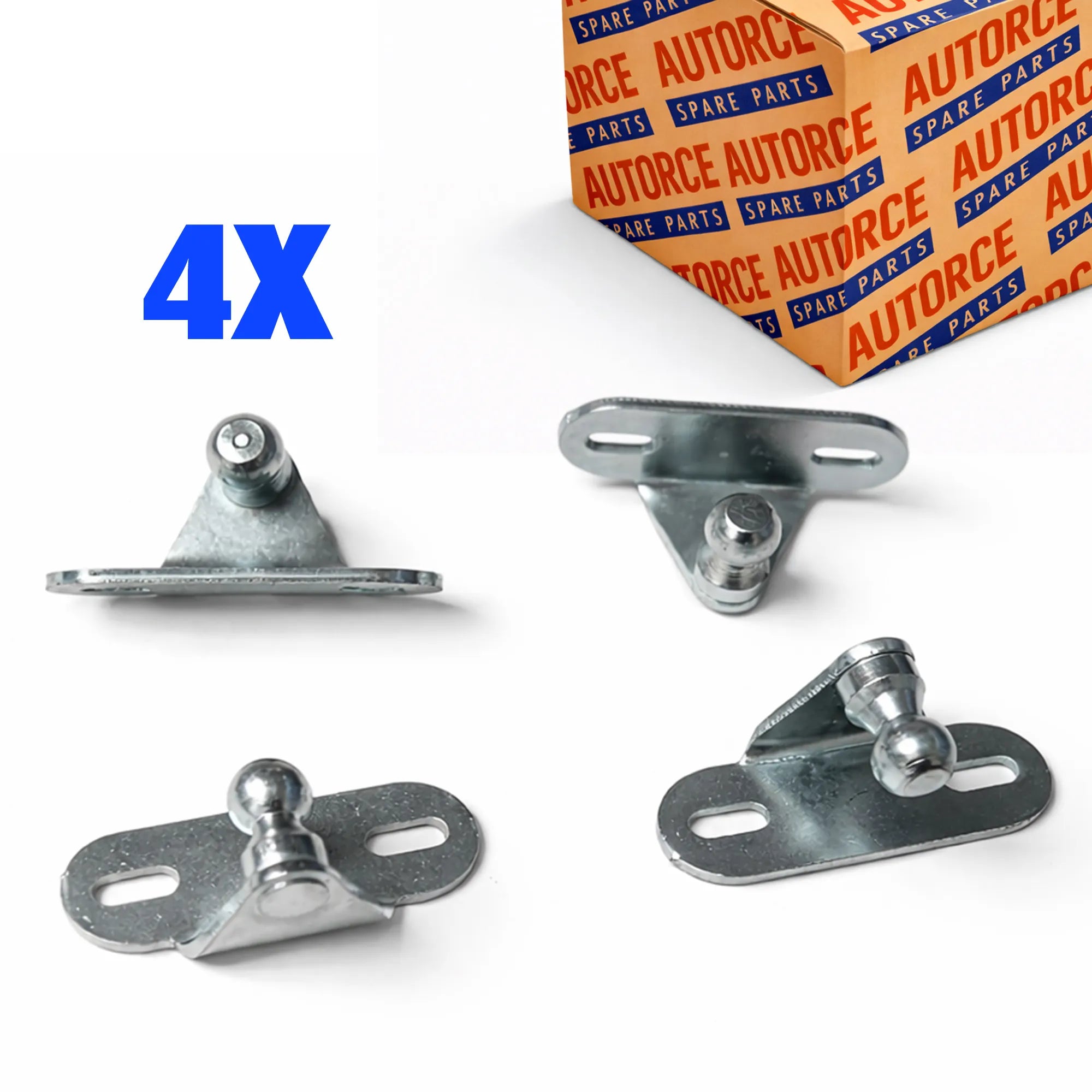

- 4x L mounting brackets
- M6 threaded 10mm ball studs
Where it’s used
- Overhead kitchen cupboard doors
- Lift-up wall cabinets and storage cupboards
- Utility room/laundry room wall units
- Compact DIY cabinets and lid-support projects
Installation & fitment note
Fitment depends on door weight, hinge type and mounting position. If the struts are too strong, lightweight doors may spring open, and strain hinges; if too weak, the door may not stay fully open. If you’re unsure, message us with your door size, estimated weight and a photo of the mounting area for guidance.
