Heavy Duty Gas Strut Ball Joint Mounting Brackets – 3mm Steel (M6 & M8, 2 Pack)
This 2-piece set includes two identical ball joint mounting brackets, designed for gas struts using standard M6 and M8 ball joint (ball stud) connections. Both brackets are fully interchangeable and can be installed in any orientation.
Manufactured from 3mm thick steel, these heavy-duty brackets offer superior strength and durability compared to standard 1.5mm or 2mm alternatives. The reinforced 90° angled design ensures reliable performance in high-load applications.

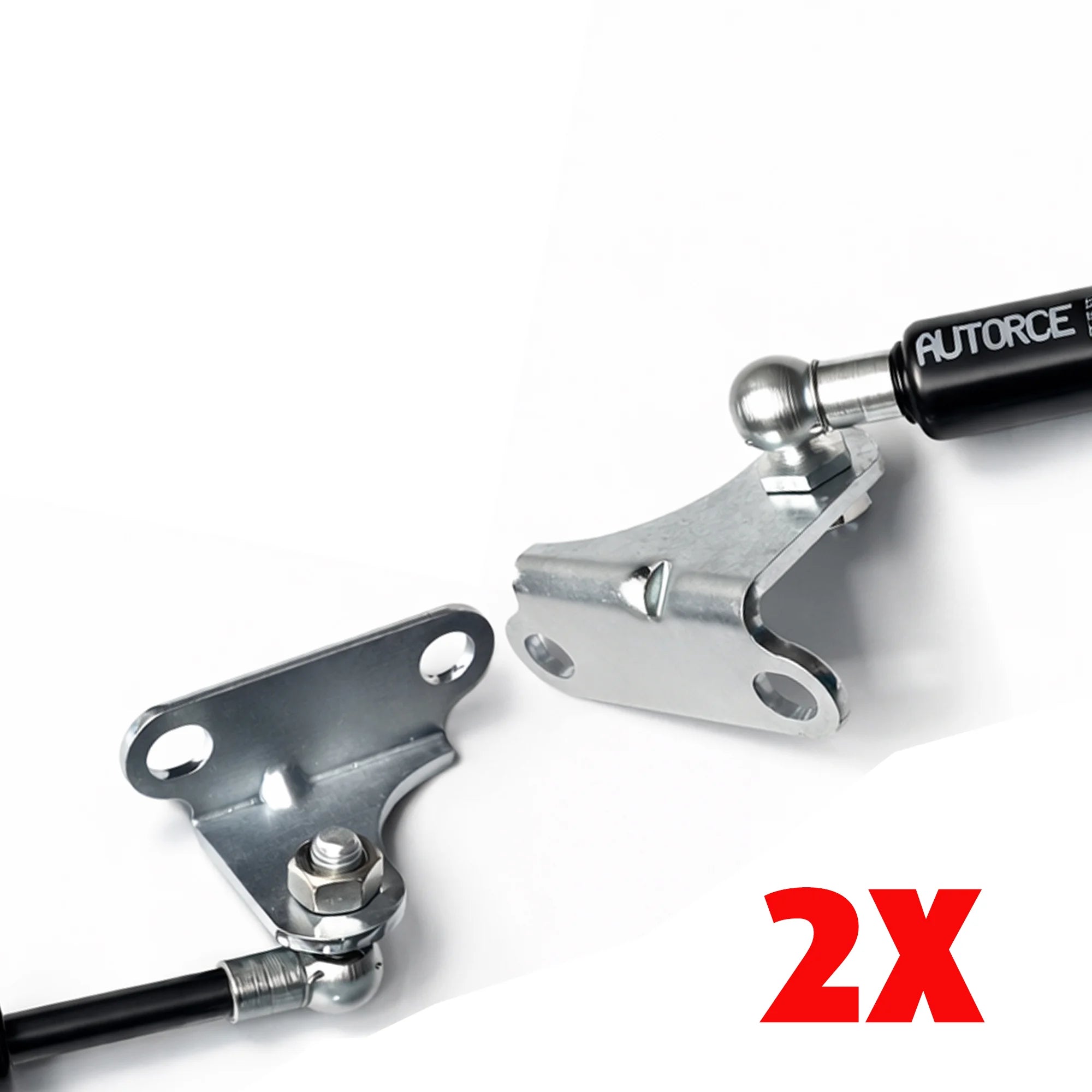

Ideal for use on bonnets, boot lids, tailgates, hatches, marine covers, storage lids and custom conversion projects where strength, reliability and long service life are required.
Key Features
-
Universal Fit: Compatible with both M6 and M8 ball joint (ball stud) gas struts.
-
Identical Brackets: No left or right orientation – both brackets are the same.
-
Heavy Duty Construction: 3mm thick steel resists bending and deformation under load.
-
Reinforced Design: Strengthened embossing increases rigidity at stress points.
-
Corrosion Resistant: Zinc-plated finish provides protection against rust and weather exposure.
Technical Specifications
-
Material Thickness: 3.00 mm (Heavy Duty)
-
Mounting Angle: 90°
-
Ball Stud Compatibility: M6 and M8 ball joint fittings
-
Base Fixing Hole Diameter: 8.35 mm
-
Base Hole Centre Distance: 45.37 mm
-
Total Height: 62.64 mm
-
Finish: Zinc Plated Steel
What’s Included

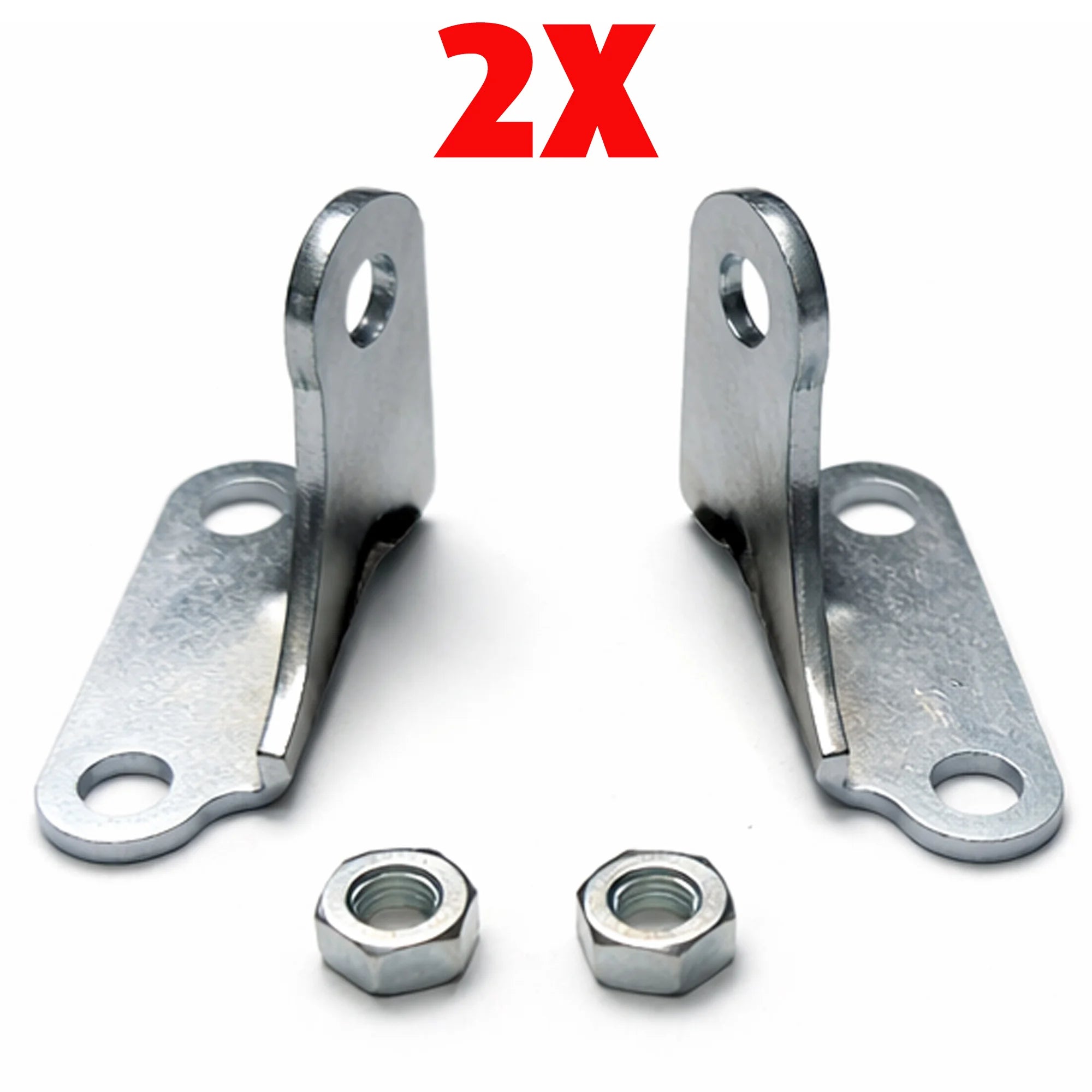

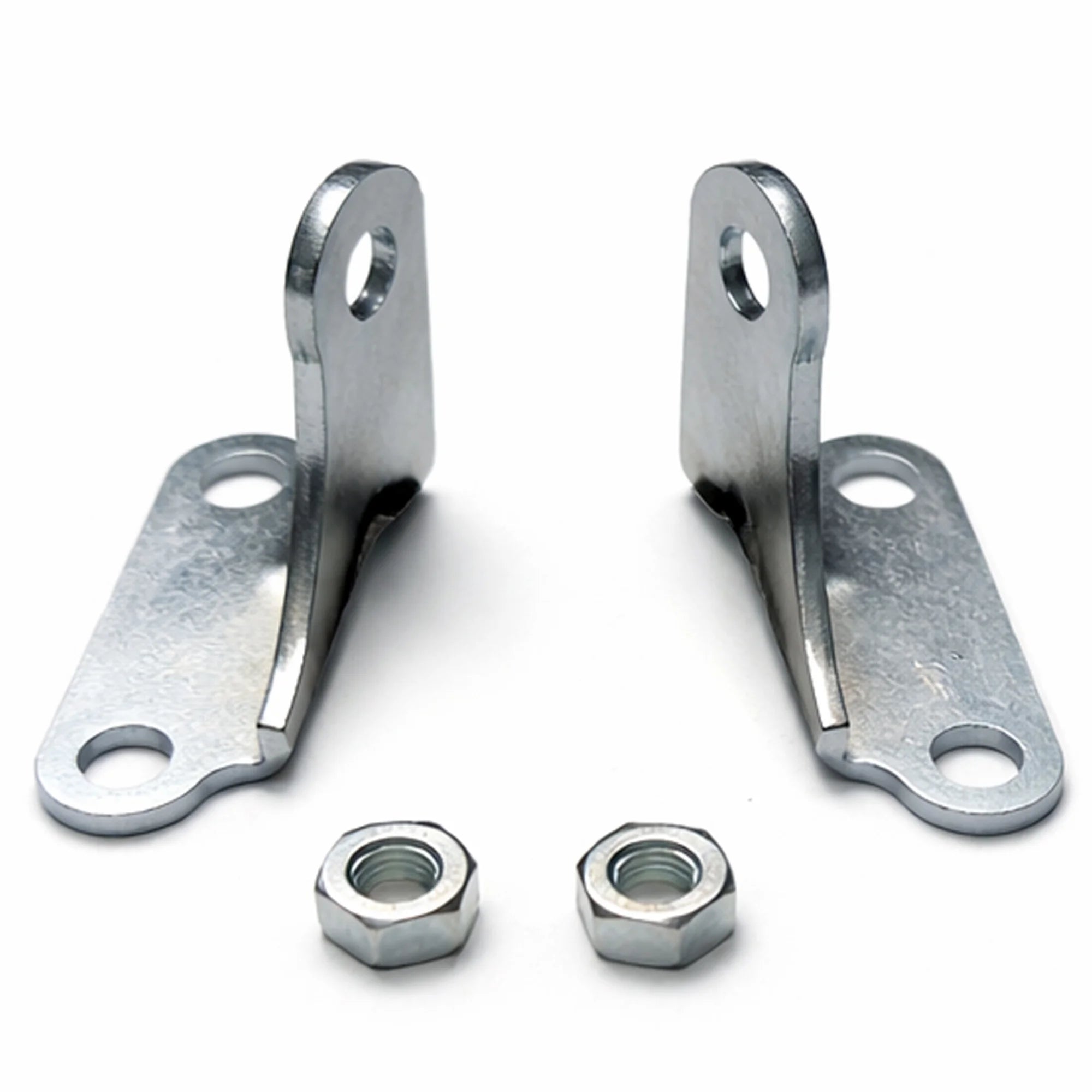

- 2 × Ball Joint Mounting Brackets (Steel)
- 2 × Locking Nuts

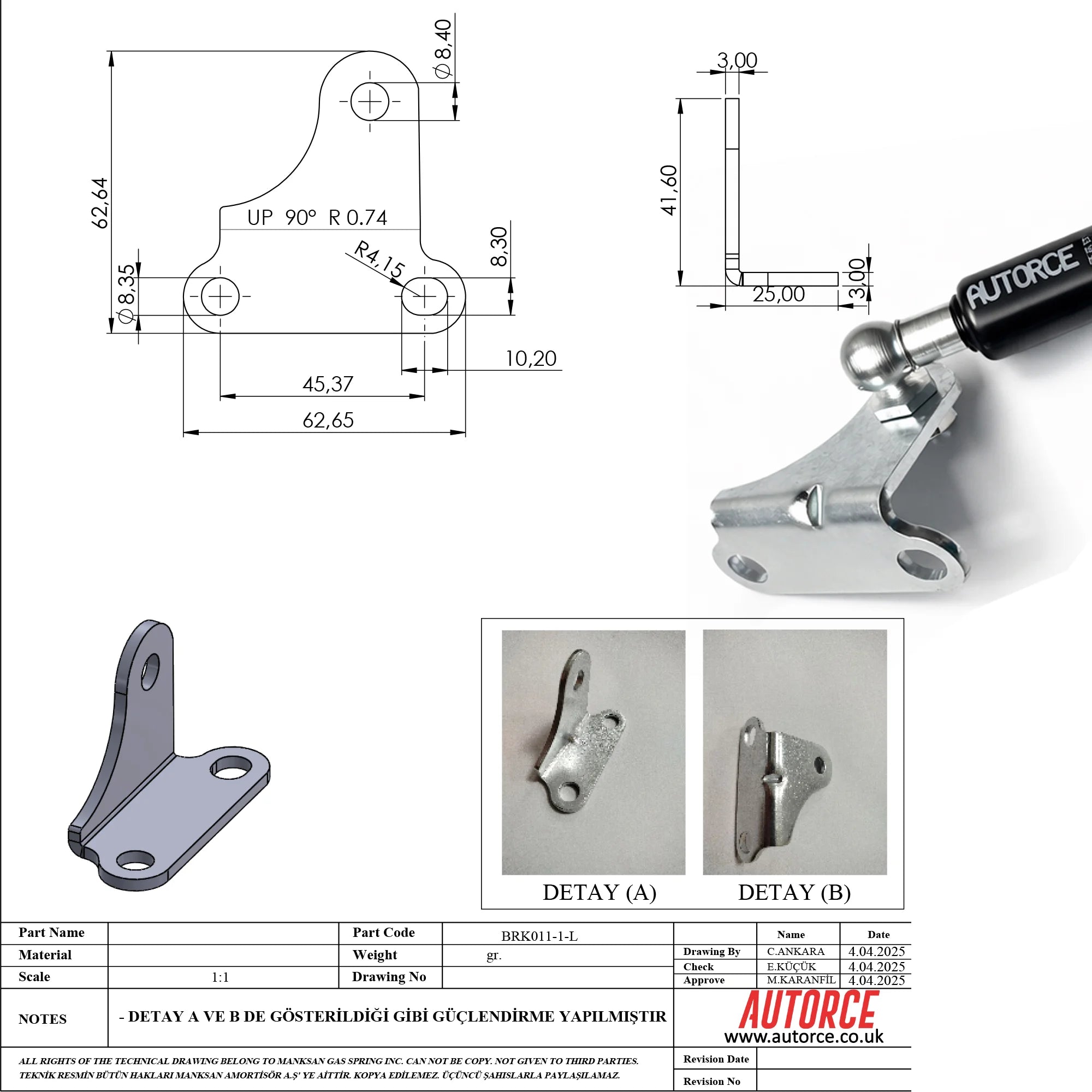

⚠️ Note: Ball studs (pins) are NOT included. Please ensure compatibility with your gas struts by reviewing the technical drawings and measurements in the image gallery before ordering.
