Indoor Storage Chest Gas Struts – 400mm 200N Pair – 10mm Ball Socket – 2x L + 2x Flat Brackets
✓ IN STOCK - SHIPS TODAY
-
Force Rating: 200N per strut (400N total support)
-
Extended Length: 400mm
-
End Fitting: 10mm Ball Socket (M6 Threaded Ball Stud)
-
Ball Diameter: 10mm Snap-On Type
-
Quantity: Supplied as a matched pair (2 gas struts)
-
Bracket Kit: 2x L Brackets + 2x Flat Mounting Brackets Included
Suitable Applications
Engineered for indoor lid support where a clean, low-profile bracket setup is preferred, including:
- Indoor storage chests
- Toy boxes
- Bedroom storage benches
- Hallway blanket boxes
- Living room storage chests
- Medium-depth reinforced lid applications (indoor)
Recommended Lid Depth (hinge to front edge): 500–800mm
Suitable Lid Weight (lid only): 20–36kg (when using two struts)
Recommended Lid Weight & Installation Guidance
Force Output: 200N per strut (400N per pair)
Designed to assist heavier indoor lids weighing approximately 20–36kg when mounted correctly. Actual lifting performance depends on hinge placement, lid material and installation geometry.
Recommended Mounting Setup:
- Install one strut on each side of the lid
- Fix the upper bracket approx. 20–30% down from the hinge
- Mount the lower bracket approx. 80–120mm below the top inner frame edge
- Ensure slight compression when the lid is fully closed to maintain preload tension
⚠ If lid weight exceeds 36kg, a higher force rating may be required.
⚠ For lids significantly lighter than 20kg, the struts may feel too strong.
🔧 Mounting Bracket Type – 2x L + 2x Flat Bracket Kit

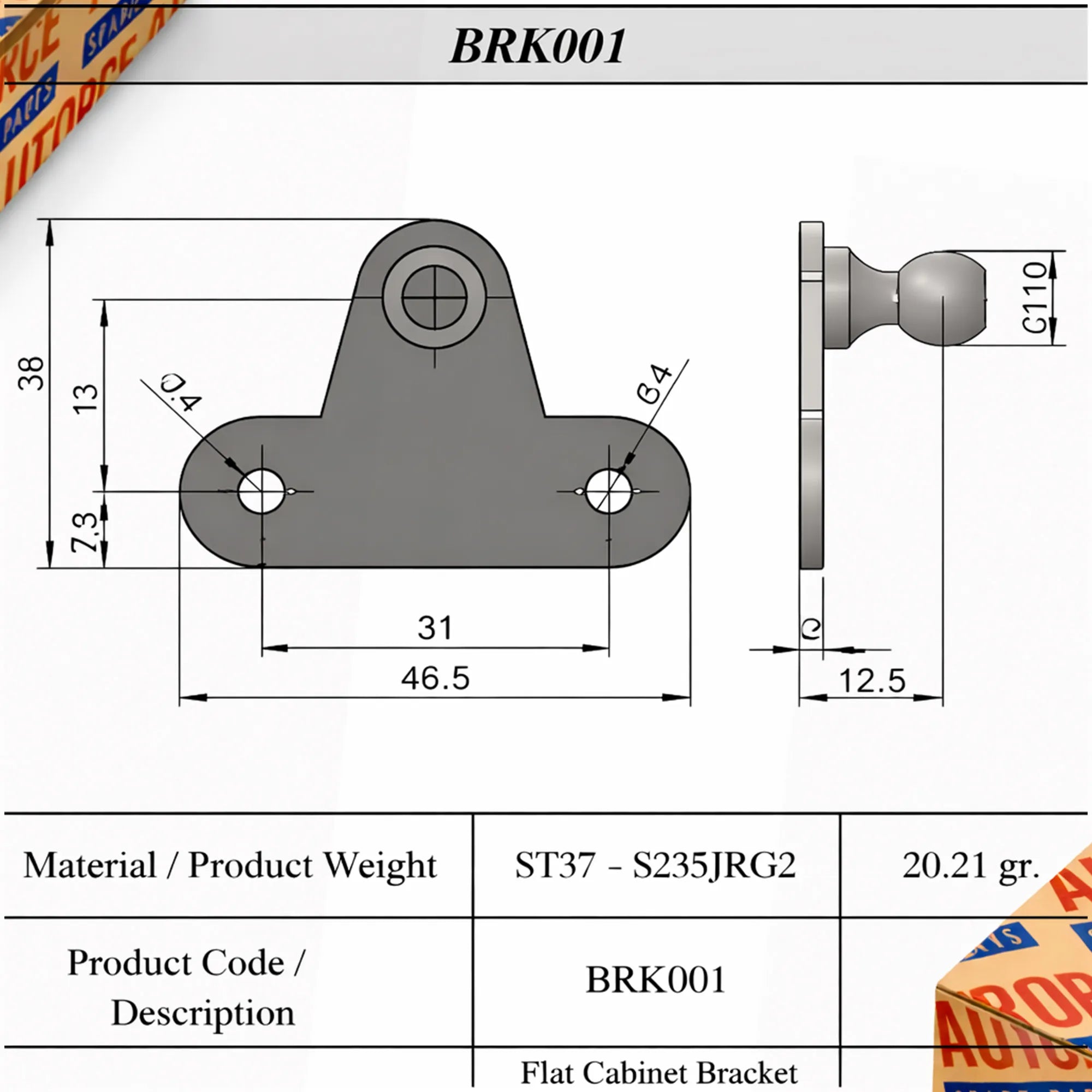

This kit includes 2x heavy-duty L brackets (90° angle brackets) for the chest side and 2x flat brackets for the lid side.
Recommended for:
- Indoor chests with standard flat lids
- Wooden toy boxes and storage benches
- MDF or composite panel lid constructions (indoor use)
- Storage chests with limited internal clearance
- Domestic indoor installations where a lower-profile lid bracket is preferred
The L brackets provide the correct mounting offset on the chest wall, while the flat brackets create a lower-profile pivot point on the lid for smoother articulation and a cleaner internal fit.
⚠️ For thick-framed lids or installations requiring additional pivot height, a full 4x L bracket kit may be more suitable.
💡 Not Sure Which to Choose?
If your chest has a thick-framed lid or requires extra offset → choose 4x L Brackets.
If your lid is flat and standard construction → choose 2x L + 2x Flat Combination.

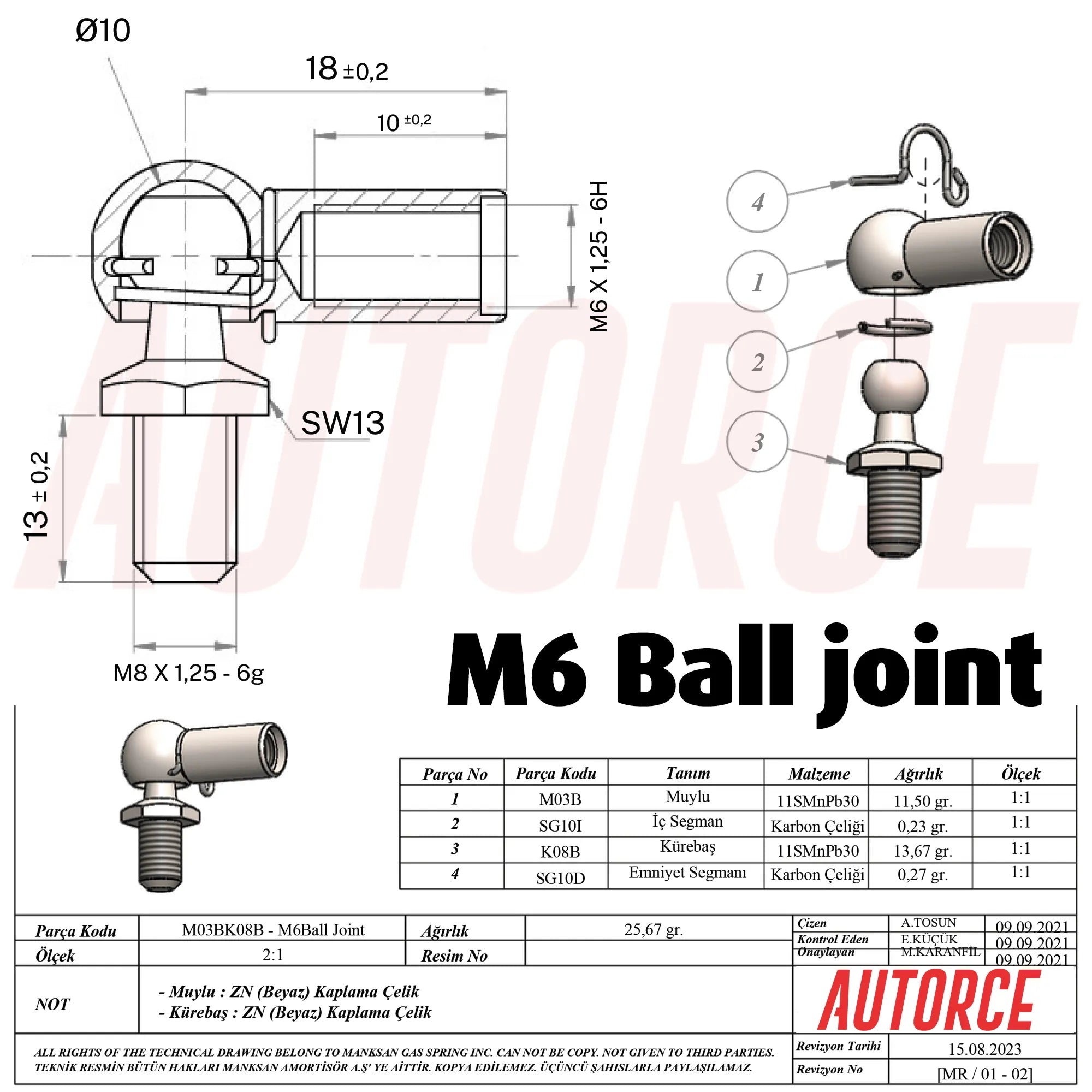

Secure 10mm Ball Socket System
Each 400mm 200N gas strut features a 10mm snap-on ball socket end designed to connect securely to the included M6 threaded ball studs.
- Allows smooth pivot movement
- Reduces stress on fixings
- Improves long-term durability
- Maintains stable heavy-lid lifting performance
Smooth & Controlled Heavy-Duty Lid Assistance
With a combined 400N lifting support, this gas strut pair delivers strong assisted opening and controlled closing, helping prevent sudden lid drops while maintaining stability for heavier indoor storage chest lids.
Key Features
- ✓ 10mm snap-fit ball socket connection
- ✓ 2x L + 2x Flat bracket mounting system
- ✓ Clean indoor installation & low-profile lid bracket option
- ✓ Balanced heavy-duty lifting support (pair supplied)
- ✓ Designed specifically for indoor storage chests and toy box lids
- ✓ Reliable, stable lifting performance for heavier lids
For optimal results, confirm lid dimensions, weight and mounting position before installation.
🛡️ AUTORCE Customer Assurance
- ✓ Quality-inspected components
- ✓ 30-Day Returns (unused condition)
- ✓ Fast UK Dispatch
- ✓ Secure Checkout
- ✓ UK-Based Customer Support
Order today and upgrade your indoor storage chest with powerful, reliable 400mm 200N lift support.
