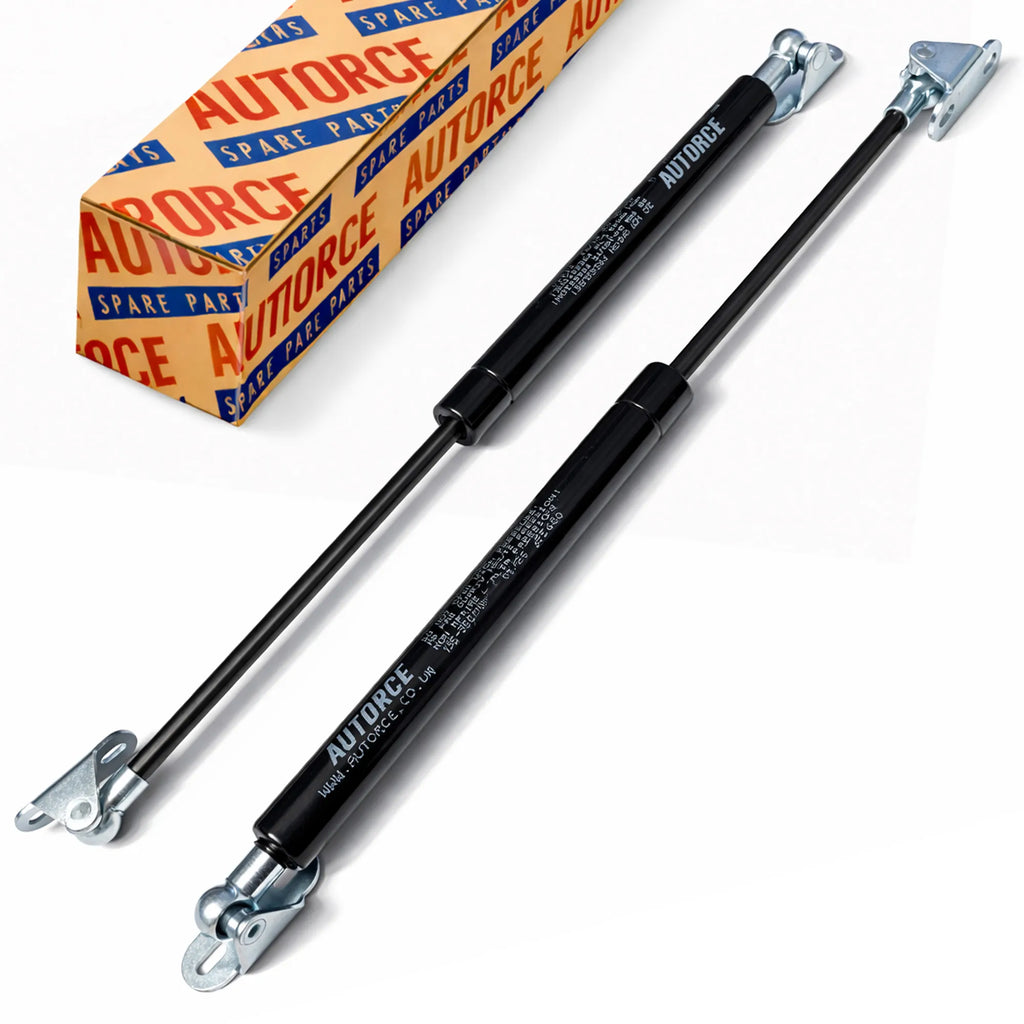

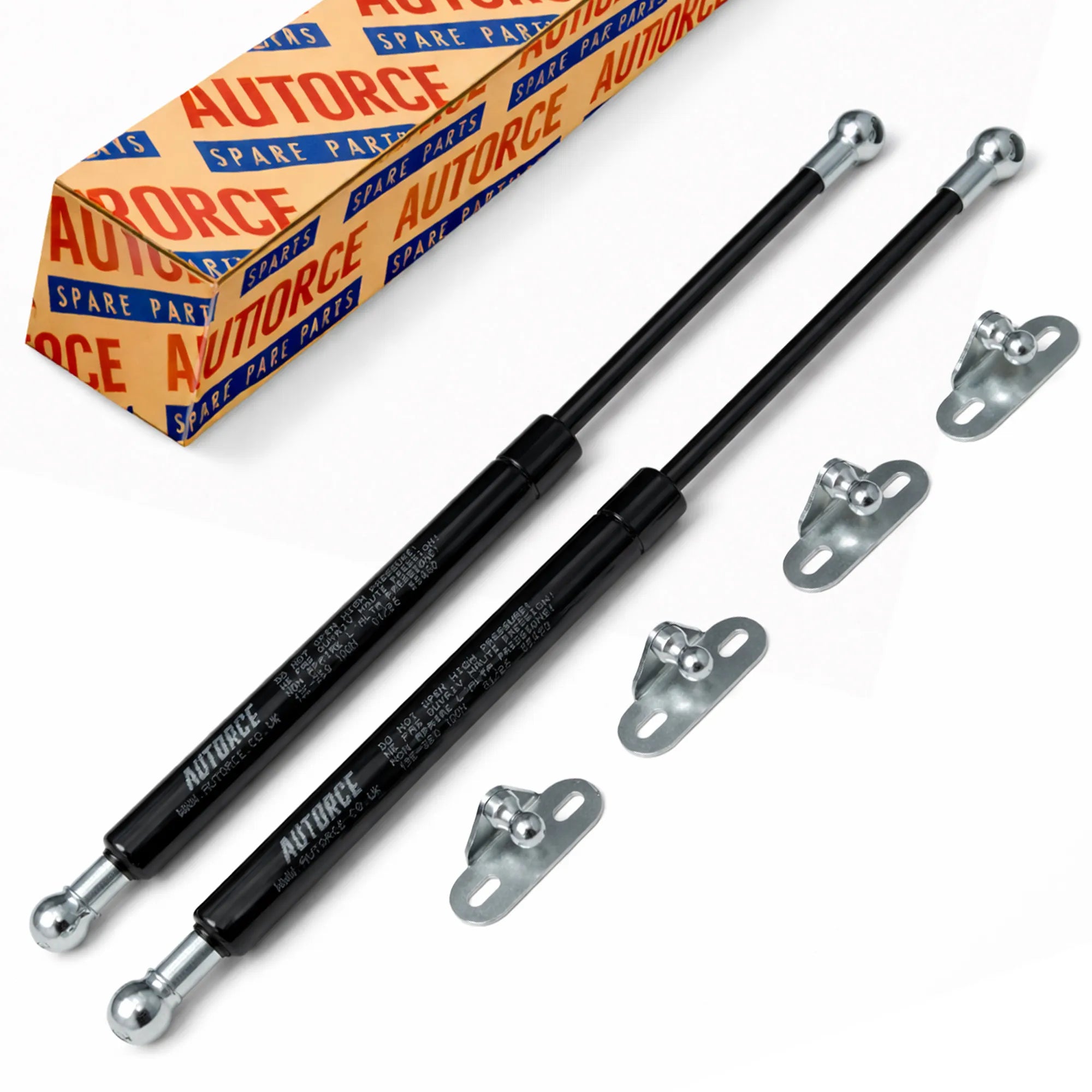

300mm 300N - Patio Storage Box Gas Struts (Pair) 10mm Ball Socket Ends with L Brackets
✓ IN STOCK - SHIPS TODAY
-
Force: 300N per strut (600N total support)
-
Extended Length: 300mm
-
End Type: 10mm Ball Socket (M6 Thread)
-
Ball Size: 10mm (snap-on)
-
Quantity: Supplied as a matched pair (2 gas struts)
-
Brackets: Heavy-duty L brackets included
Suitable For
Designed for heavy-duty patio storage boxes, garden cushion chests and outdoor deck boxes where a longer strut length is required for the lid geometry and opening angle, and stronger lift support is needed.
-
Recommended Lid Depth (hinge to front edge): 400–600mm
-
Suitable Lid Weight (lid only): approx. 30–54kg (when using two struts)
Recommended Lid Weight & Installation Guidance
Force Rating: 300N per strut (600N total per pair)
Recommended Lid Weight: Suitable for lids approximately 30–54kg when installed correctly. Actual lifting performance depends on hinge position and mounting geometry.
Recommended Mounting Position:
- Install one strut on each side of the lid
- Mount approximately 20–30% down from the hinge on the lid panel
- Position the lower L bracket around 90–140mm below the top inside edge of the box frame (depending on internal depth)
- Ensure the strut is slightly compressed when fully closed to maintain preload
⚠ If the lid is heavier than 54kg, a higher force rating may be required.
⚠ If the lid is lighter than 30kg, the struts may feel too strong and push the lid upward.

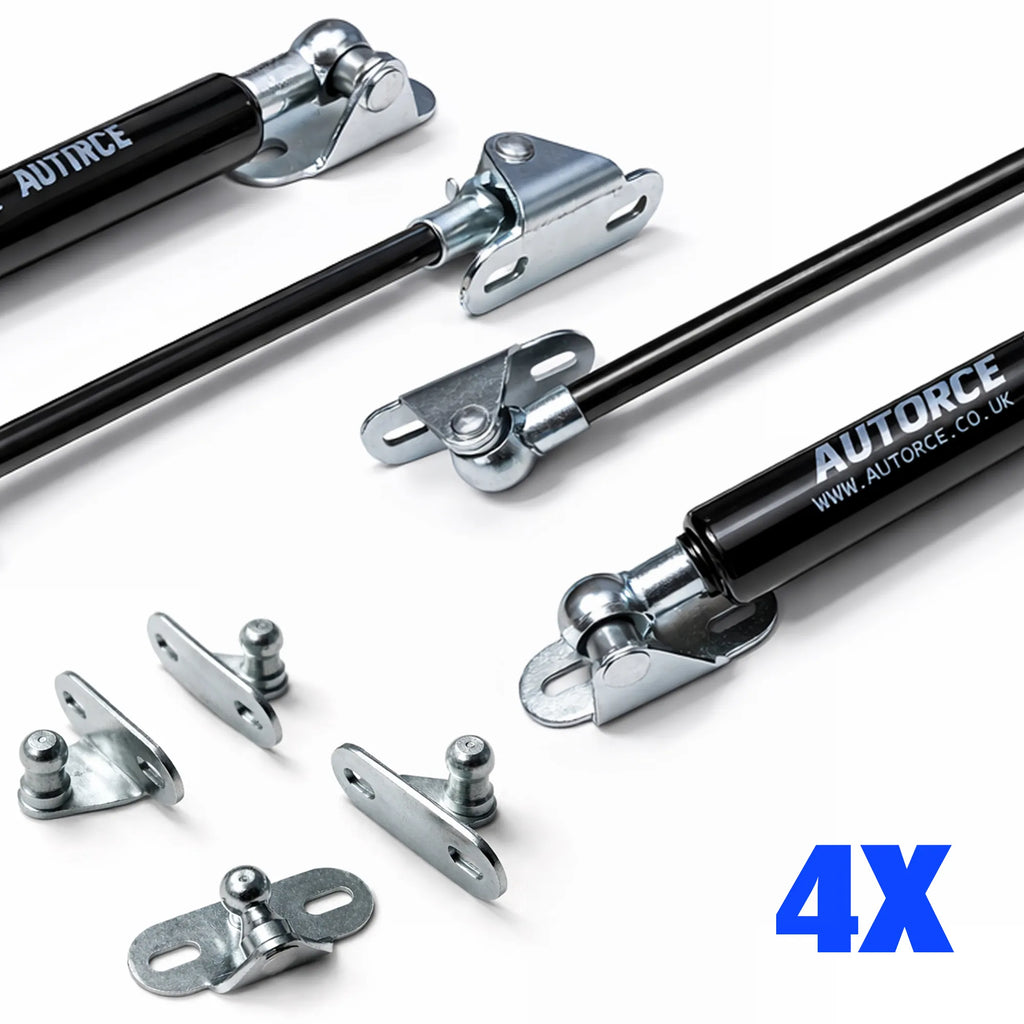

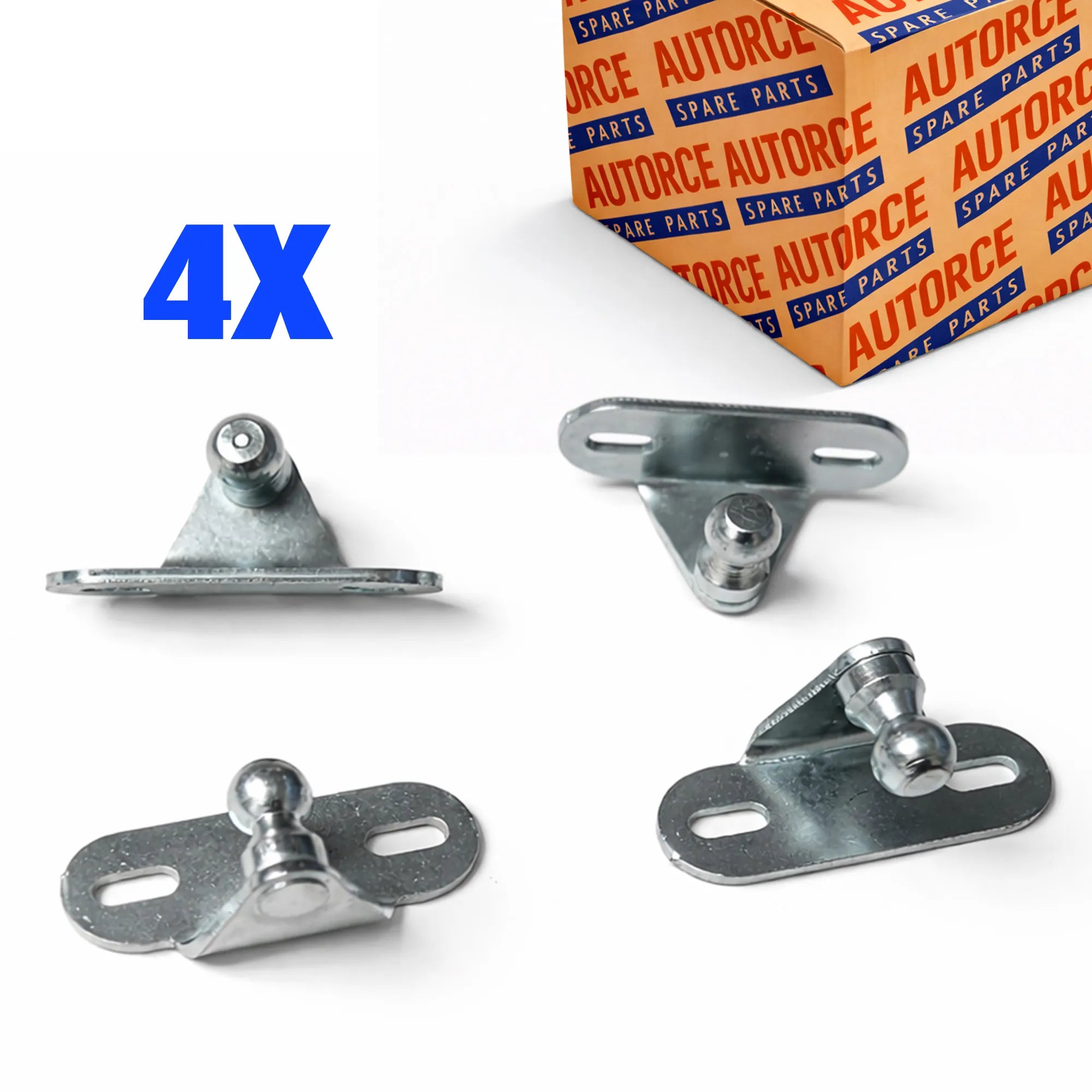

🔧 Mounting Bracket Type – 4x L Bracket Kit
This kit includes 4x heavy-duty L brackets (90° angle brackets) and is recommended for:
- Storage boxes with thick internal frames
- Patio deck boxes with deep side walls
- Metal storage chests
- Boxes requiring extra mounting offset
- Installations where additional clearance is needed
⚠️ For standard flat-panel lids or minimal internal clearance, a mixed mounting kit (L + Flat brackets) may be more suitable.
💡 Not Sure Which to Choose?
If your box has a thick-framed lid or requires extra offset → choose 4x L Brackets.
If your lid is flat and standard construction → choose 2x L + 2x Flat Combination.

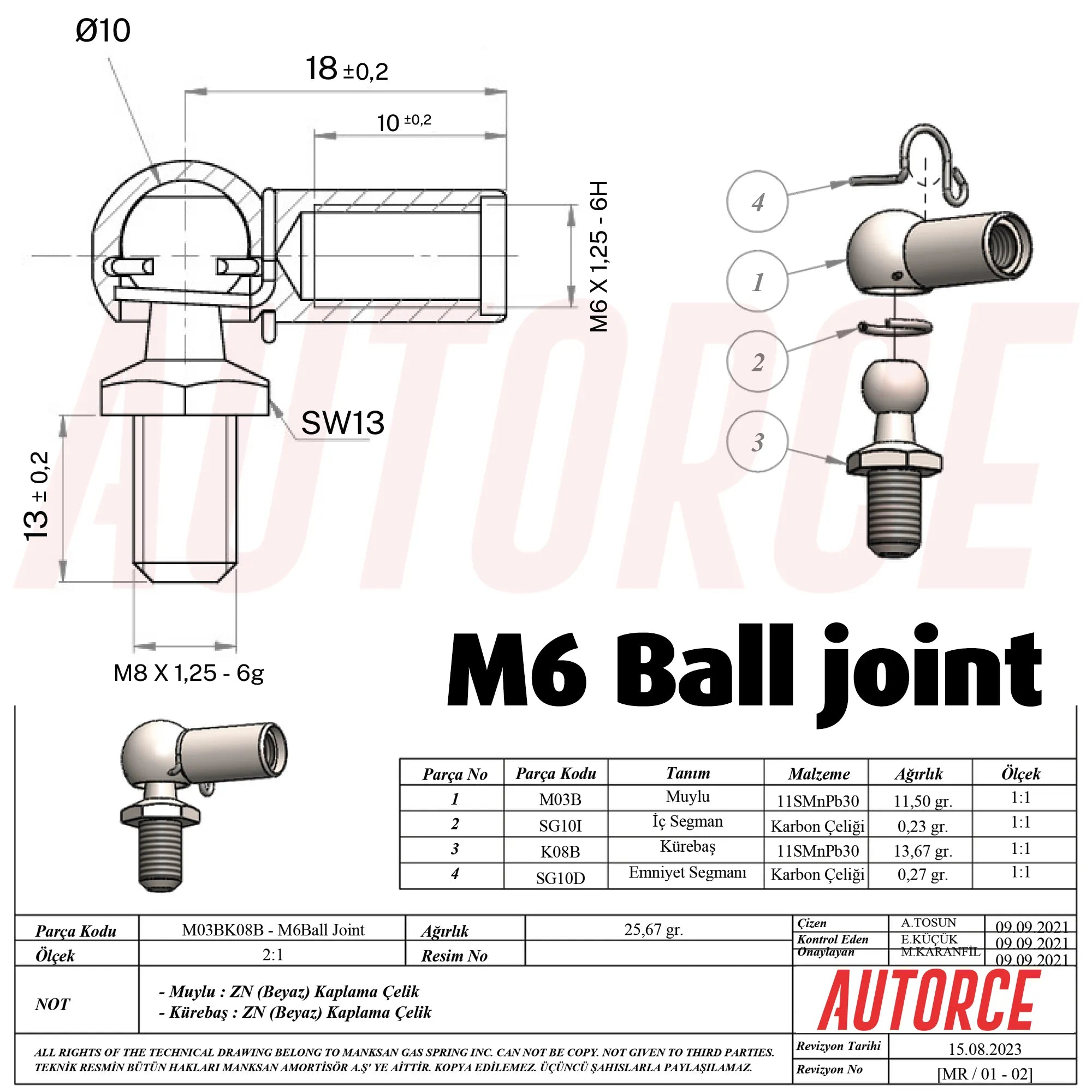

Secure 10mm Ball Socket System
This 300mm 300N gas strut pair features a 10mm ball socket end designed to snap securely onto the included L brackets. The ball-and-socket connection allows smooth articulation during opening and closing, helping reduce stress on mounting points and improving durability.
Smooth and Controlled Lid Support
With 300N force per strut (600N combined), these patio storage box gas struts provide strong, controlled lifting assistance and help prevent sudden lid drops, improving safety and ease of access to your storage box contents.
Key Features
- 10mm ball socket snap-on connection
- Heavy-duty steel L brackets included
- Corrosion-resistant finish suitable for outdoor environments
- Matched pair for balanced lifting on both sides
- Ideal replacement for worn or broken patio lid supports
- Designed specifically for garden storage box lids
For optimal performance, ensure correct mounting position and compatibility with your lid size and weight before installation.
🛡️ AUTORCE Customer Assurance
- ✓ Quality-tested components
- ✓ 30-Day Returns on unused items
- ✓ Fast UK Dispatch
- ✓ Secure checkout & UK-based support
Order Today and restore smooth, reliable lid operation to your patio storage box.
