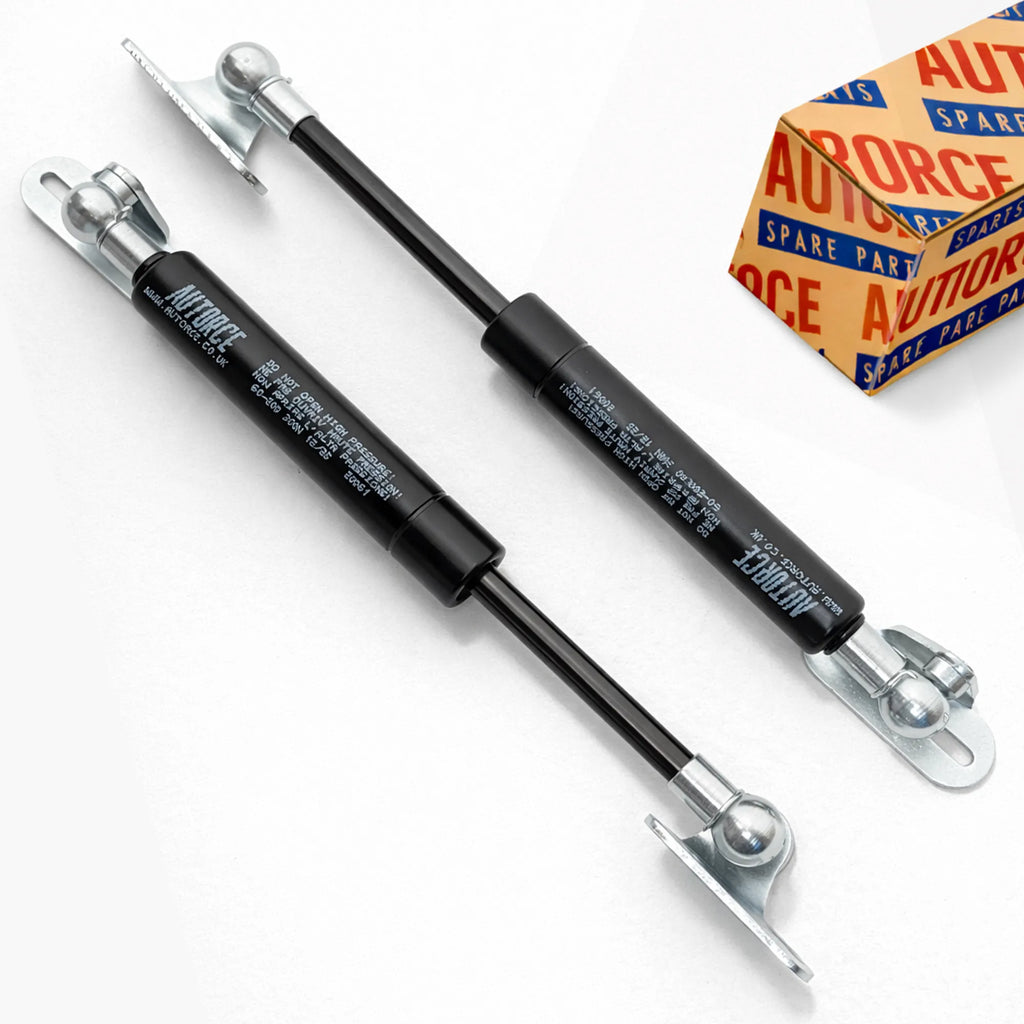

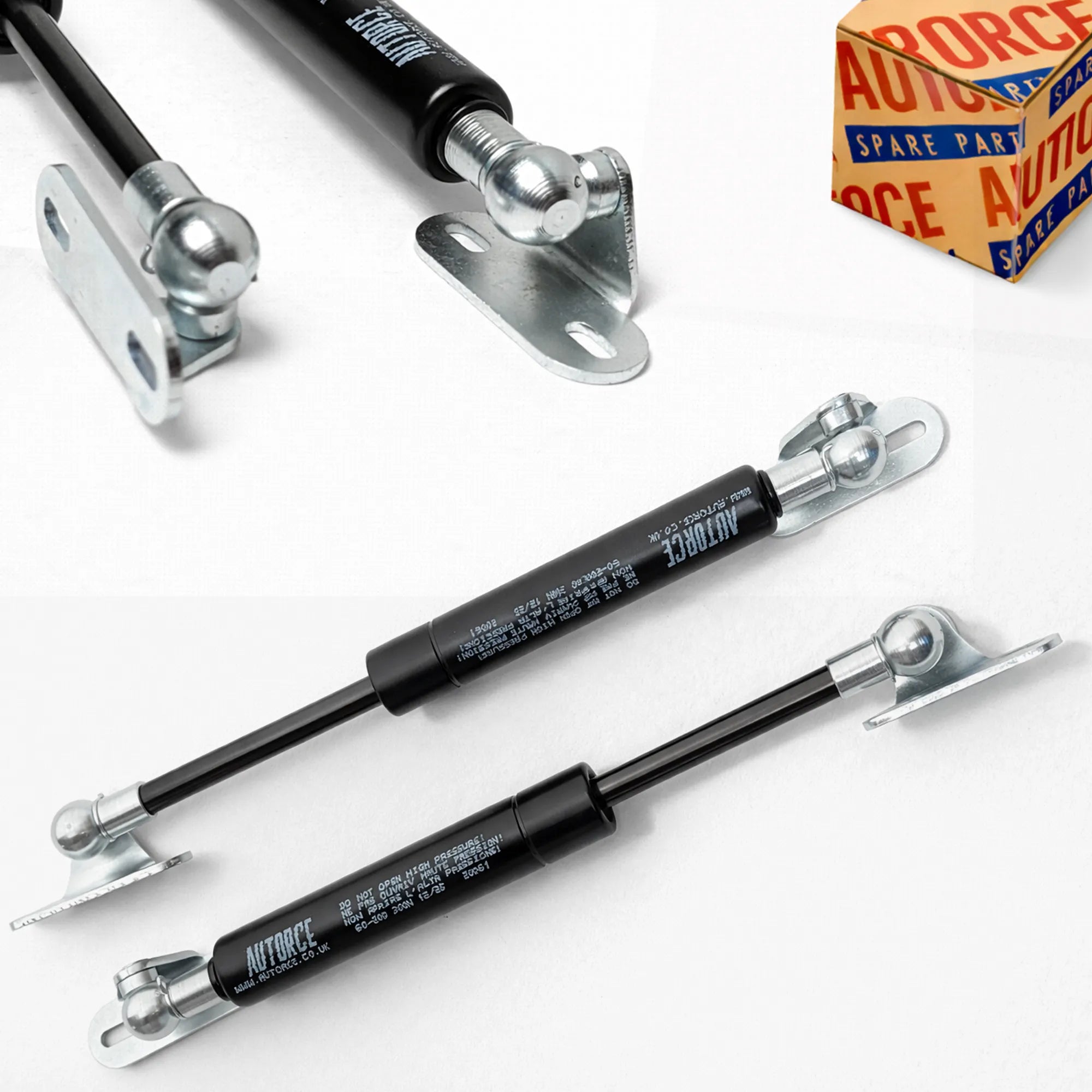

Soft Close Lid Struts Pair 200mm 100N – 10mm Ball Socket With 4x L Mounting Brackets
✓ IN STOCK - FAST UK DISPATCH
Built for UK storage furniture and hinged box lids, this configuration is designed to deliver steadier assisted opening with a more controlled closing feel.
This helps reduce sudden drops, limits strain on hinges and improves day-to-day safety when opening or closing the lid.
Technical Details
-
Force: 100N per strut (200N total support per pair)
-
Open Length: 200mm
-
Stroke: 70mm
-
End Type: 10mm Ball Socket
-

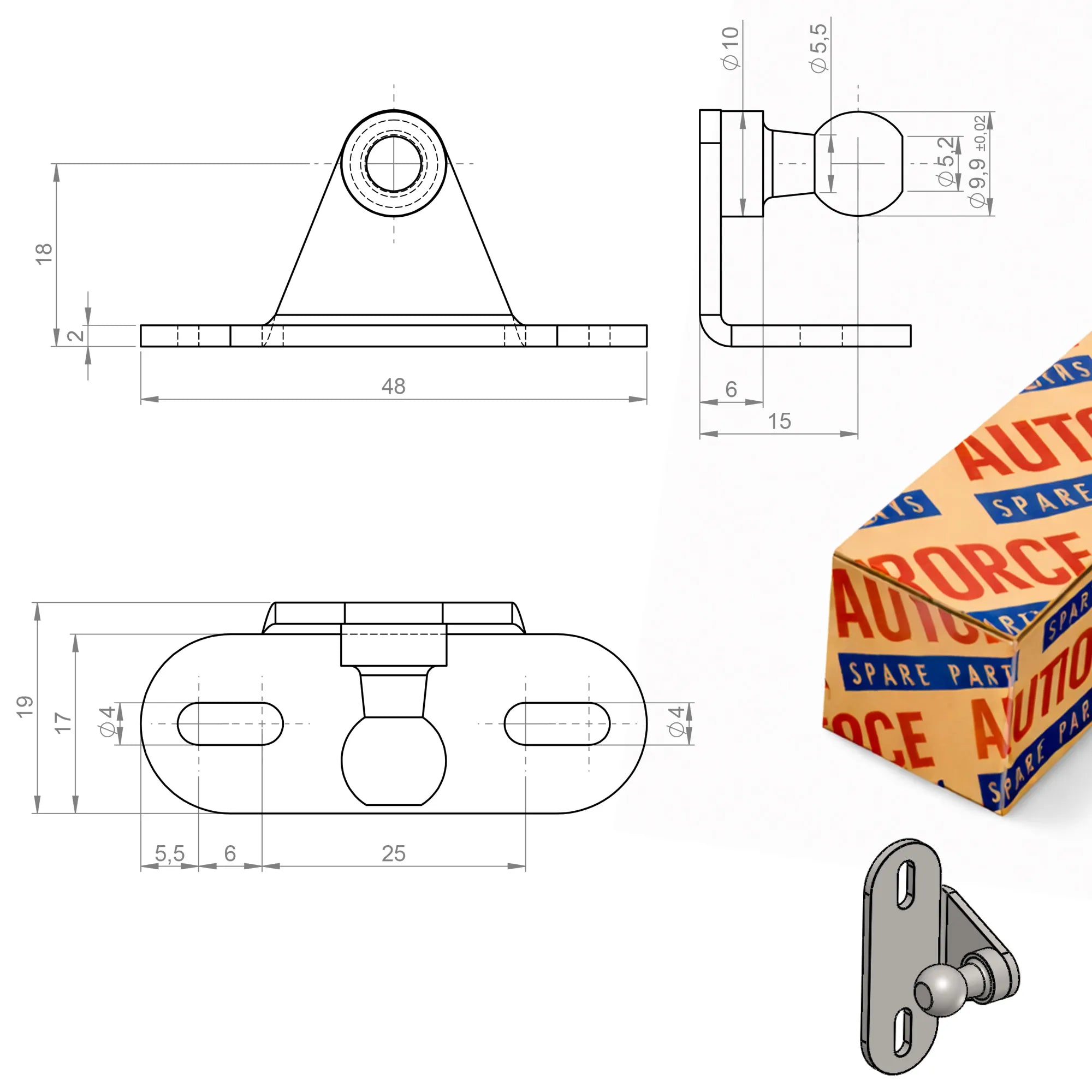

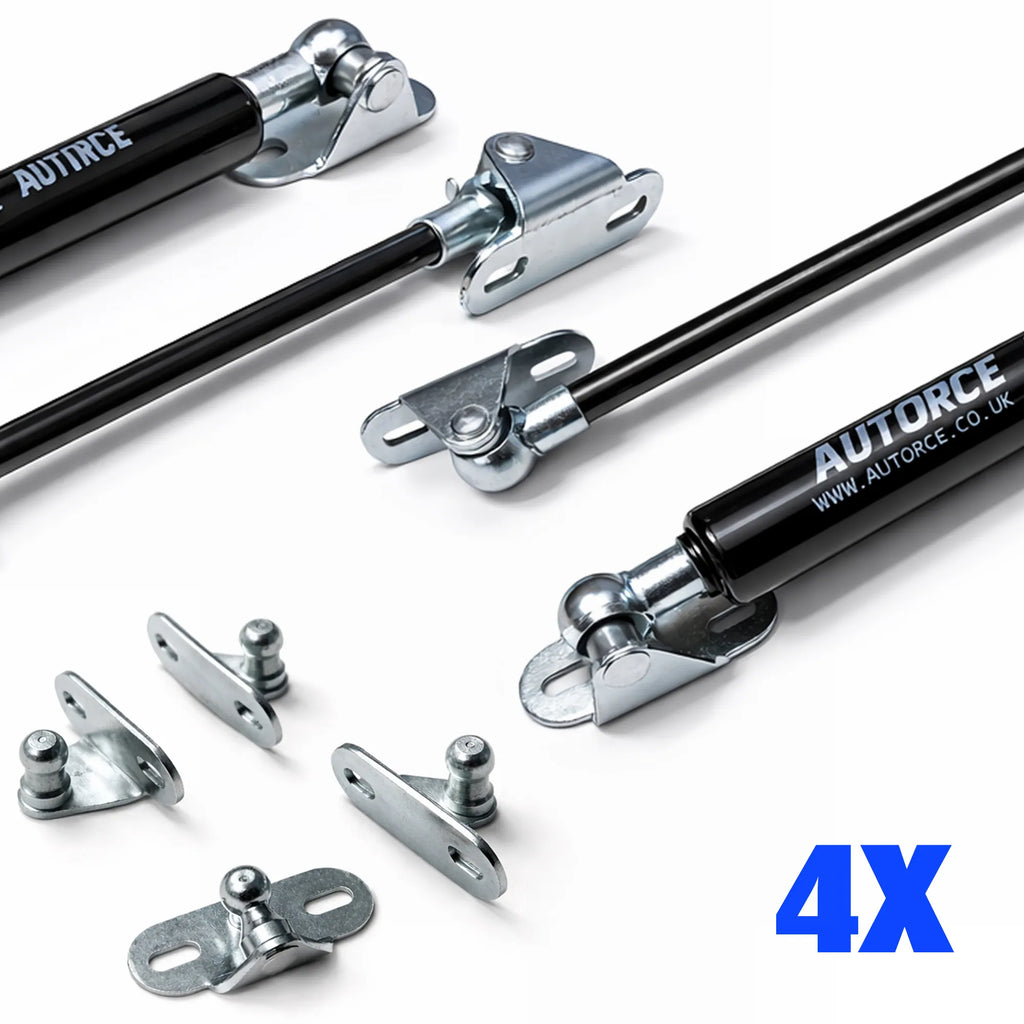

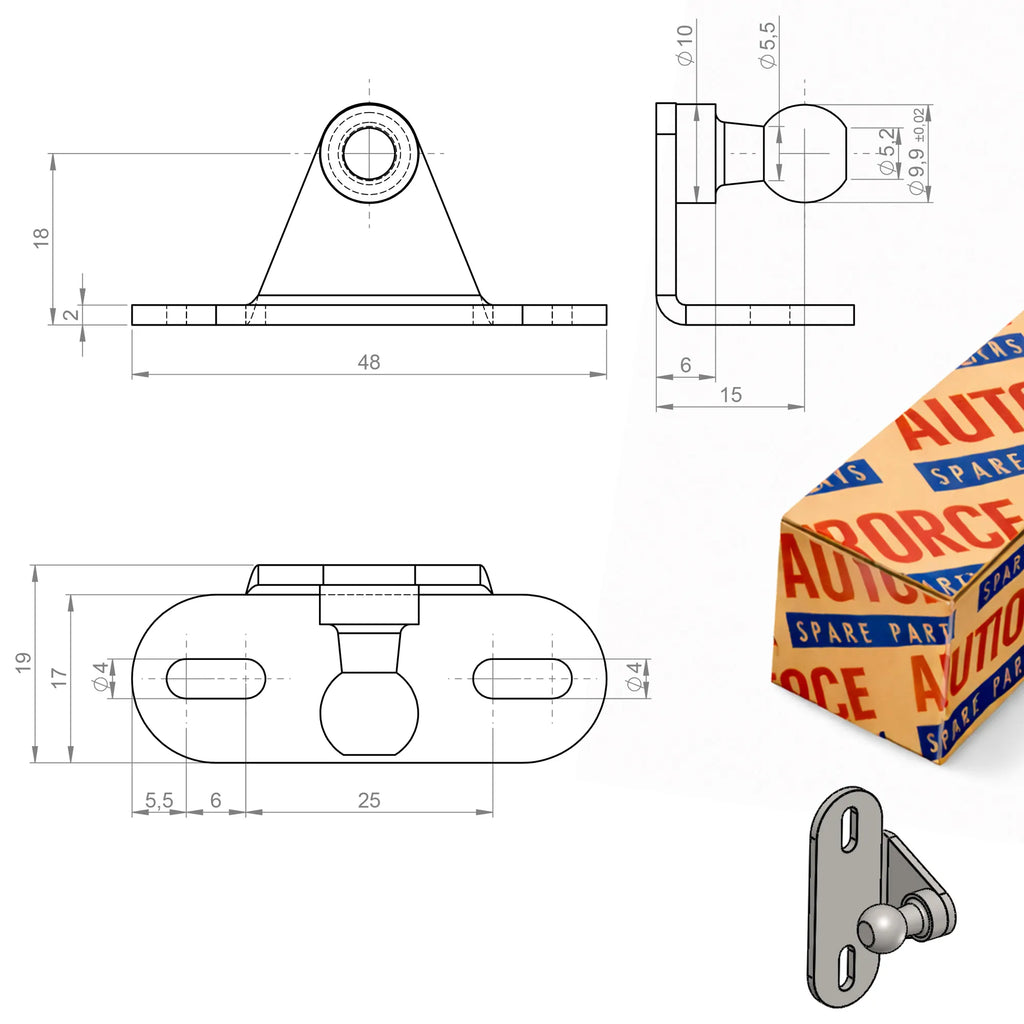

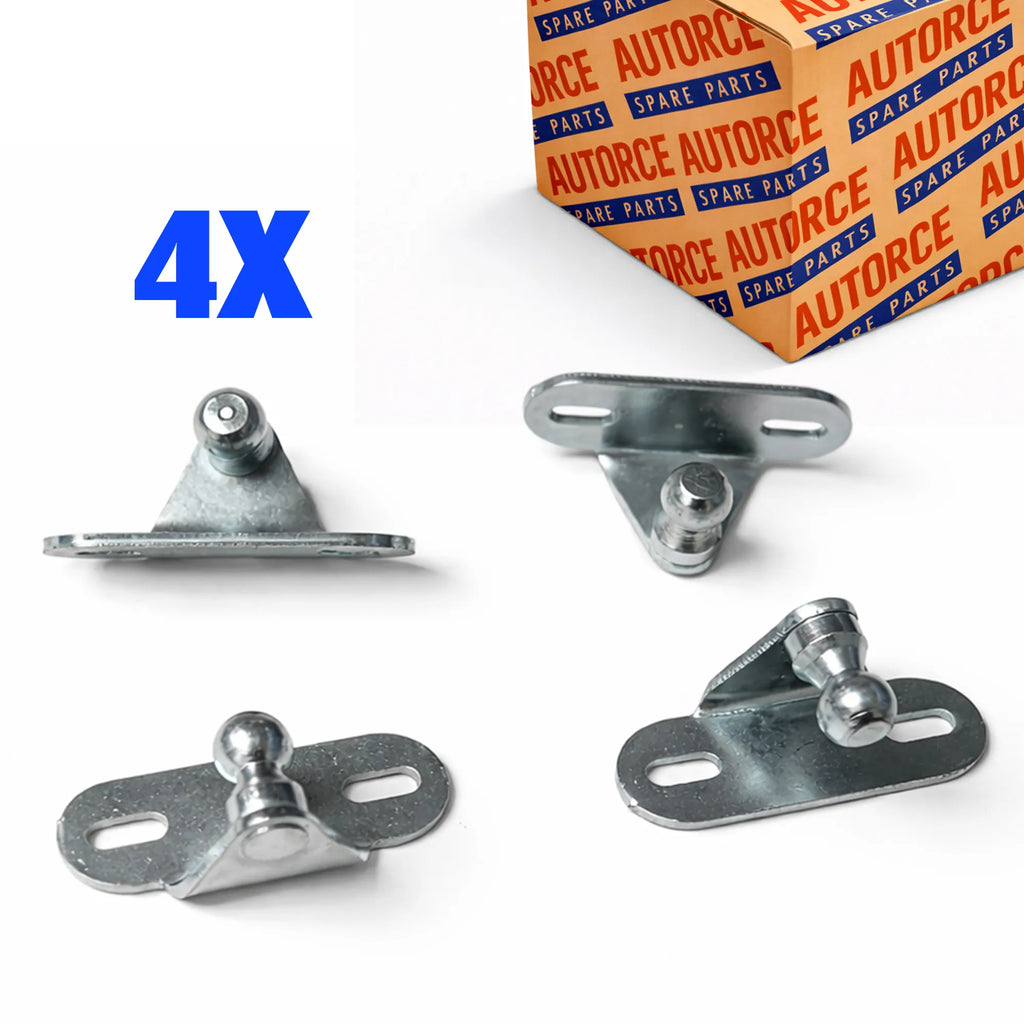

Bracket Kit: 4x L Mounting Brackets
-
Recommended Lid Depth: 200–400mm
-
Suitable Lid Weight (lid only): 5–18kg
Mounting & Use
A full L bracket kit is well-suited to side-wall installations where stronger offset mounting and robust alignment are needed.
Fit one strut to each side, place the upper fixing around 20–30% from the hinge line, and keep slight compression when closed to maintain preload.
- Install one strut on each side of the lid
- Check that both sides are mounted evenly for balanced lift support
- Confirm the lid closes with slight compression remaining in the strut
Application Guidance
Typical applications include toy boxes, storage chests, bench seats with storage, tool boxes and furniture lids where controlled movement matters.
- Storage chest lids
- Toy box lids
- Bench storage lids
- Furniture or utility box lids
Compatibility Note
Compatibility note: always select by lid weight, lid depth, hinge position and internal mounting geometry. Box contents must not be included in the lid weight calculation.
This 200mm 100N configuration is intended for customers who need a soft close lid support solution matched to the correct lid size and force range for UK use.
