Tool Box Storage Lid Gas Struts Pair – 550mm 500N – 10mm Ball Socket Ends – 4x Heavy Duty L Brackets
✓ IN STOCK - SHIPS TODAY
-
Force: 500N per strut (1000N total pair support)
-
Extended Length: 550mm
-
Stroke: 235mm
-
End Type: 10mm Ball Socket (M6 Thread)
-
Ball Size: 10mm (snap-on)
-
Quantity: Supplied as a matched pair (2 gas struts)
-
Brackets: 4x Heavy-duty L brackets included
Suitable For
Designed for very heavy-duty toolbox and storage box lids, large site boxes, van tool chests and workshop storage trunks requiring maximum lift assistance and stable support.
-
Recommended Lid Depth (hinge to front edge): 700–1100mm
-
Suitable Lid Weight (lid only): 50–90kg (using two struts)
Recommended Lid Weight & Installation Guidance
These 550mm 500N gas struts are suitable for lids approximately 50–90kg when installed correctly. Actual lifting performance depends on hinge position, lid material and mounting geometry.
Recommended Mounting Position
- Install one strut on each side of the lid
- Mount approximately 20–30% down from the hinge on the lid panel
- Position the lower L bracket around 260–460mm below the top inside edge of the box frame (adjust to suit internal depth and clearance)
- Ensure the strut is slightly compressed when fully closed to maintain correct preload tension
⚠ Force guidance: If the lid is heavier than 90kg, a higher force rating may be required. If the lid is lighter than 50kg, the struts may feel overly strong.
🔧 Mounting Bracket Type – 4x L Bracket Kit
This kit includes 4x heavy-duty 90° L brackets and is recommended for:
- Reinforced tool boxes and heavy-duty site boxes
- Deep van tool chests and workshop storage trunks
- Metal or thick timber box frames with strong inner supports
- Hardwood, steel or composite lids
- Installations requiring additional mounting offset or clearance
⚠️ Note: For flat-panel lids or limited internal clearance, a mixed mounting kit (2x L + 2x Flat brackets) may be more suitable.
💡 Not Sure Which to Choose?
- If your toolbox has a thick-framed lid or requires extra offset → choose 4x L Brackets.
- If your lid is flat and standard construction → choose 2x L + 2x Flat Combination.

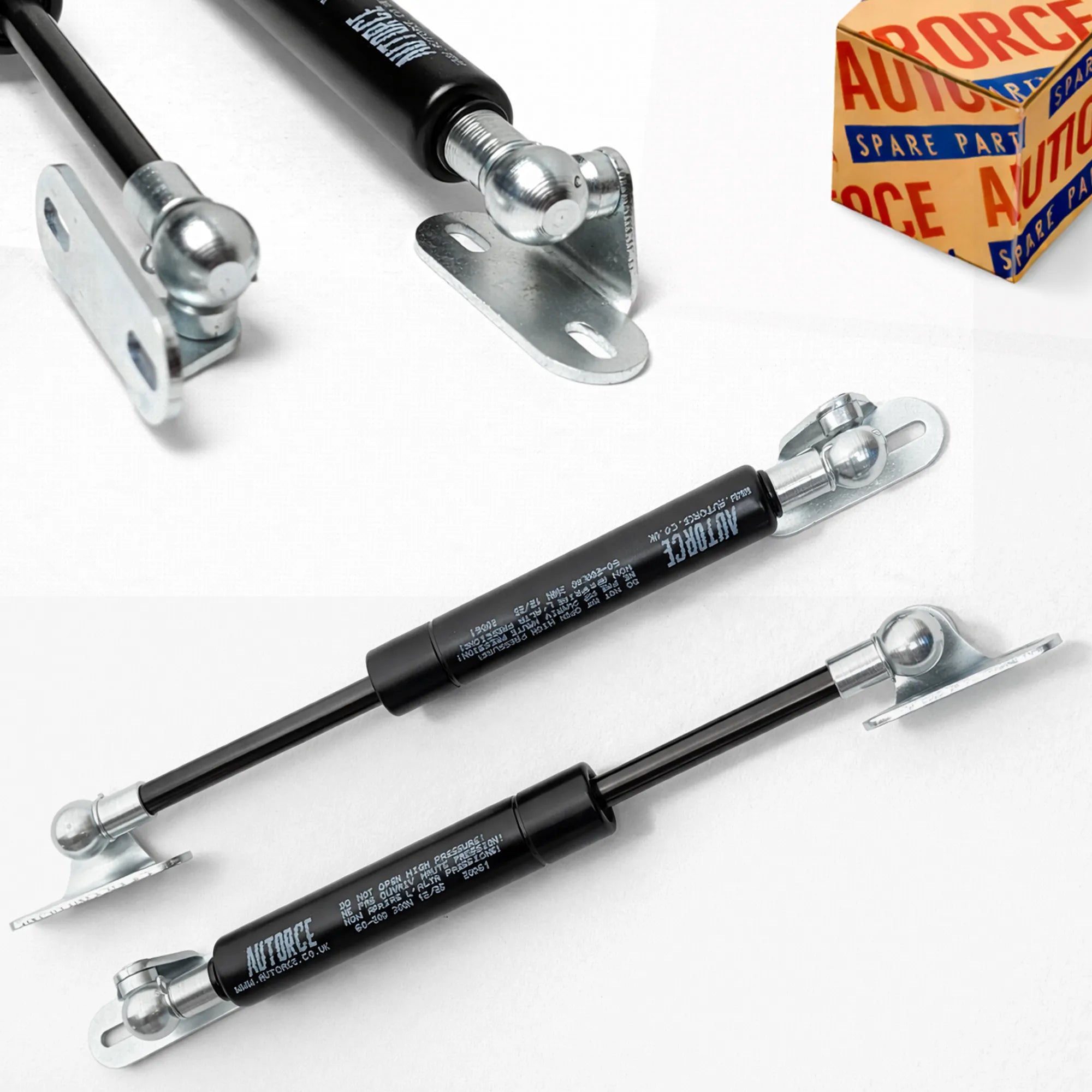

Secure 10mm Ball Socket System
This 550mm 500N gas strut pair features a 10mm ball socket end designed to snap securely onto the included brackets. The ball-and-socket articulation allows smooth movement during opening and closing, reducing stress on mounting points and improving long-term durability.
Smooth and Controlled Heavy-Duty Lid Support
With 500N force per strut (1000N combined), these tool box storage lid gas struts provide powerful lifting assistance and controlled closing performance. Ideal for very heavy lids where reliable, stable support is essential.
- Helps prevent sudden lid drops
- Improves user safety
- Reduces hinge strain
- Extends the toolbox and storage box lifespan
Key Features
- 10mm ball socket snap-on connection
- 4x heavy-duty steel L brackets included
- Durable finish suitable for demanding workshop environments
- Matched pair for balanced lifting on both sides
- Designed for heavy tool boxes, site boxes and large storage chests
For optimal performance, confirm lid weight, hinge placement and mounting geometry before installation.
