Tool Box Storage Lid Gas Struts Pair – 600mm 400N – 10mm Ball Socket Ends – 4x Heavy Duty L Brackets
✓ IN STOCK - SHIPS TODAY
-
Force: 400N per strut (800N total pair support)
-
Extended Length: 600mm
-
Stroke: 260mm
-
End Type: 10mm Ball Socket (M6 Thread)
-
Ball Size: 10mm (snap-on)
-

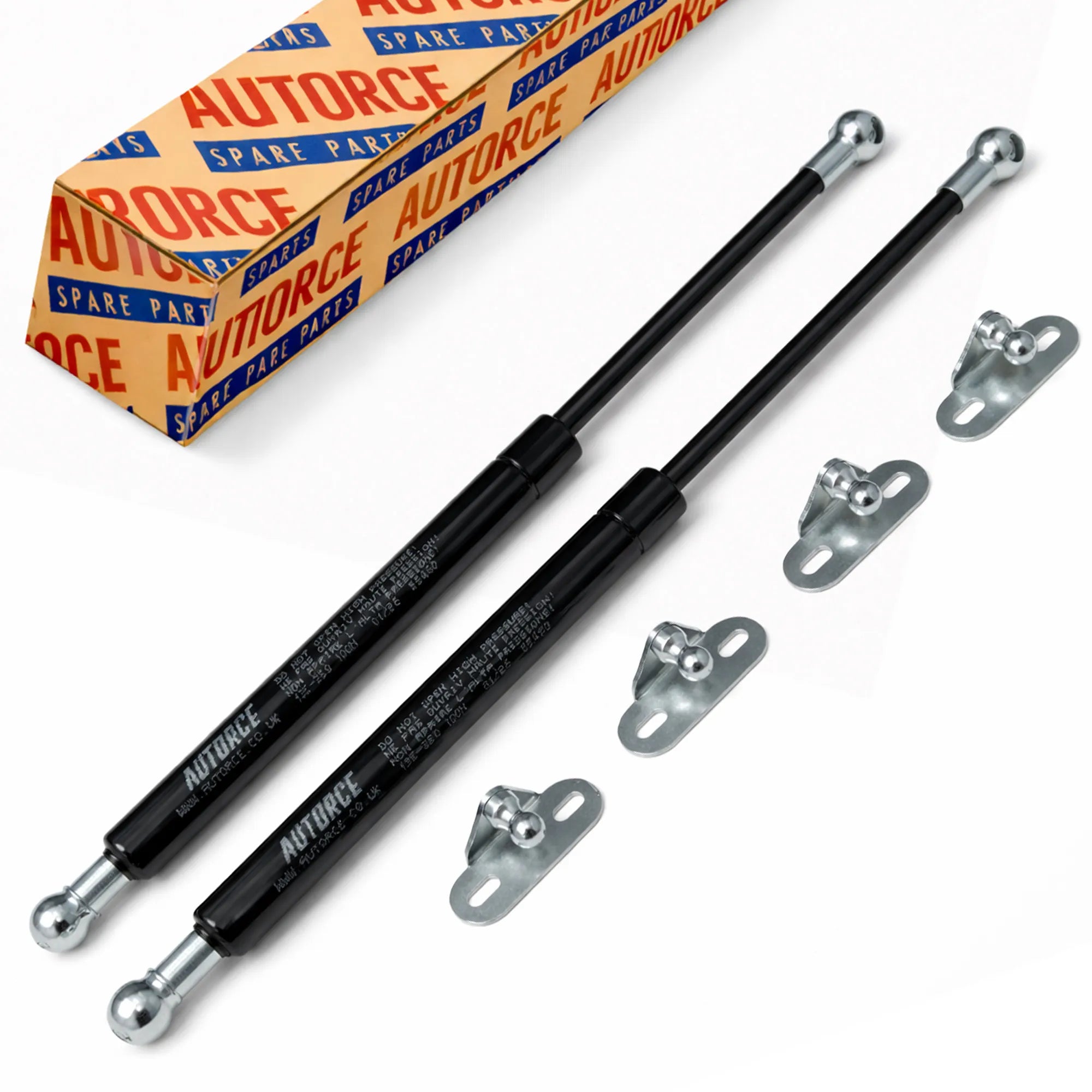

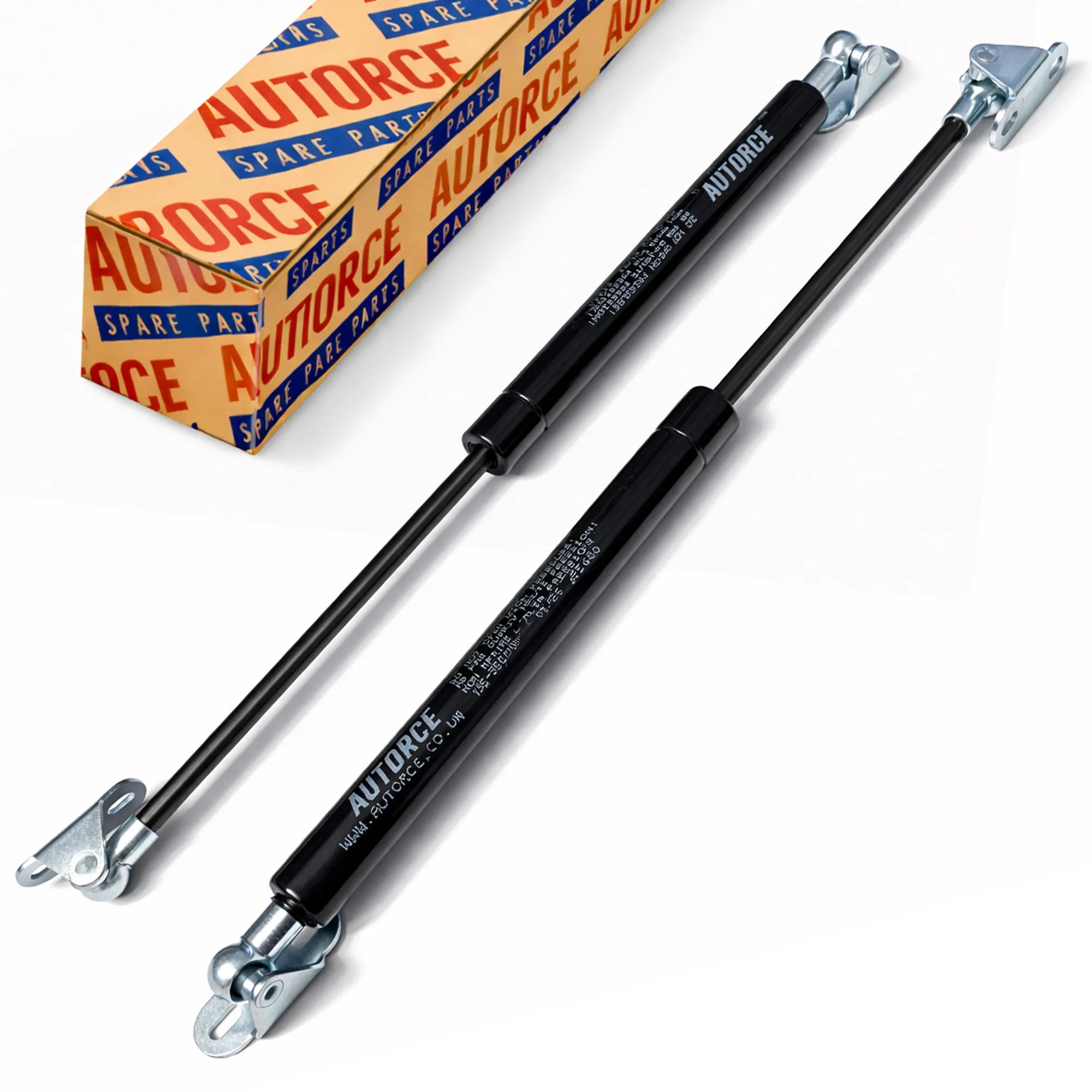

Quantity: Supplied as a matched pair (2 gas struts)
-
Brackets: 4x Heavy-duty L brackets included
Suitable For
Designed for heavy-duty toolbox and storage box lids, large site boxes, van tool chests and workshop storage trunks requiring strong, stable lift assistance.
-
Recommended Lid Depth (hinge to front edge): 800–1200mm
-
Suitable Lid Weight (lid only): 40–72kg (using two struts)
Recommended Lid Weight & Installation Guidance
These 600mm 400N gas struts are suitable for lids approximately 40–72kg when installed correctly. Actual lifting performance depends on hinge position, lid material and mounting geometry.
Recommended Mounting Position
- Install one strut on each side of the lid
- Mount approximately 20–30% down from the hinge on the lid panel
- Position the lower L bracket around 300–520mm below the top inside edge of the box frame (adjust based on internal depth and clearance)
- Ensure the strut is slightly compressed when fully closed to maintain correct preload tension
⚠ Force guidance: If the lid is heavier than 72kg, a higher force rating may be required. If the lid is lighter than 40kg, the struts may feel overly strong.

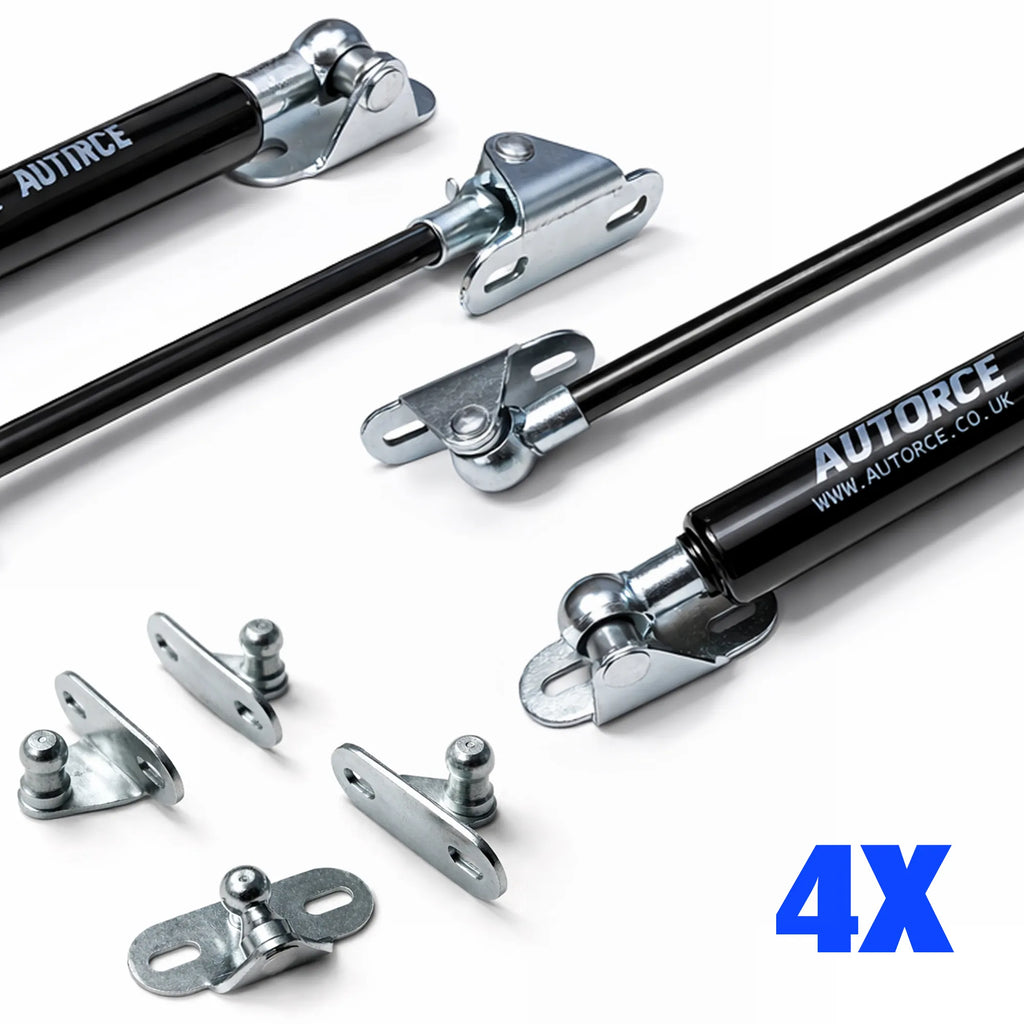

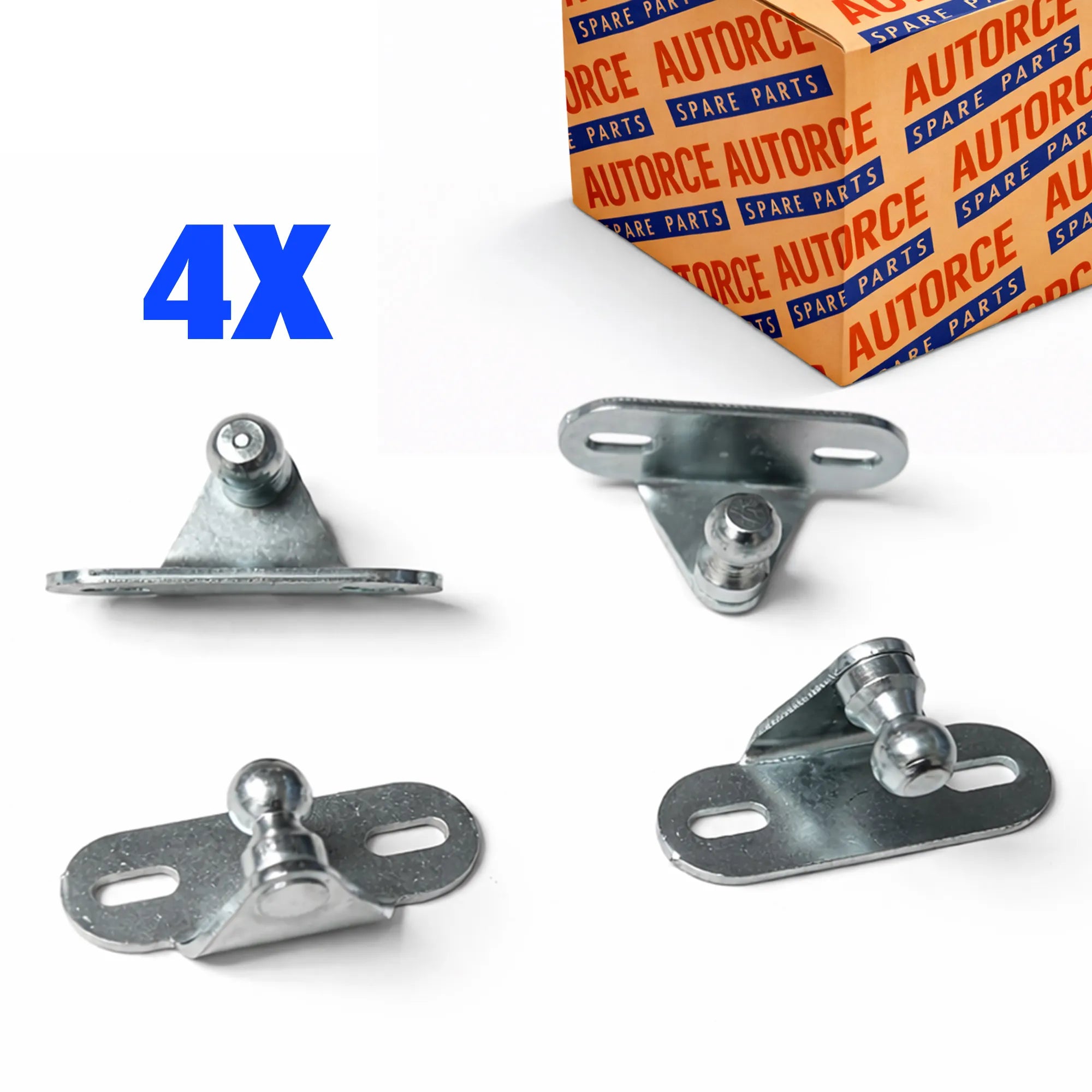

🔧 Mounting Bracket Type – 4x L Bracket Kit
This kit includes 4x heavy-duty 90° L brackets and is recommended for:
- Reinforced tool boxes and heavy-duty site boxes
- Deep van tool chests and workshop storage trunks
- Metal or thick timber box frames
- Hardwood, steel or composite lids
- Installations requiring additional mounting offset or structural strength
⚠️ Note: For flat-panel lids or limited internal clearance, a mixed mounting kit (2x L + 2x Flat brackets) may be more suitable.

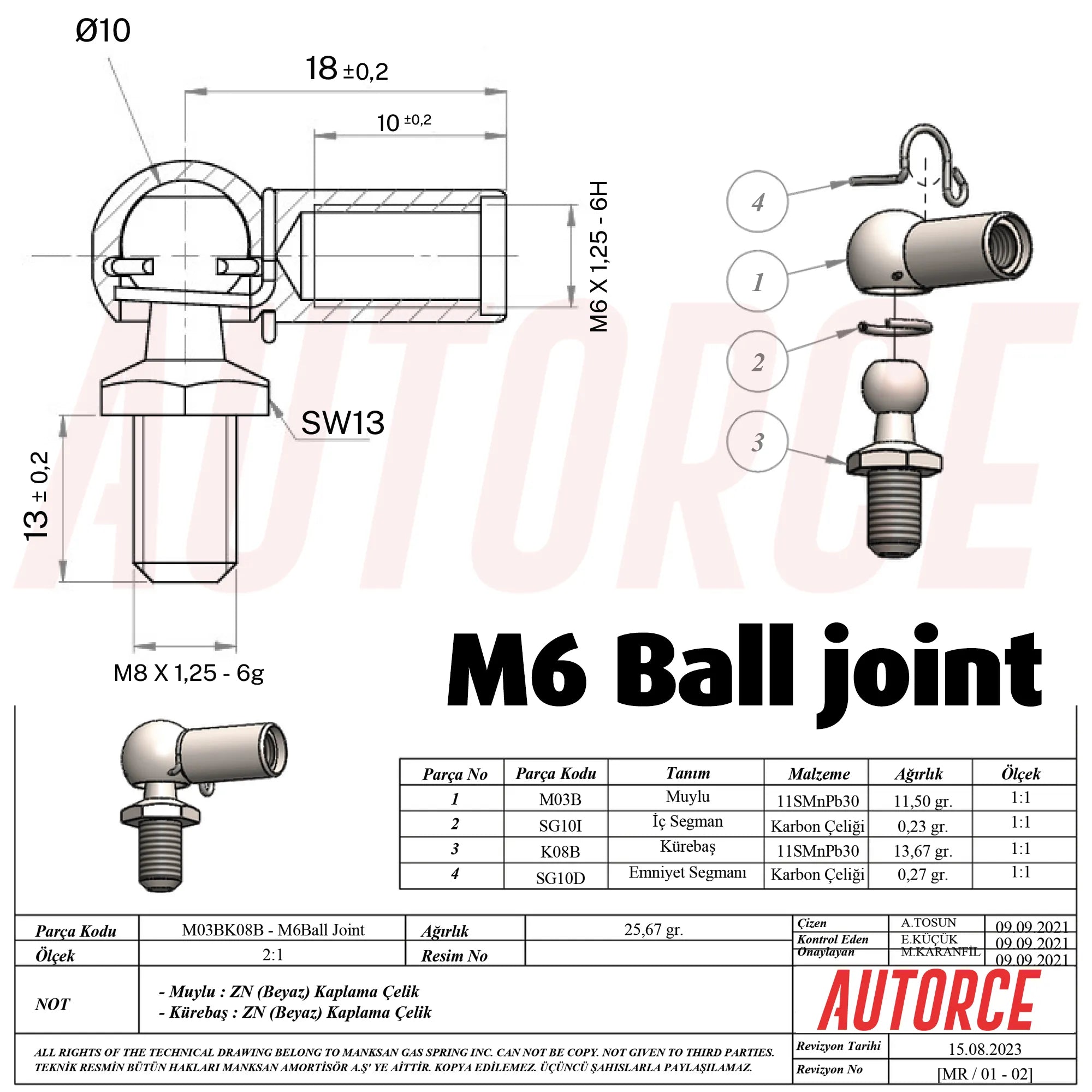

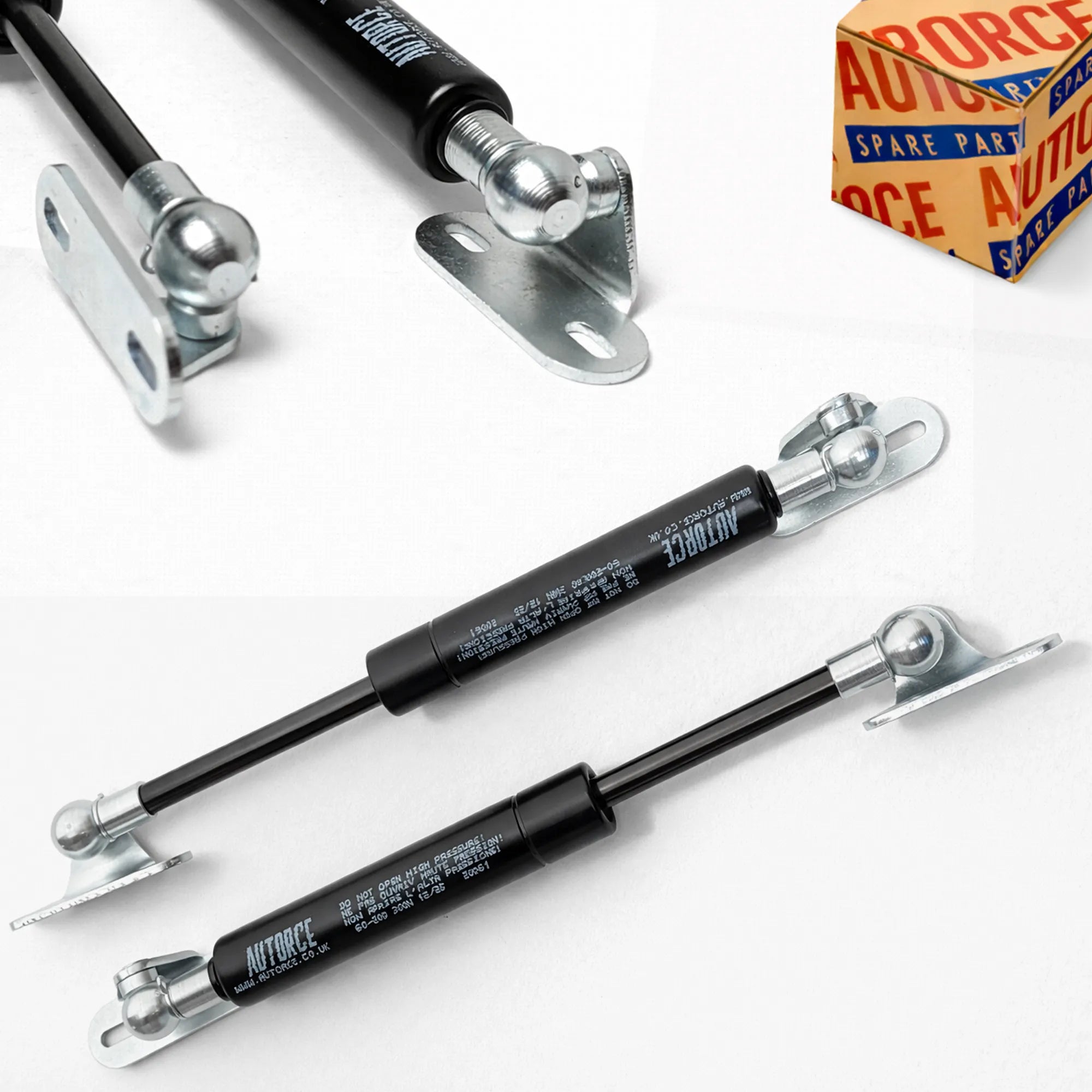

Secure 10mm Ball Socket System
This 600mm 400N gas strut pair features a 10mm ball socket end designed to snap securely onto the included brackets. The ball-and-socket articulation ensures smooth operation while reducing stress on mounting points and improving long-term durability.
Smooth and Controlled Heavy-Duty Lid Support
With 400N force per strut (800N combined), these toolbox storage lid gas struts deliver powerful lifting assistance and controlled closing performance. Ideal for large and heavy lids where reliable, stable support is essential.
- Helps prevent sudden lid drops
- Improves user safety
- Reduces hinge strain
- Extends the toolbox and storage box lifespan
Key Features
- 10mm ball socket snap-on connection
- 4x heavy-duty steel L brackets included
- Durable finish for demanding workshop environments
- Matched pair for balanced lifting on both sides
- Designed specifically for heavy tool boxes and storage chests
For optimal performance, confirm lid weight, hinge position and mounting geometry before installation.
