Toy Box Soft Close Gas Struts (Pair) – 400mm 200N – M6 Threaded Ball Joint – With L Brackets
✓ IN STOCK - SHIPS TODAY
-
Force: 200N per strut (400N total support)
-
Extended Length: 400mm
-
Stroke: 150mm
-
End Type: M6 Threaded Ball Joint
-
Thread Size: M6
-
Quantity: Supplied as a matched pair (2 gas struts)
-
Brackets: Heavy-duty L mounting brackets included
Suitable For
Designed as toy box soft-close gas struts for controlled lid support on toy chests, blanket boxes, storage benches, and wooden storage chests. Ideal for applications requiring soft-close style lid assistance and safer, more controlled opening and closing. Designed for lids with a hinge-to-front depth of 500–800mm and lid-only weight around 20–36kg.
-
Recommended Lid Depth: 500–800mm
-
Suitable Lid Weight (lid only): 20–36kg (when using two struts)
Recommended Lid Weight & Installation Guidance
Force Rating: 200N per strut (400N total per pair)
Recommended for toy box and storage chest lids weighing approximately P–36kg when installed as a pair. Actual performance depends on hinge position, lid material, mounting distance and overall installation geometry.
Recommended Mounting Position:
- Install one strut on each side of the lid for balanced lift support.
- Mount approximately 20–30% down from the hinge on the lid panel.
- Fix the lower L bracket around 90–140mm below the top inside edge of the chest frame (depending on internal depth).
- Ensure the strut is slightly compressed when fully closed to maintain correct preload tension and controlled operation.
⚠ If the lid exceeds 36kg, a higher force rating may be required.
⚠ If the lid is lighter than 20kg, the struts may push the lid upward.

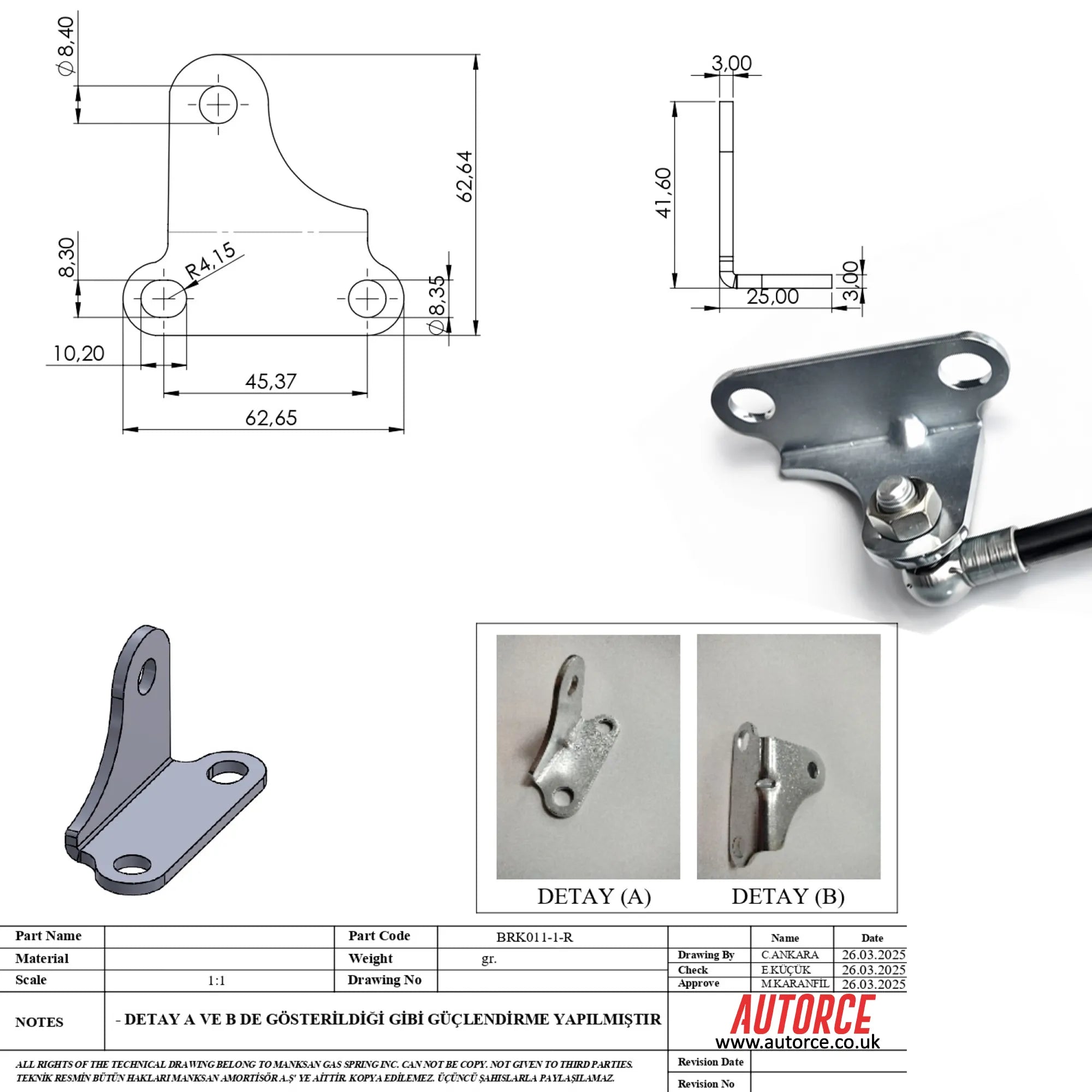

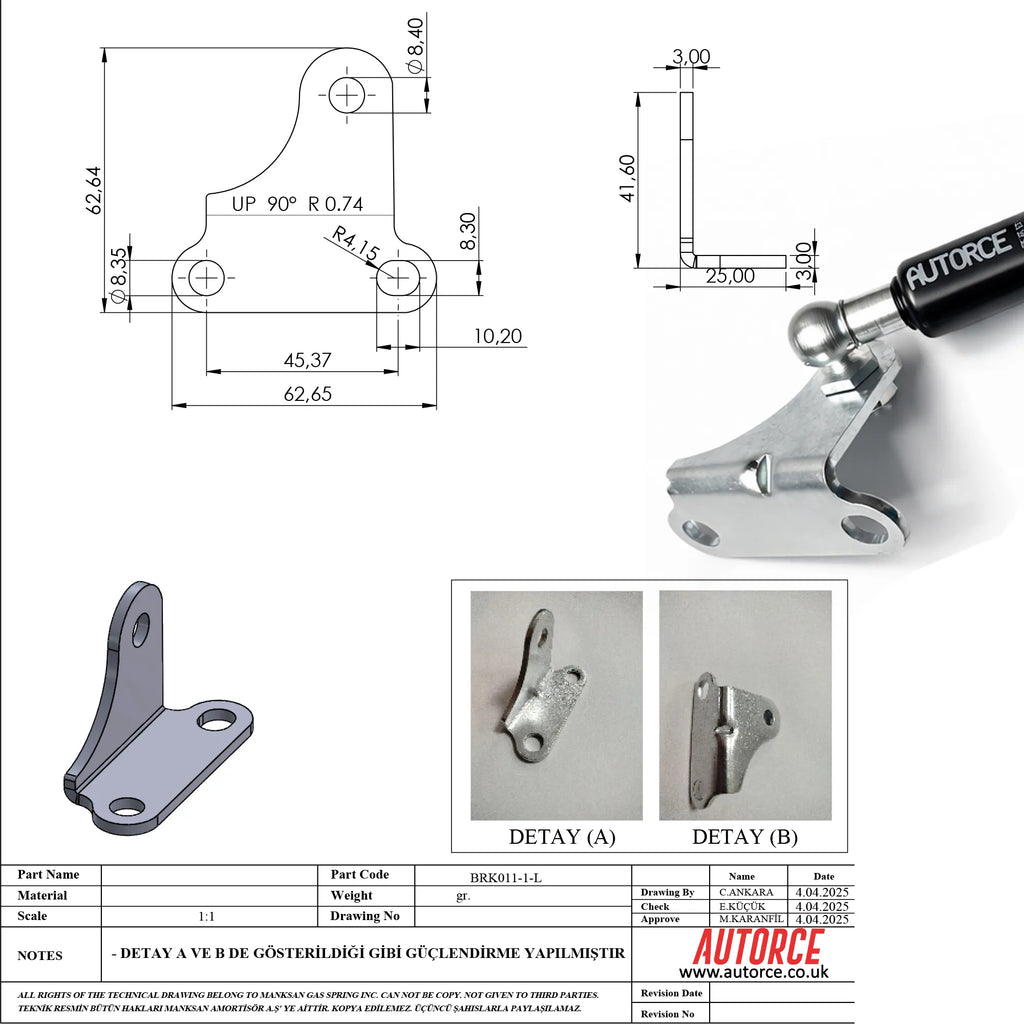

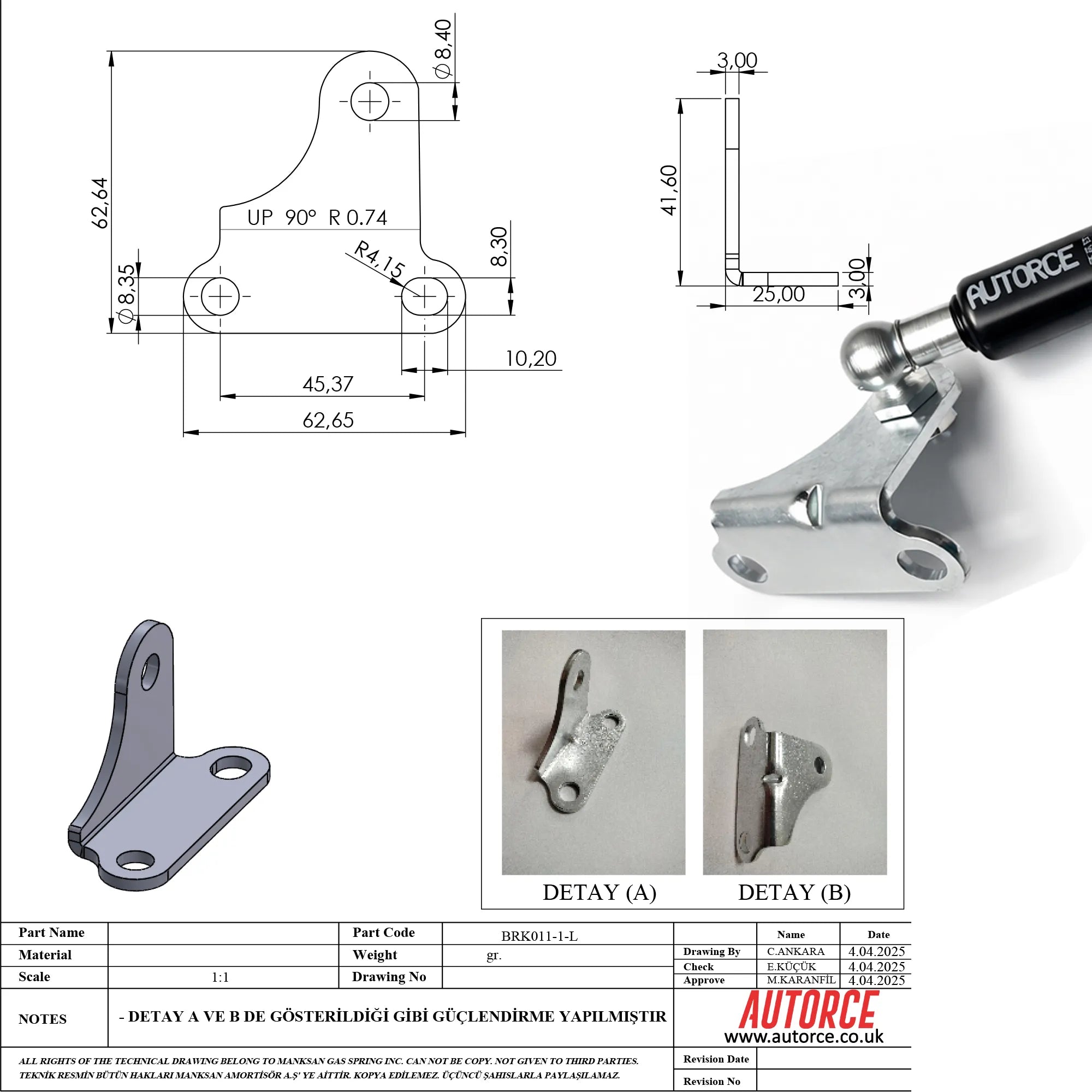

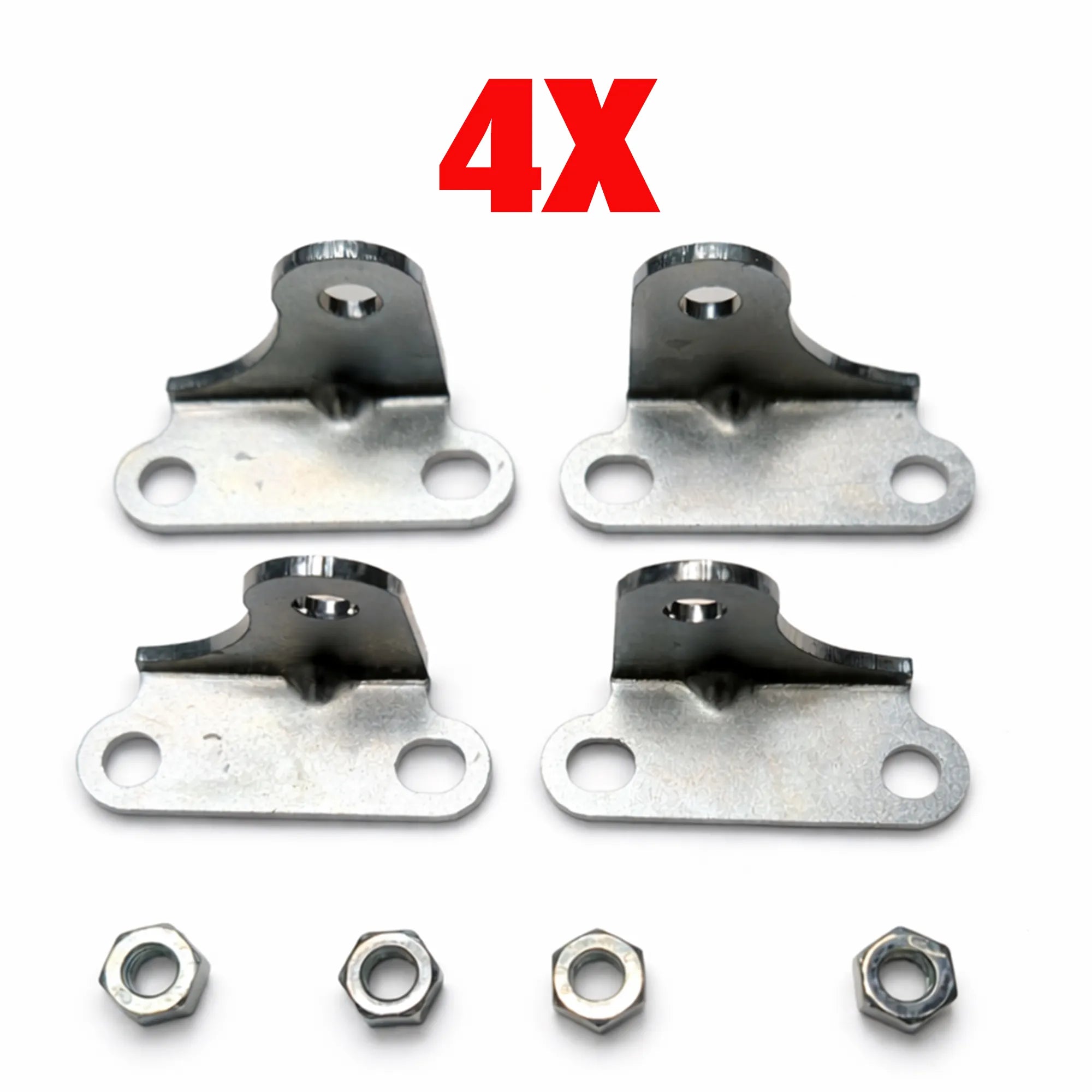

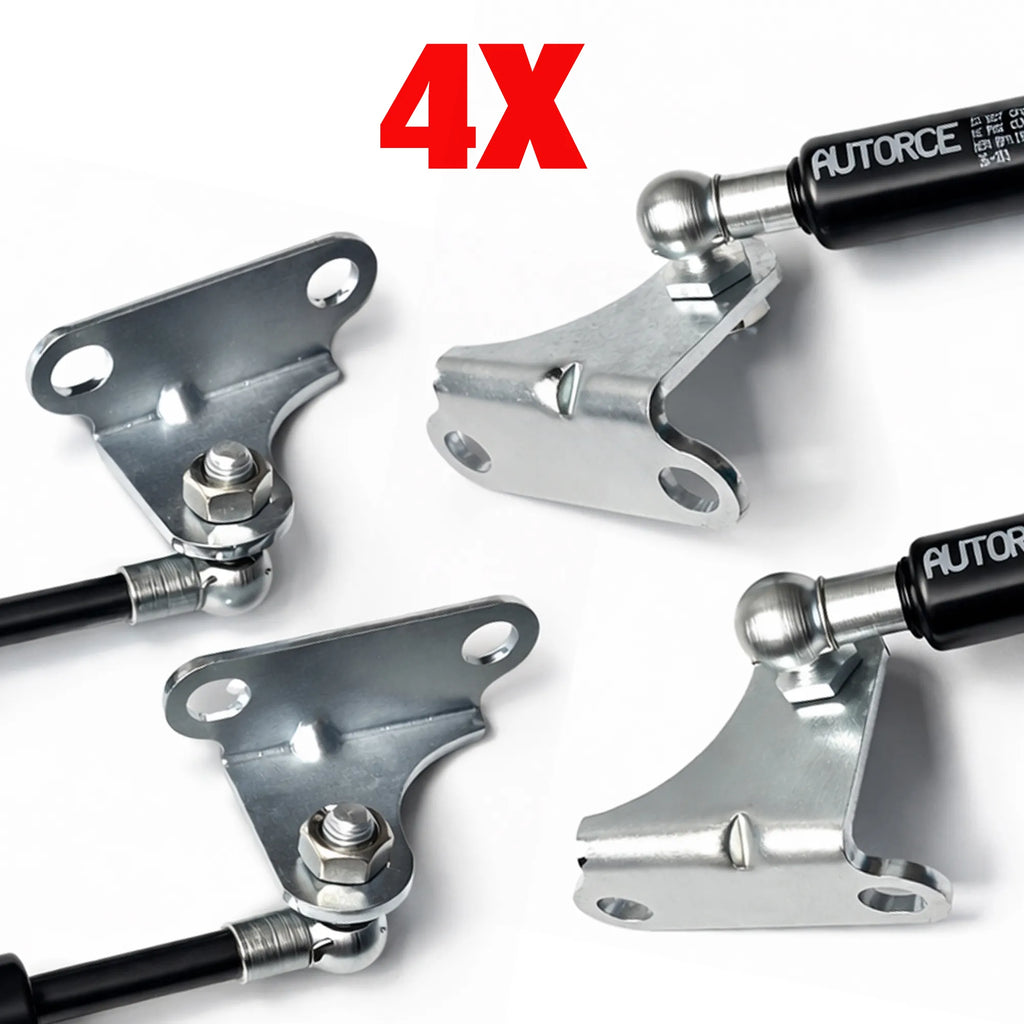

🔧 Included L Mounting Brackets
Supplied with heavy-duty L brackets for secure side-wall installation inside toy boxes, storage chests and wooden blanket boxes. The L bracket design provides proper mounting offset for stable articulation and improved structural support.

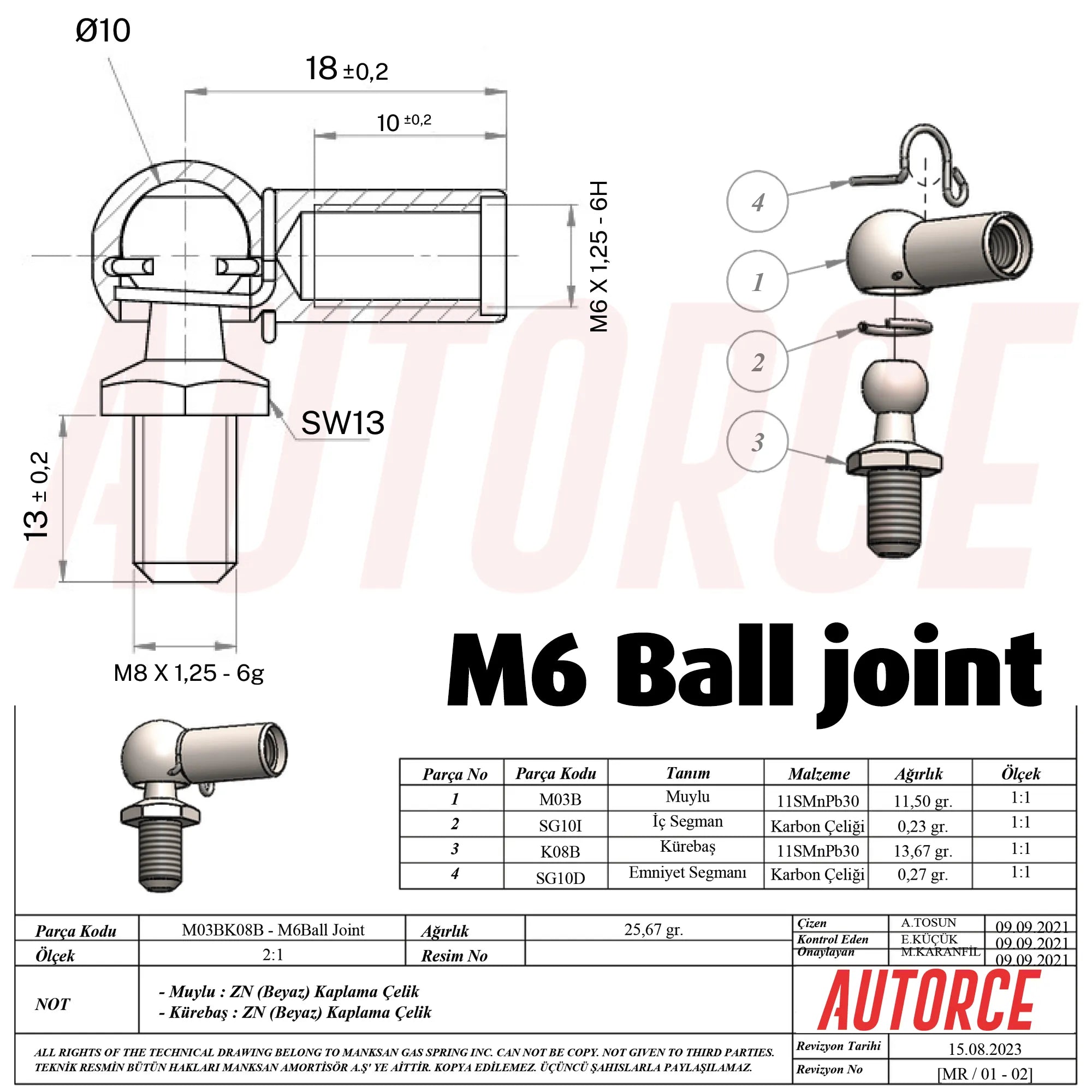

Secure M6 Threaded Ball Joint System
Each 400mm 200N gas strut features an M6 threaded ball joint that passes through the L bracket and secures firmly with a locking nut. This bolt-through fixing system is ideal for wooden toy boxes and reinforced chest frames.
The threaded ball joint system provides:
- Strong mechanical connection
- Reduced movement under load
- Improved long-term durability
- Secure installation for timber, MDF and reinforced panels
Smooth & Controlled Lid Support
With 200N force per strut (400N combined), these toy box soft-close gas struts provide controlled lid movement, helping reduce sudden drops and supporting safer day-to-day use.
They help to:
- Reduce sudden lid drops
- Add controlled opening and closing support
- Lower stress on hinges
- Extend the lifespan of toy boxes and storage chests
Ideal for replacing worn toy box lid stays, upgrading weak hinges, or converting standard chests into controlled lid support systems.
Key Features
- Heavy-duty steel gas struts
- M6 threaded ball joint ends
- Includes L mounting brackets
- Designed for toy box lid support and storage chest soft-close applications
- Corrosion-resistant finish
- Matched pair for balanced lifting performance
For best results, confirm lid weight, hinge placement and internal mounting space before installation to ensure optimal lift balance.
🛡️ AUTORCE Customer Assurance
- ✓ Quality-tested components
- ✓ 30-Day Returns on unused items
- ✓ Fast UK Dispatch
- ✓ Secure checkout & UK-based support
Order Today – Upgrade your toy box or storage chest with reliable 300mm 200N soft lid support gas struts.
