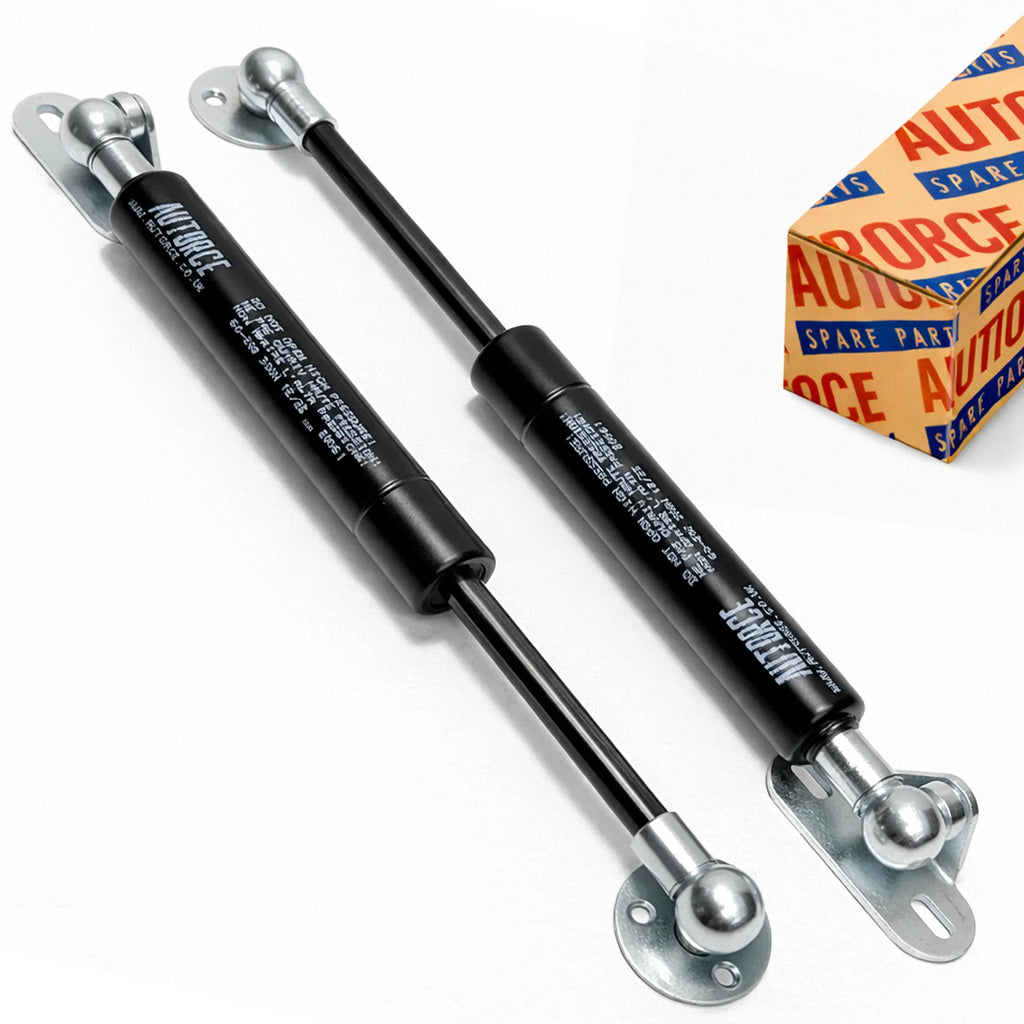

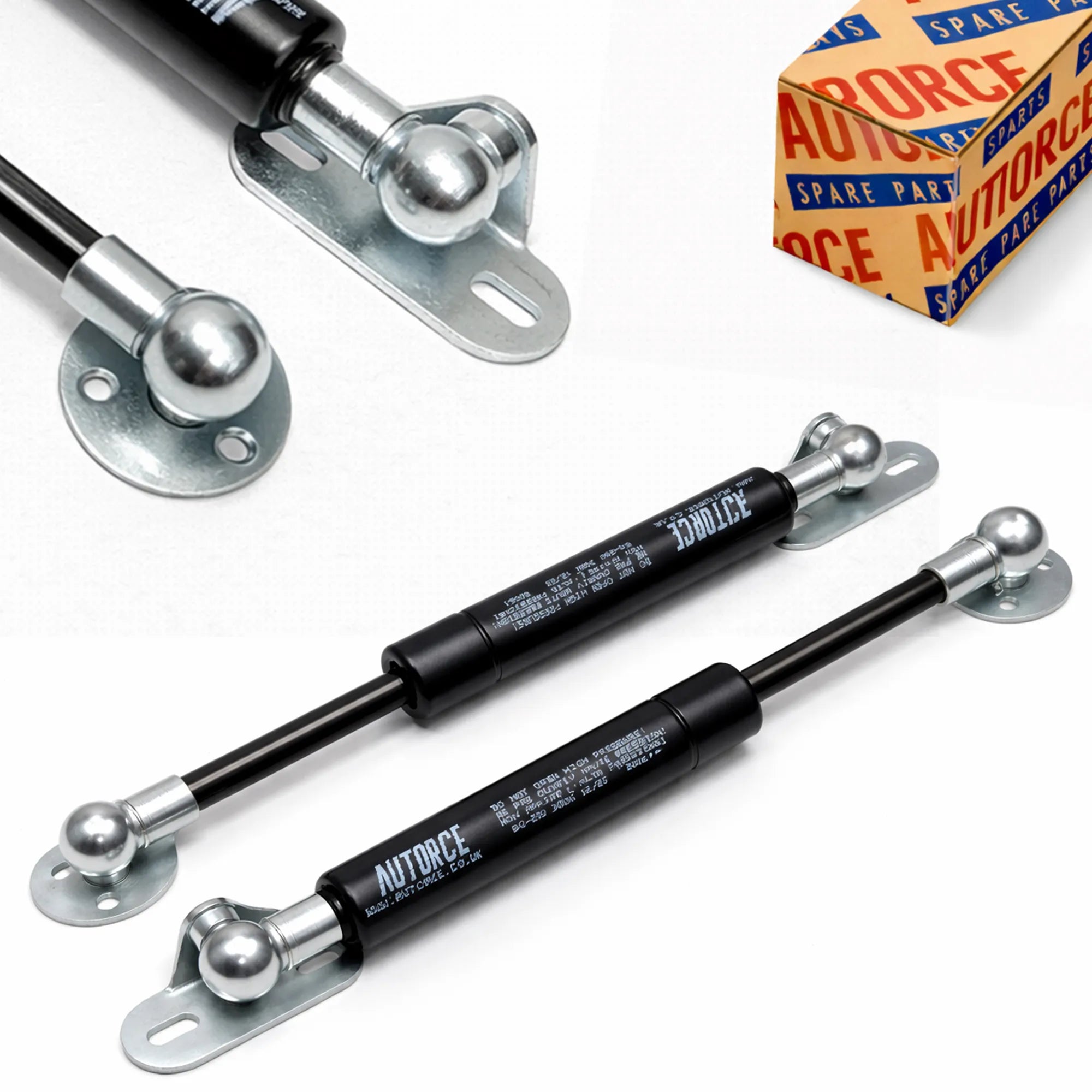

450mm 400N – Toy Box Soft Close Gas Struts (Pair) - 10mm Ball Socket Ends with 2x L + 2x Flat Brackets
✓ IN STOCK - SHIPS TODAY
-
Force Rating: 400N per strut (800N total support)
-
Extended Length: 450mm
-
Stroke: 185mm
-
End Fitting: 10mm Ball Socket (M6 Threaded Ball Stud)
-
Ball Diameter: 10mm Snap-On Type
-
Quantity: Supplied as a matched pair (2 gas struts)
-

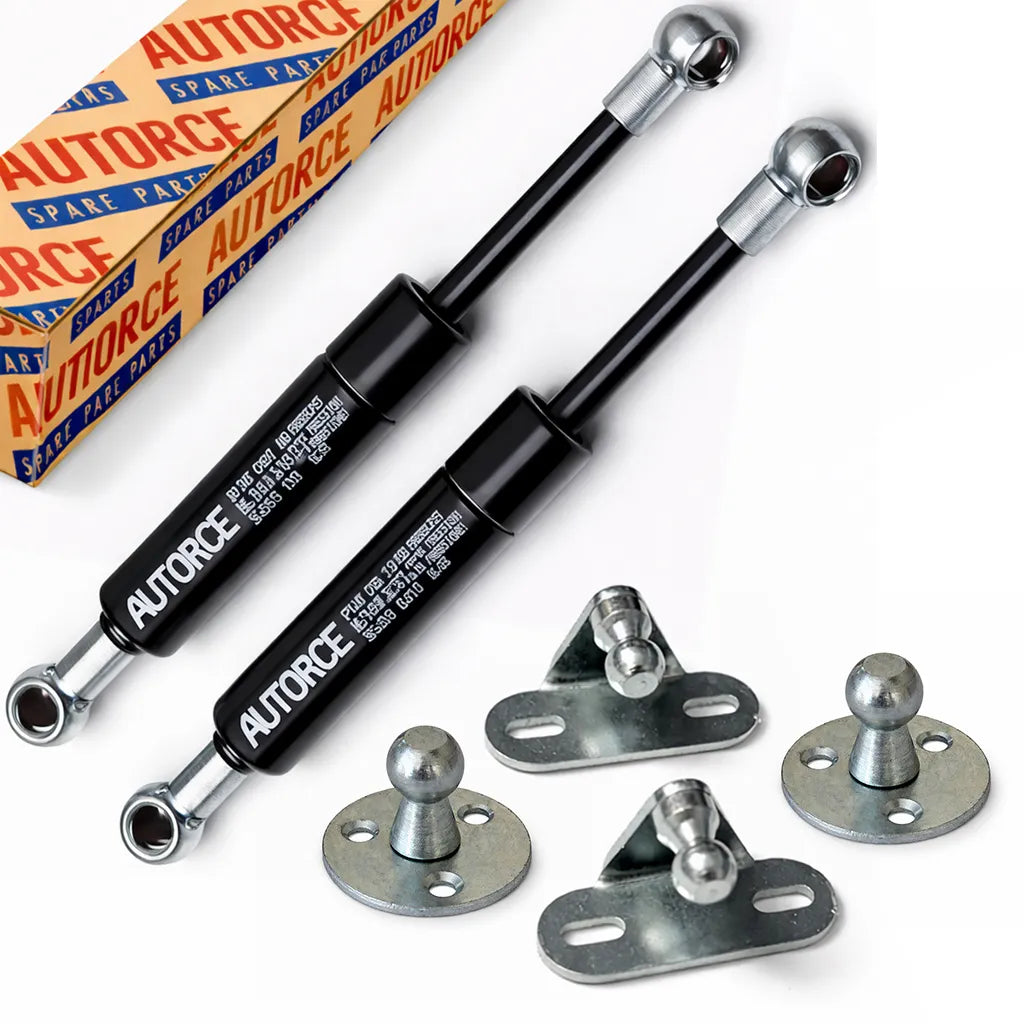

Bracket Kit: 2x L Brackets + 2x Flat Mounting Brackets Included
Suitable Applications
Engineered for:
Optimised for toy box lids with a hinge-to-front depth of 600–900mm and lid-only weight around 40–72kg.
- Toy boxes and toy chests
- Indoor blanket boxes
- Storage benches with hinged lids
- Wooden storage chests and ottoman-style lids
- Medium to heavy-duty lid support applications (indoor use)
-
Recommended Lid Depth (hinge to front edge): 600–900mm
-
Recommended Lid Weight (lid only): approx. 40–72kg (when using both struts)
Recommended Lid Weight & Installation Guidance
Force Output: 400N per strut (800N per pair)
Designed to assist toy box and storage chest lids weighing approximately 40–72kg when mounted correctly. Actual lift performance depends on hinge placement, lid material and installation geometry.
Recommended Mounting Setup:
- Install one strut on each side of the lid
- Fix the upper bracket approx. 20–30% down from the hinge
- Mount the lower bracket approx. 90–140mm below the top inner frame edge
- Ensure slight compression when the lid is fully closed to maintain preload tension
⚠ If the lid weight exceeds 72kg, consider a higher force rating option.
⚠ For lids under 40kg, the struts may feel overly strong.

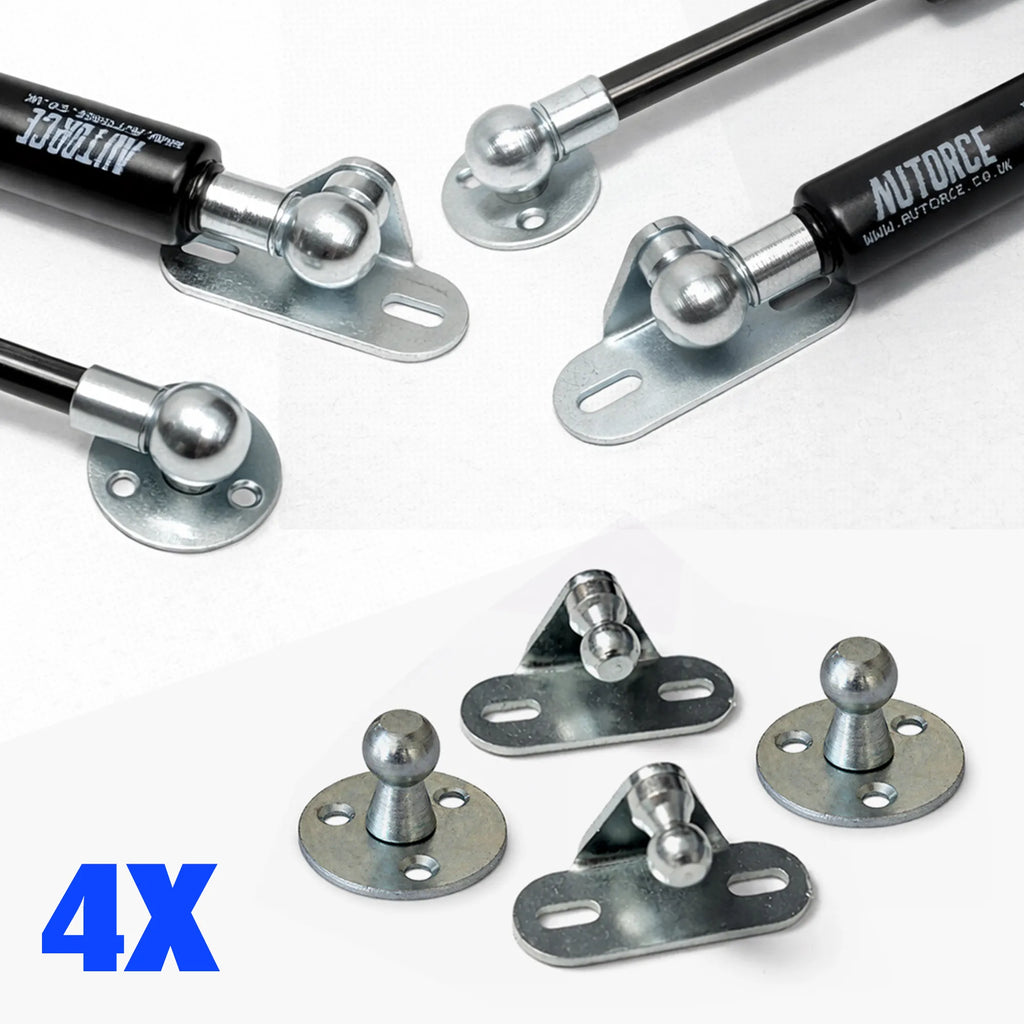

🔧 Mounting Bracket Type – 2x L + 2x Flat Bracket Kit

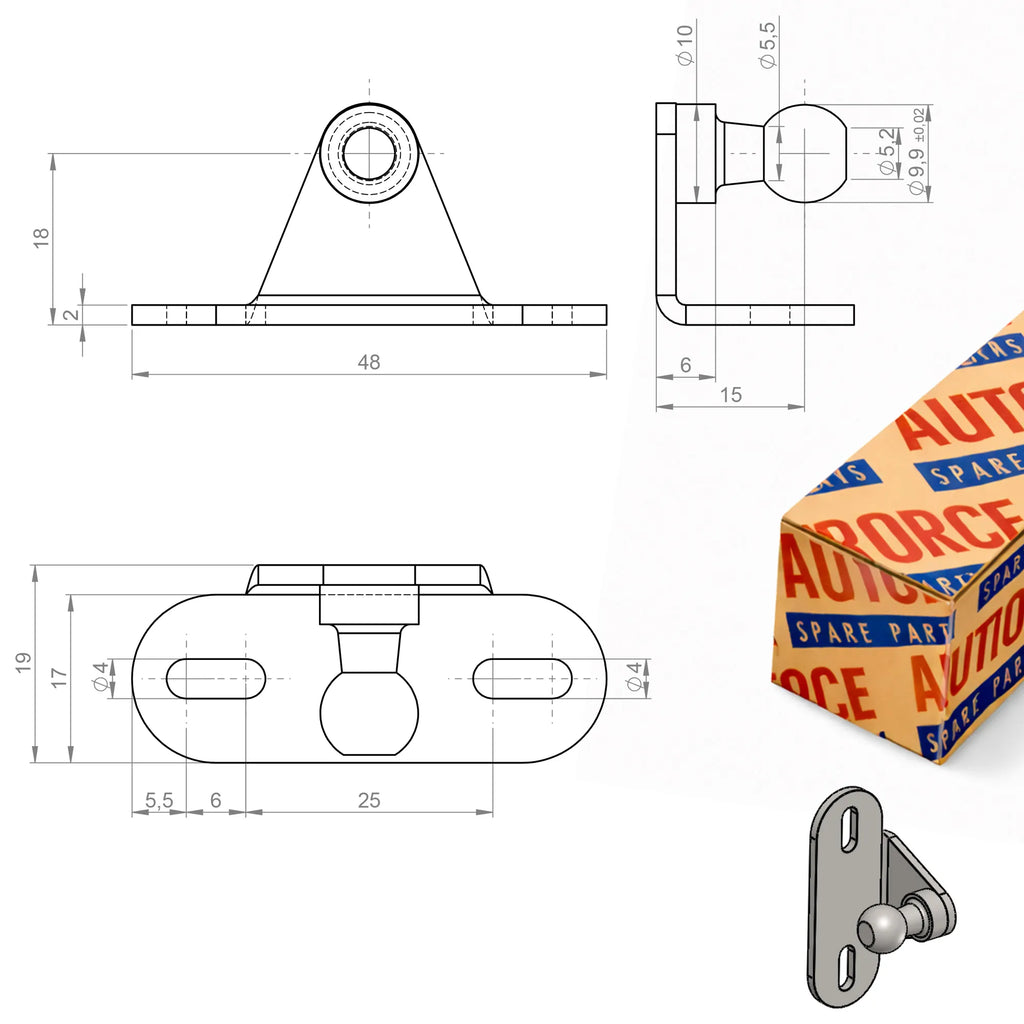

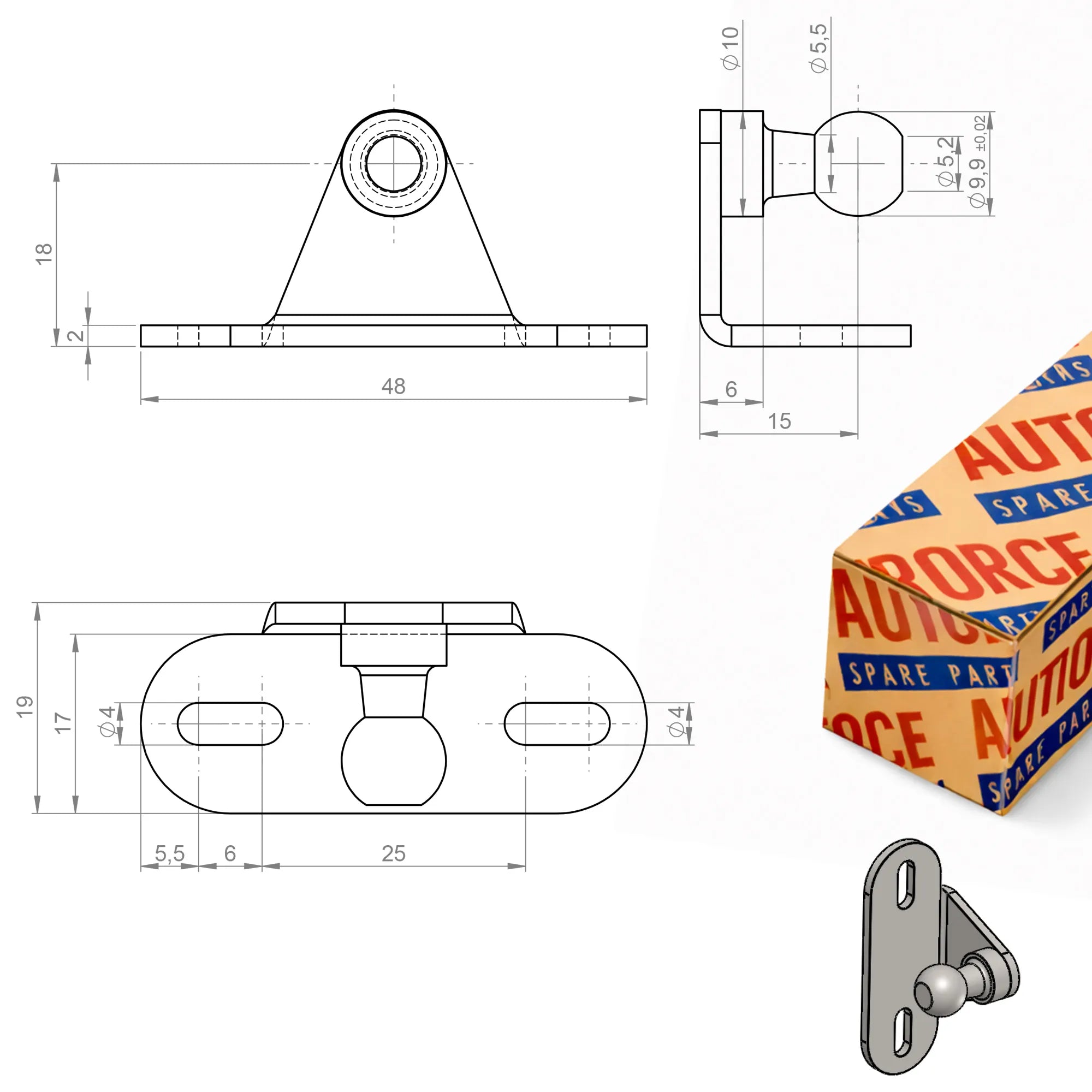

This kit includes 2x heavy-duty L brackets (90° angle brackets) for the chest side and 2x flat brackets for the lid side.
Recommended for:
- Toy boxes with standard flat lids
- Wooden toy chests and storage benches
- MDF or flat panel lid constructions (indoor)
- Installations with limited internal clearance
- Domestic indoor setups where a lower-profile lid bracket is preferred
The L brackets provide the correct mounting offset on the chest wall, while the flat brackets create a lower-profile pivot point on the lid for smoother movement and a cleaner internal fit.
⚠️ For thick-framed lids or installations requiring extra mounting offset, a full 4x L bracket kit may be more suitable.
💡 Not Sure Which to Choose?
If your toy box has a thick-framed lid or needs extra offset → choose 4x L Brackets.
If your lid is flat and standard construction → choose 2x L + 2x Flat Combination.

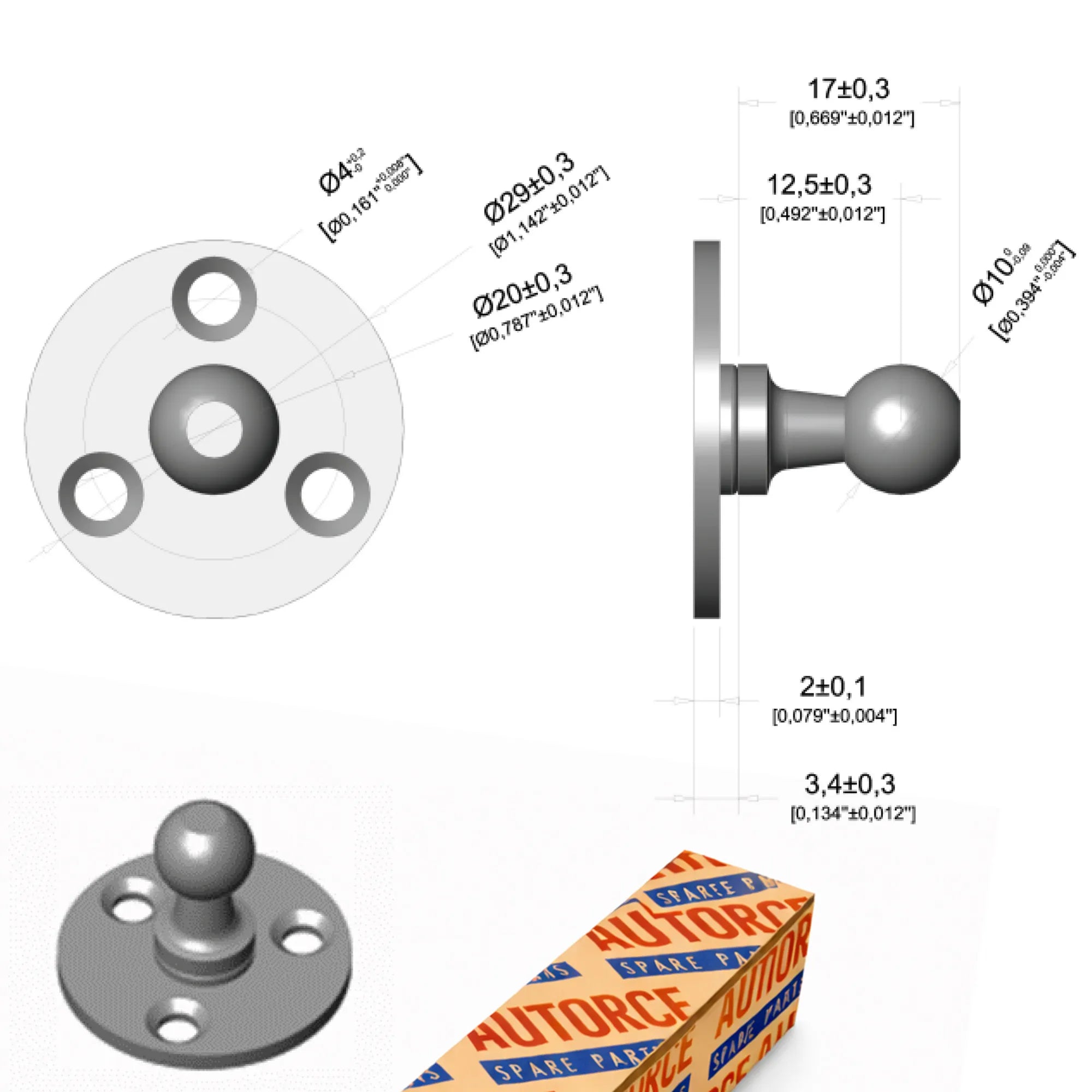

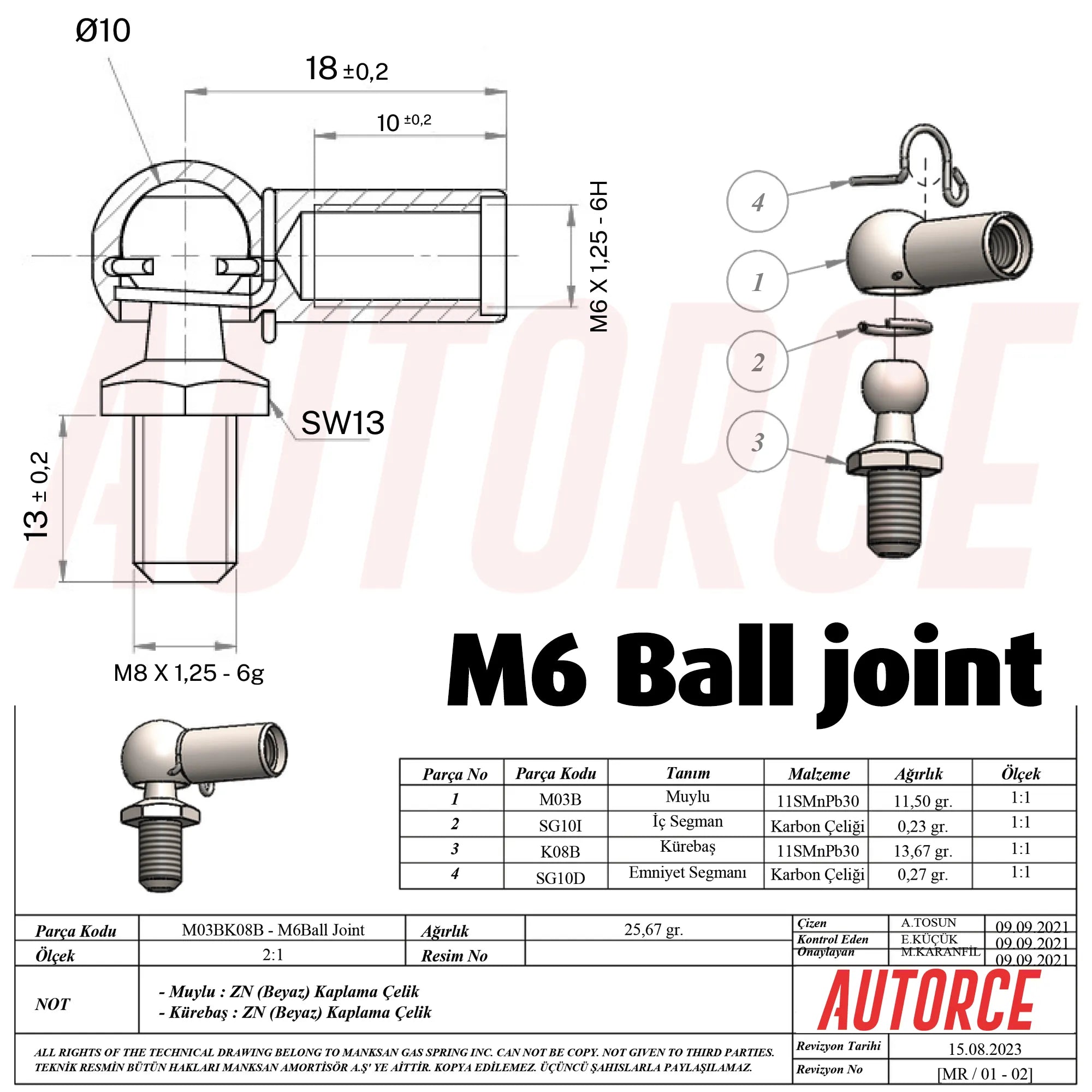

Secure 10mm Ball Socket System
Each strut features a 10mm snap-on ball socket end designed to connect securely to the included M6 threaded ball studs. The ball-and-socket joint allows smooth articulation during opening and closing, helping reduce stress on mounting points.
- Allows smooth pivot movement
- Reduces stress on fixings
- Improves long-term durability
- Maintains stable lid support performance
Smooth & Controlled Lid Assistance
With a combined 400N lifting support, this toy box soft-close gas strut pair provides assisted opening and controlled closing, helping reduce sudden lid drops and improving everyday lid operation.
Key Features
- ✓ 10mm snap-fit ball socket connection
- ✓ 2x L + 2x Flat bracket mounting system
- ✓ 300mm open length with 110mm stroke
- ✓ Balanced lifting support (pair supplied)
- ✓ Designed for toy box lid support and soft-close applications
- ✓ Reliable performance for indoor storage chests and toy chests
For optimal results, confirm lid dimensions, weight and mounting position before installation.
