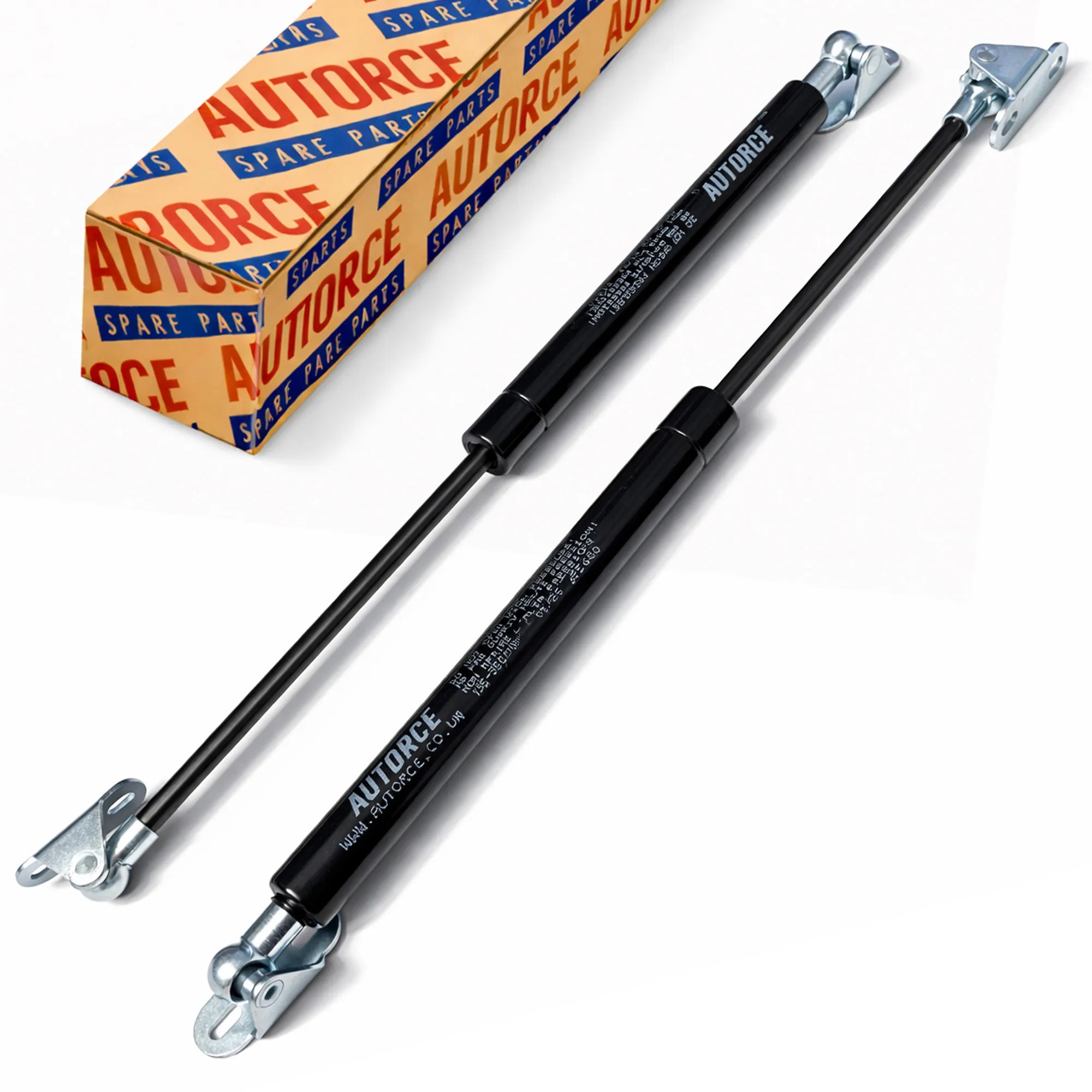

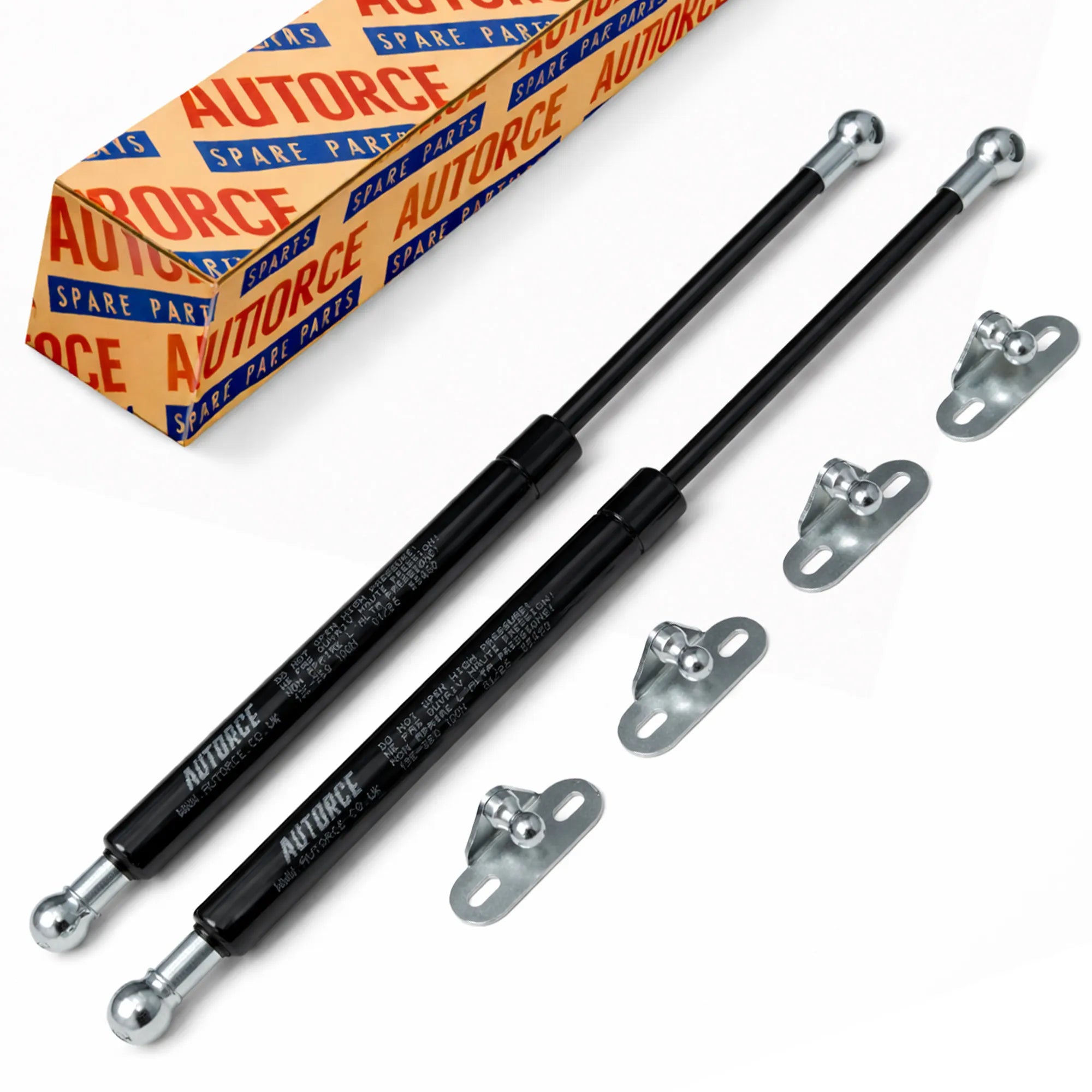

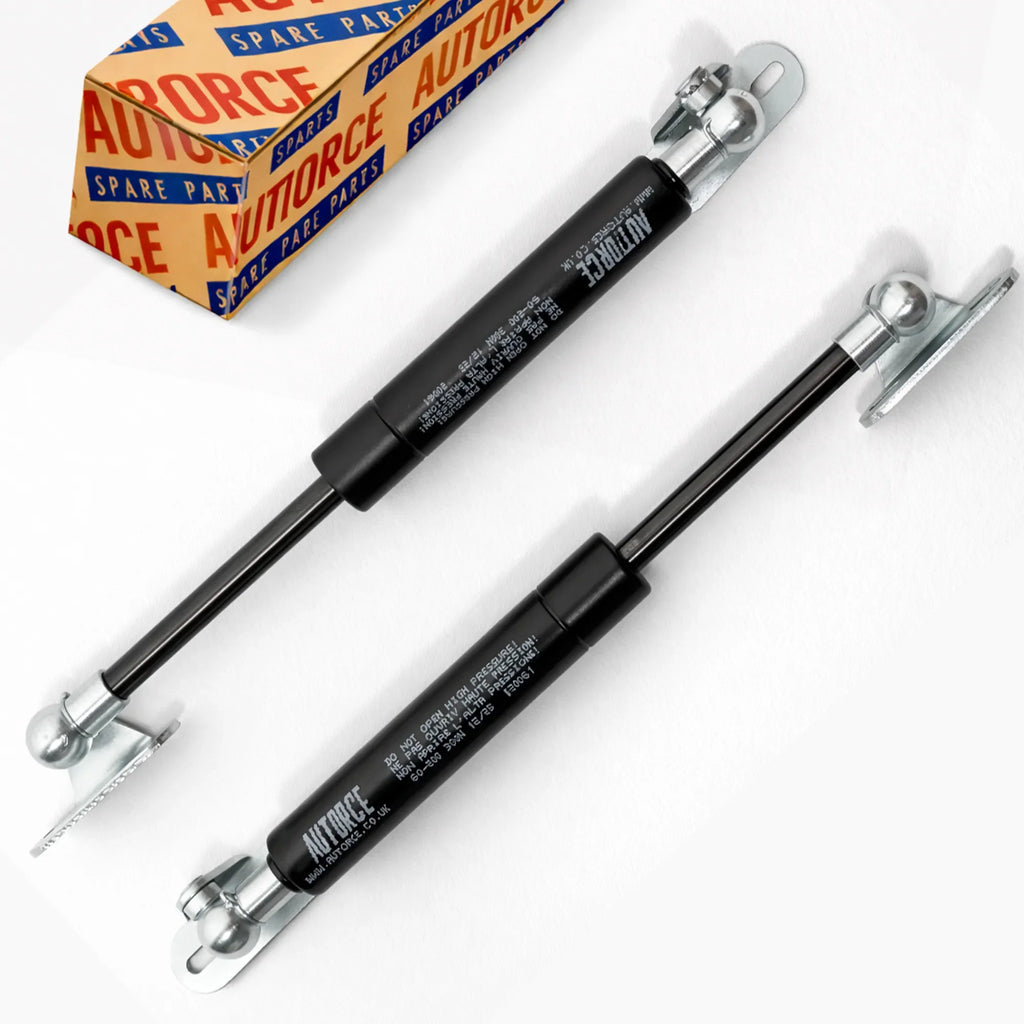

Tool Box Storage Lid Gas Struts Pair – 400mm 200N – 10mm Ball Socket Ends – 4x Heavy Duty L Brackets
✓ IN STOCK - SHIPS TODAY
-
Force: 200N per strut (400N total pair support)
-
Extended Length: 400mm
-
Stroke: 150mm
-
End Type: 10mm Ball Socket (M6 thread)
-
Ball Size: 10mm (snap-on)
-
Quantity: Supplied as a matched pair (2 gas struts)
-
Brackets: 4x heavy-duty L brackets included
Suitable For
Designed for medium to heavy-duty toolbox and storage box lids, site boxes, van tool chests and workshop storage trunks where stronger lift assistance is required.
-
Recommended Lid Depth (hinge to front edge): 500–800mm
-
Suitable Lid Weight (lid only): 20–36kg (using two struts)
Recommended Lid Weight & Installation Guidance
These 400mm 200N gas struts are suitable for lids around 20–36kg when installed correctly. Actual lift performance depends on hinge position, lid material and mounting geometry.
Recommended Mounting Position
- Install one strut on each side of the lid.
- Mount the upper bracket approximately 20–30% down from the hinge line on the lid panel.
- Mount the lower L bracket approximately 150–300mm below the top inside edge of the box frame (adjust to suit internal depth and clearance).
- Ensure the strut is slightly compressed when fully closed to maintain preload tension.
⚠ Force guidance: If the lid is heavier than 36kg, a higher force rating may be required. If the lid is lighter than 20kg, the struts may feel too strong.

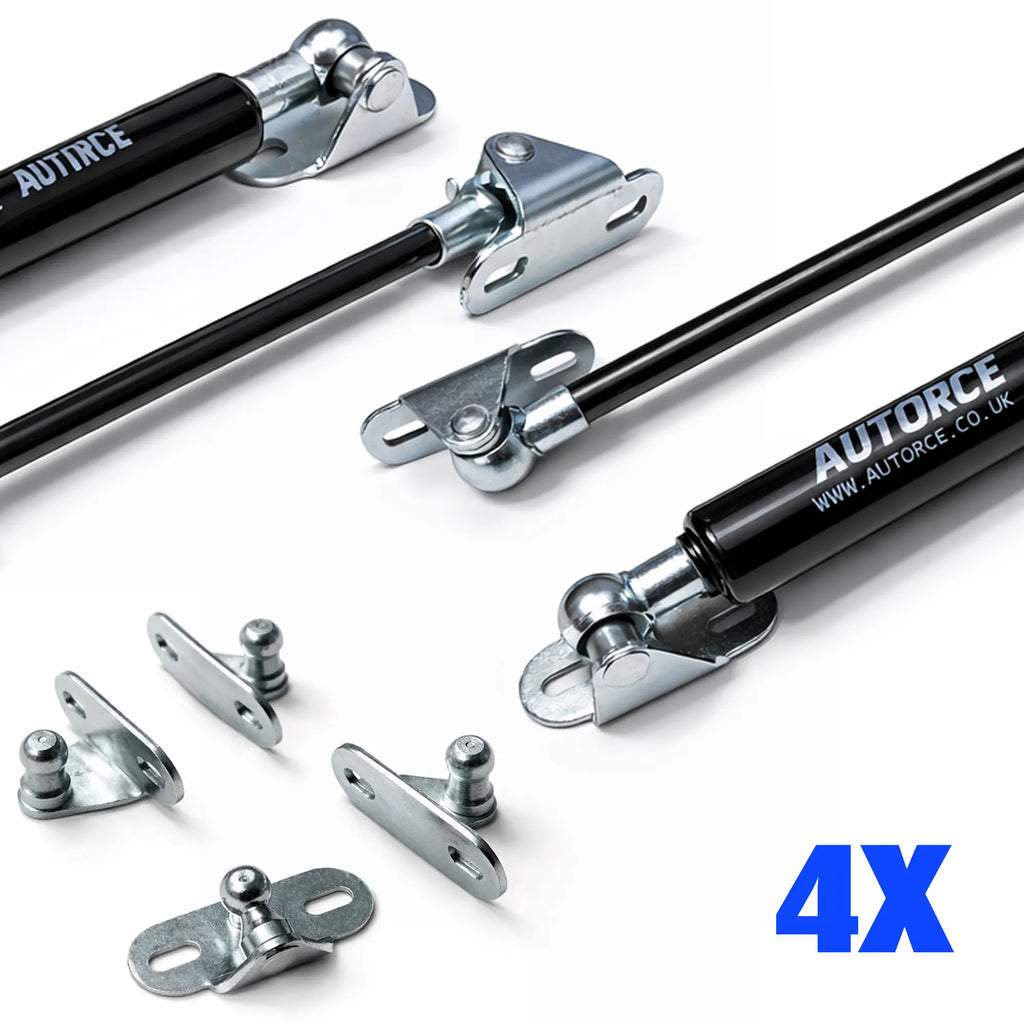

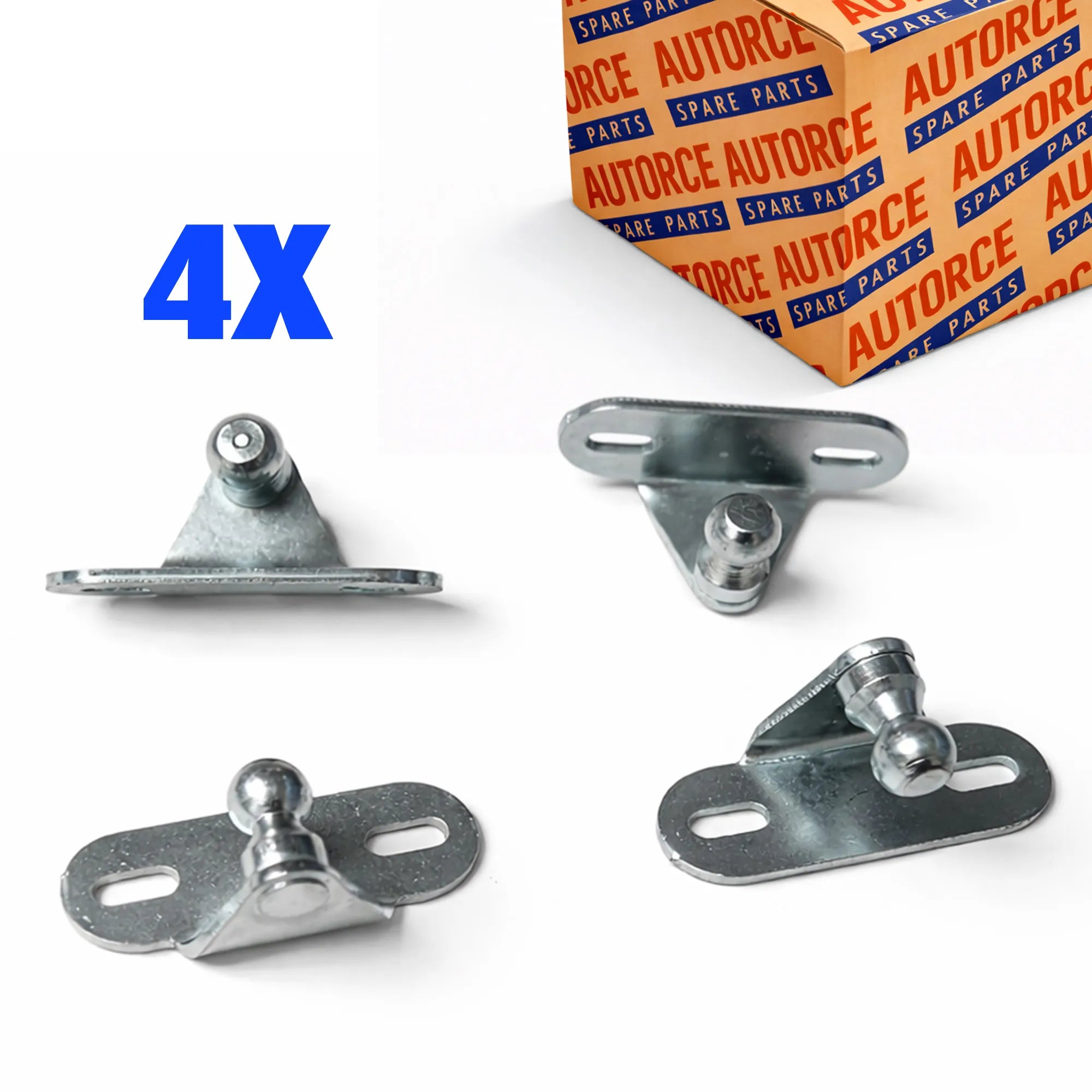

🔧 Mounting Bracket Type – 4x L Bracket Kit
This kit includes 4x heavy-duty 90° L brackets and is recommended for:
- Tool boxes with reinforced internal frames
- Deep site boxes, van tool chests and workshop storage boxes
- Metal or heavy timber box frames with strong inner supports
- Hardwood, steel or composite lids
- Installations requiring extra offset or clearance
⚠️ Note: For standard flat-panel lids or minimal internal clearance, a mixed mounting kit (2x L + 2x Flat brackets) may be more suitable.

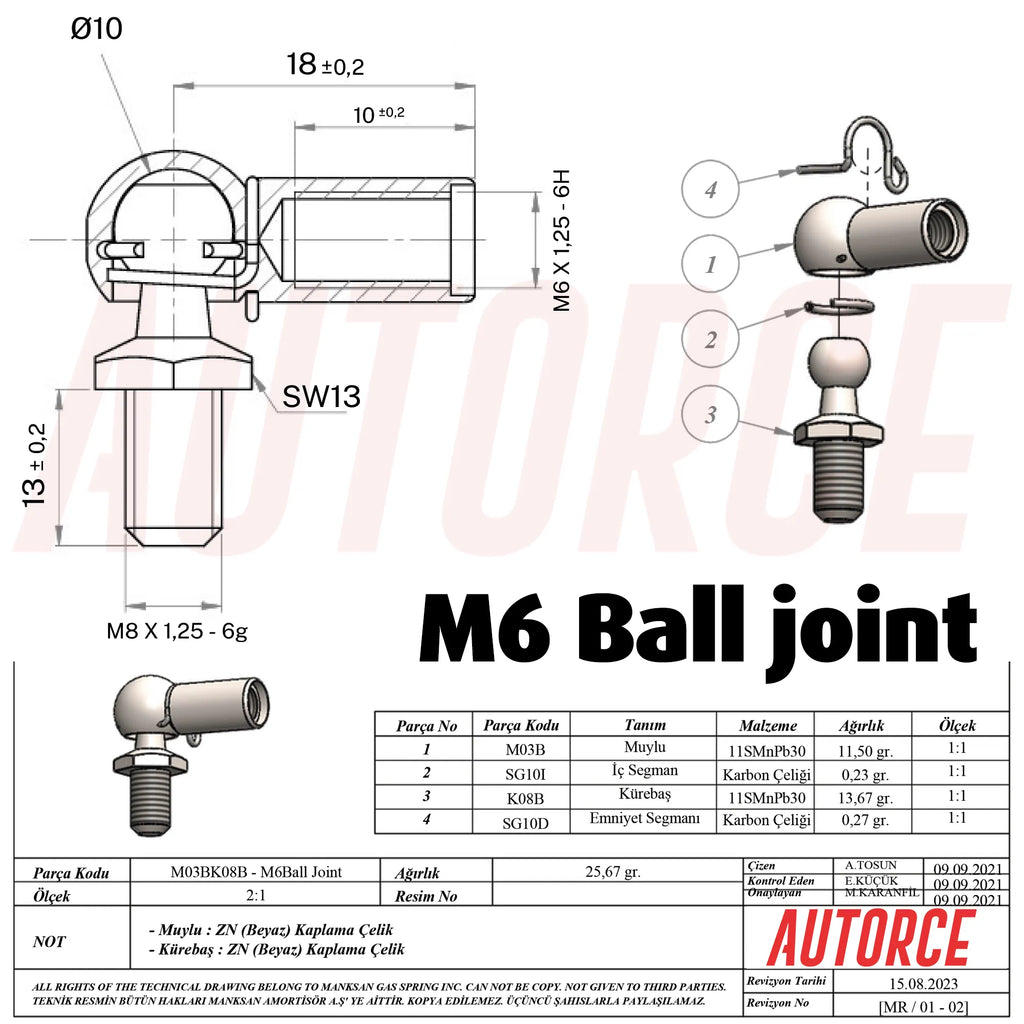

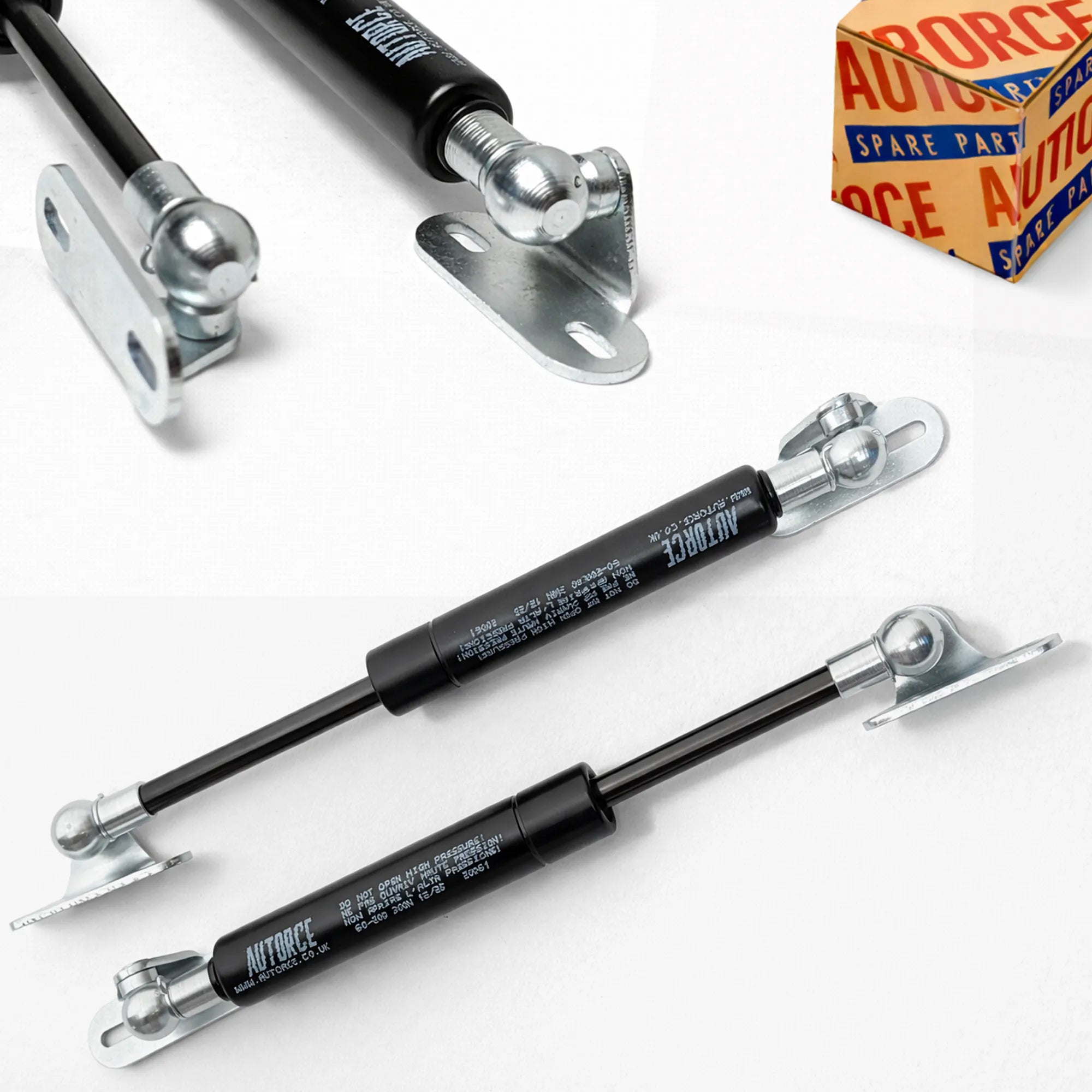

Secure 10mm Ball Socket System
This 400mm 200N gas strut pair uses a 10mm ball socket end designed to snap securely onto the included brackets. The ball-and-socket articulation allows smooth movement during opening and closing, reducing stress on mounting points and improving long-term durability.
Smooth and Controlled Lid Support
With 200N force per strut (400N combined), these toolbox storage lid gas struts provide strong lifting assistance and controlled closing. Ideal for heavier lids where reliable, stable support is essential.
- Helps prevent sudden lid drops
- Improves user safety
- Reduces hinge strain
- Extends the toolbox and storage box lifespan
Key Features
- 10mm ball socket snap-on connection
- 4x heavy-duty steel L brackets included
- Durable finish for workshop and indoor storage environments
- Matched pair for balanced lifting on both sides
- Designed for tool boxes, storage chests and hinged storage lids
For optimal performance, confirm lid weight, depth and mounting clearance before installation.
