250mm 100N M6 Threaded Ball Joint Patio Storage Box Gas Struts (Pair)
✓ IN STOCK - SHIPS TODAY
-
Force: 100N per strut (200N total support)
-
Extended Length: 250mm
-
End Type: M6 Threaded Ball Joint
-
Thread Size: M6
-
Quantity: Supplied as a matched pair (2 gas struts)
-
Brackets: Hole-type mounting brackets included
Suitable For
Designed for small patio storage boxes, garden cushion chests and outdoor deck boxes.
-
Recommended Lid Depth: 300–500mm
-
Suitable Lid Weight (lid only): 5–18kg (when using two struts)
Recommended Lid Weight & Installation Guidance
Force Rating: 100N per strut (200N total per pair)
Recommended Lid Weight: Suitable for lids approximately 5–18kg when using a pair of struts. (Actual performance depends on hinge position and mounting geometry.)
Recommended Mounting Position:
- Install one strut on each side of the lid.
- Mount approximately 20–30% down from the hinge on the lid panel.
- Fix the lower bracket around 80–120mm below the top edge of the box frame (depending on internal depth).
- Ensure the strut is slightly compressed when fully closed to maintain preload.
⚠ If the lid is heavier than 18kg, a higher force rating (e.g. 150N or 200N) may be required. If the lid is lighter than 5kg, the struts may feel too strong.
🔧 Mounting Bracket Type – 4x L Bracket Kit
This kit includes 4x heavy-duty L brackets (90° angle brackets) and is recommended for:
-
Storage boxes with thick internal frames
-
Patio deck boxes with deep side walls
-
Metal storage chests
-
Boxes requiring extra mounting offset
-
Installations where additional clearance is needed
⚠️ For standard flat-panel lids or minimal internal clearance, a mixed mounting kit (L + Flat brackets) may be more suitable.

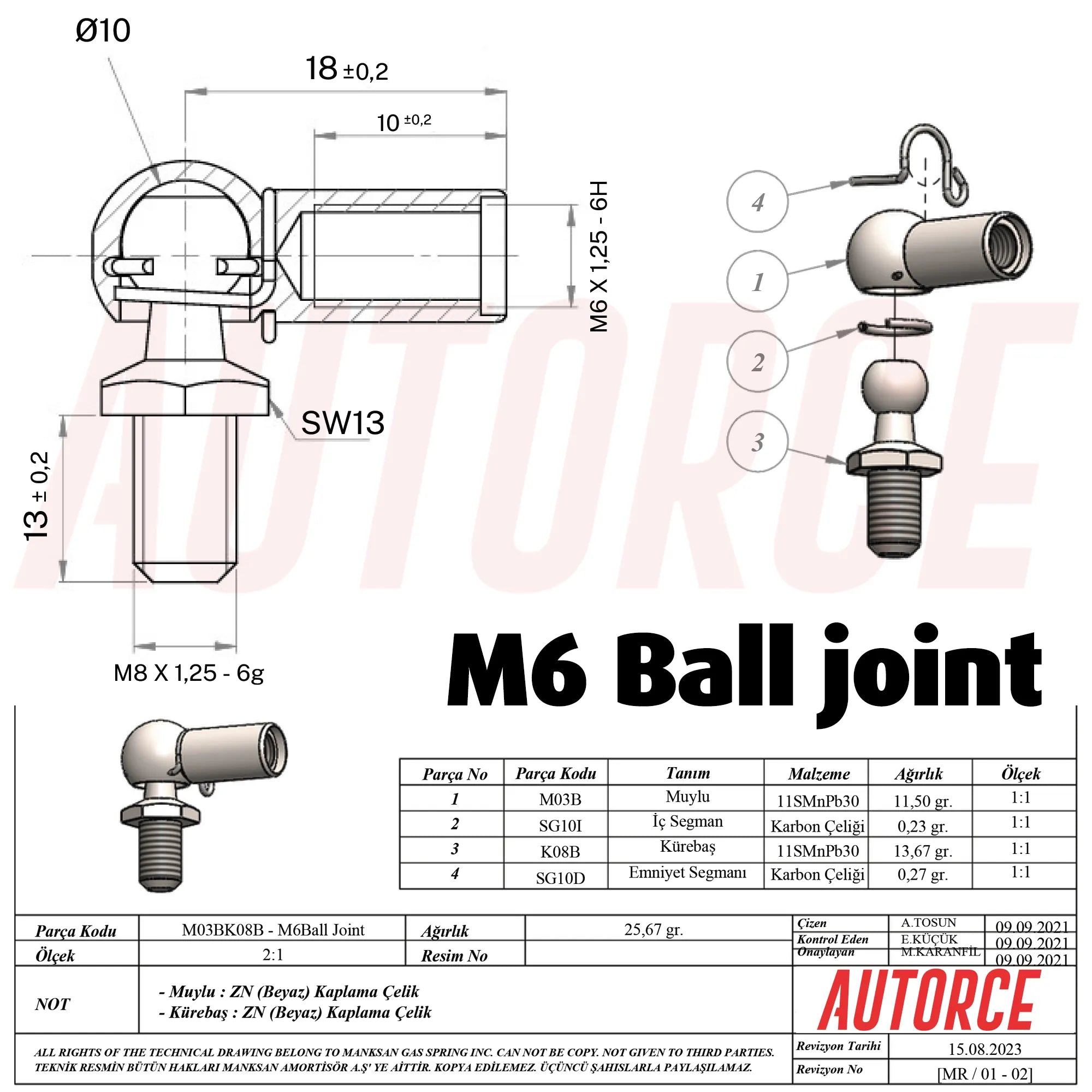

Secure Threaded Ball Joint System
This 250mm 100N gas strut pair features an M6 threaded ball joint end that passes through the bracket hole and is secured using a nut. This bolt-through design creates a rigid and stable fixing point, ideal for wooden, reinforced plastic or light metal patio storage boxes.
Smooth and Controlled Lid Support
With 100N force per strut (200N combined), these patio storage box gas struts provide smooth opening and controlled closing, helping to prevent sudden lid drops and improving user safety.
Key Features
- Heavy-duty steel construction
- Corrosion-resistant finish for outdoor use
- Stable nut-fixed installation
- Ideal replacement for worn or broken lid supports
- Designed specifically for patio storage box lids
For optimal performance, ensure correct mounting position and compatibility with your lid size and weight before installation.
