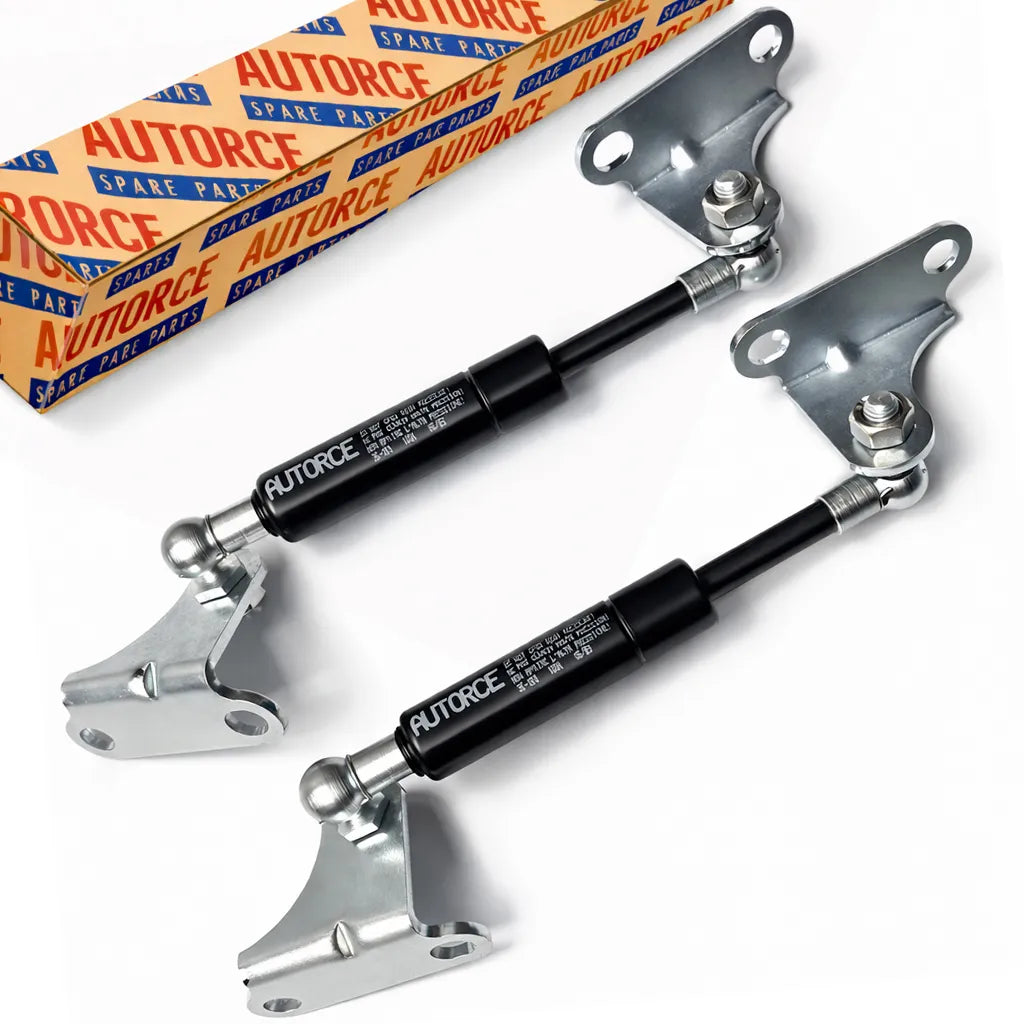

300mm 100N M6 Threaded Ball Joint Patio Storage Box Gas Struts (Pair)
✓ IN STOCK - SHIPS TODAY
-
Force: 100N per strut (200N total support)
-
Extended Length: 300mm
-
End Type: M6 Threaded Ball Joint
-
Thread Size: M6
-
Quantity: Supplied as a matched pair (2 gas struts)
-
Brackets: Hole-type mounting brackets included
Suitable For
Engineered for light to medium-duty patio storage boxes, garden cushion chests, outdoor deck boxes and reinforced lid applications that require smooth, controlled lift support without excessive opening force.
-
Recommended Lid Depth: 400–600mm
-
Suitable Lid Weight (lid only): 5–18kg (when using two struts)
Recommended Lid Weight & Installation Guidance
Force Rating: 100N per strut (200N total per pair)
Recommended Lid Weight: Suitable for lids approximately 5–18kg when using a pair of struts.
(Actual performance depends on hinge position, lid material, and mounting geometry.)
Recommended Mounting Position:
- Install one strut on each side of the lid.
- Mount approximately 20–30% down from the hinge on the lid panel.
- Fix the lower bracket around 90–140mm below the top edge of the box frame (depending on internal depth).
- Ensure the strut is slightly compressed when fully closed to maintain correct preload tension.
⚠ If the lid is heavier than 18kg, a higher force rating may be required.
⚠ If the lid is lighter than 5kg, the struts may feel too strong and push the lid upward.

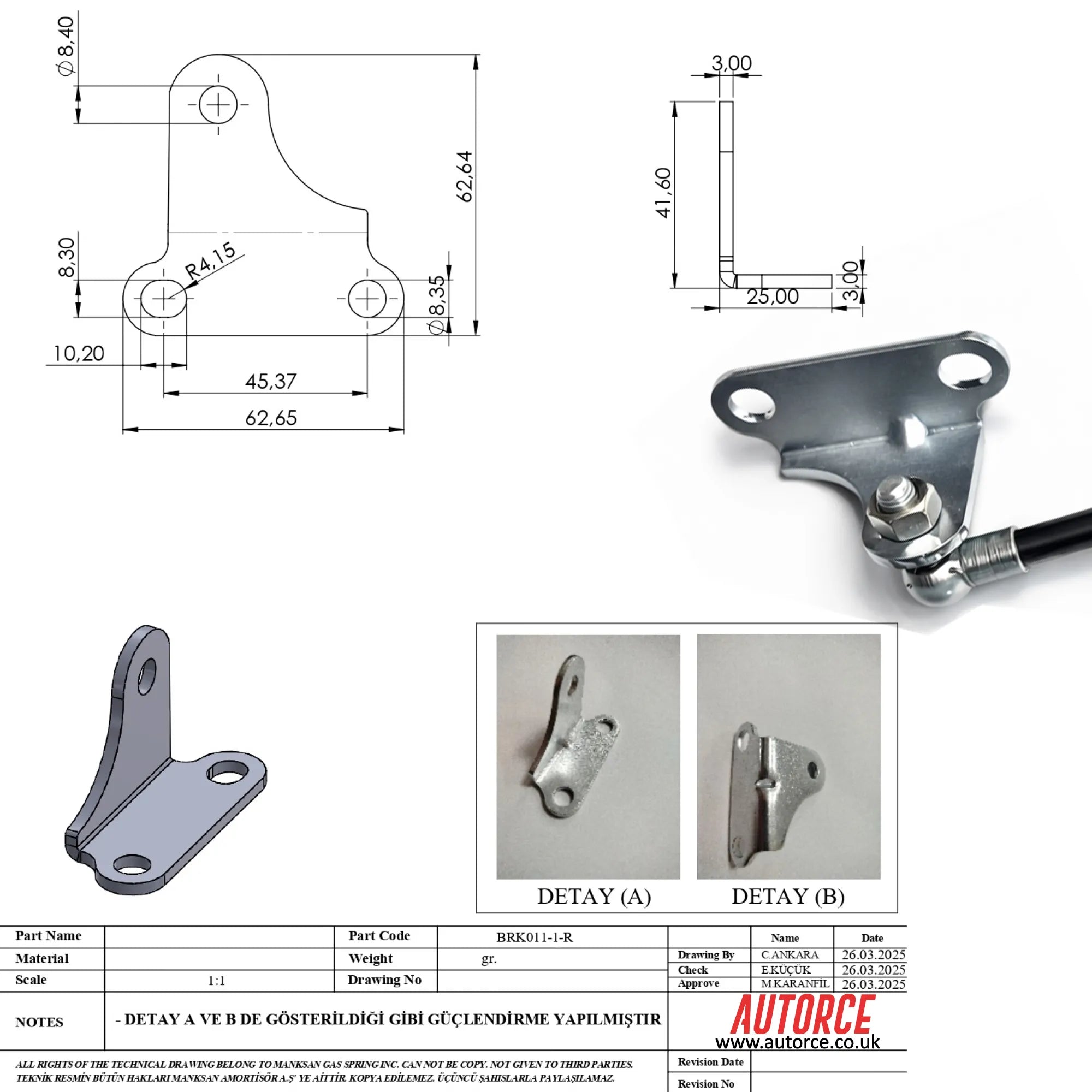

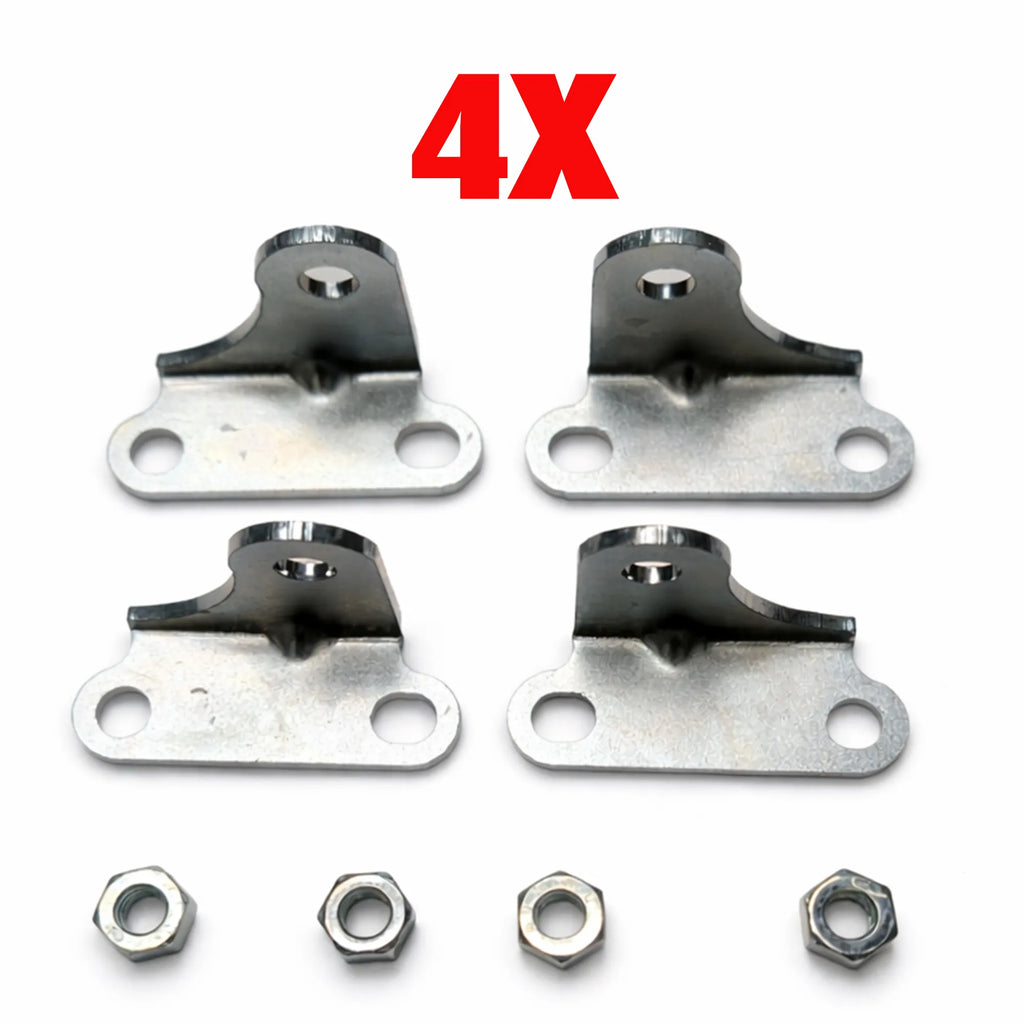

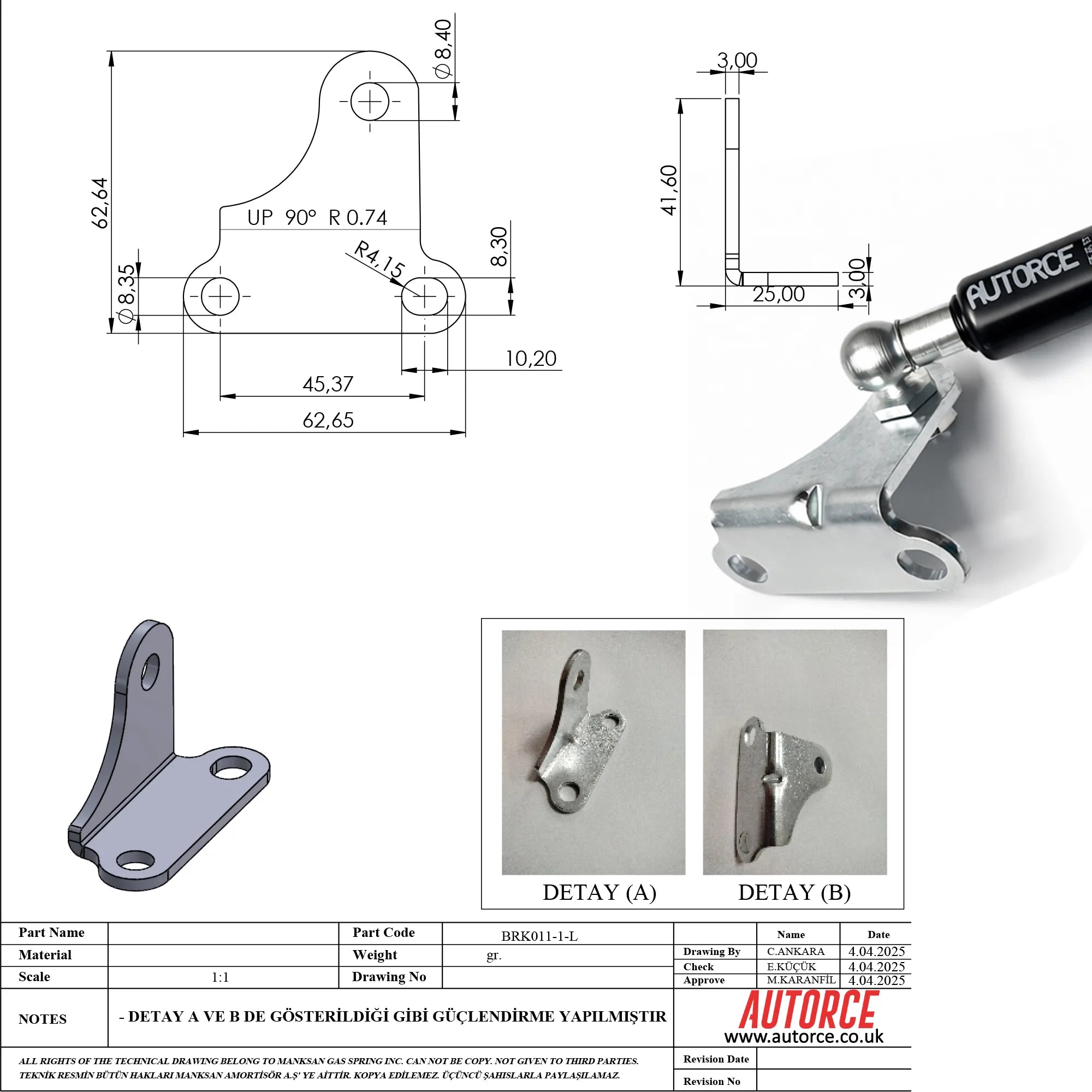

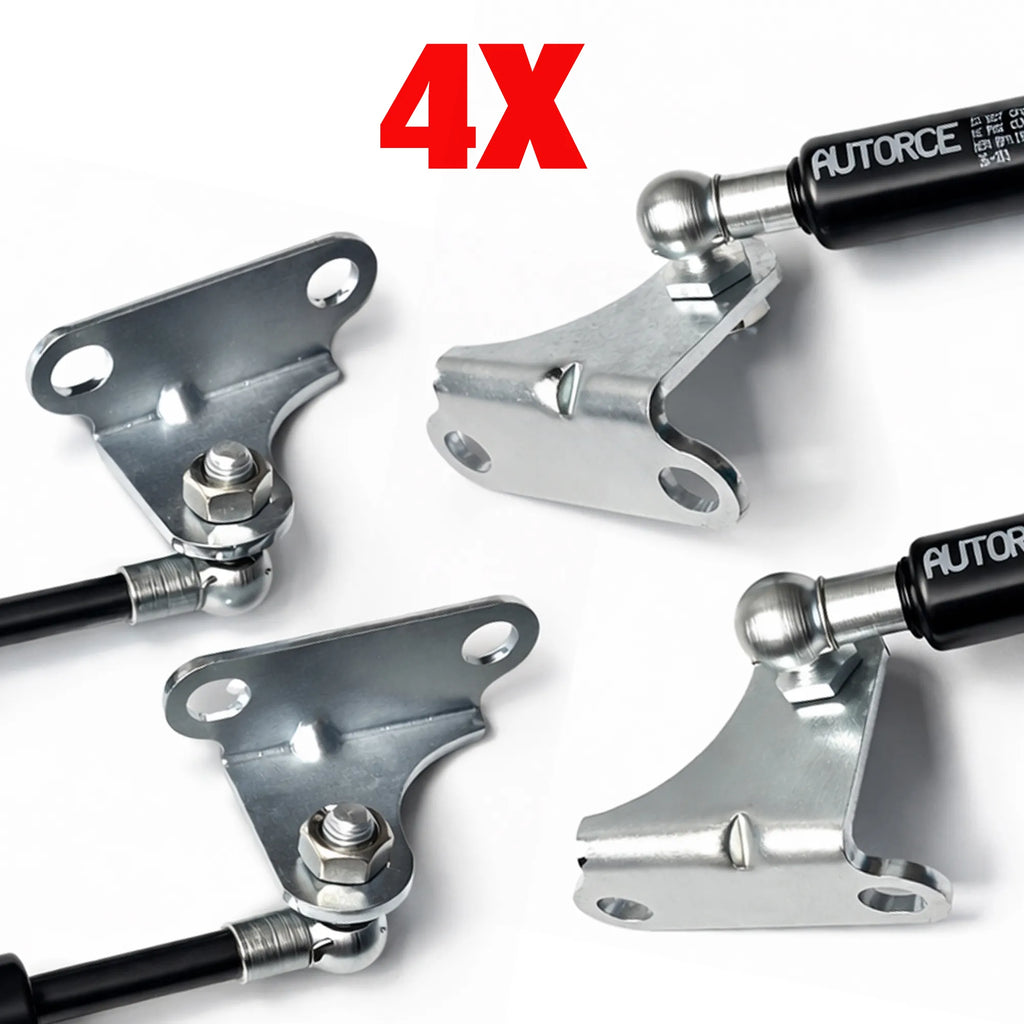

Included Mounting Brackets
This kit includes hole-type mounting brackets designed for bolt-through installation. They’re ideal for:
- Wooden storage boxes and cushion chests
- Reinforced plastic deck boxes
- Installations where secure nut-fastened fixing is preferred
- Applications requiring firm, rigid mounting under repeated opening cycles

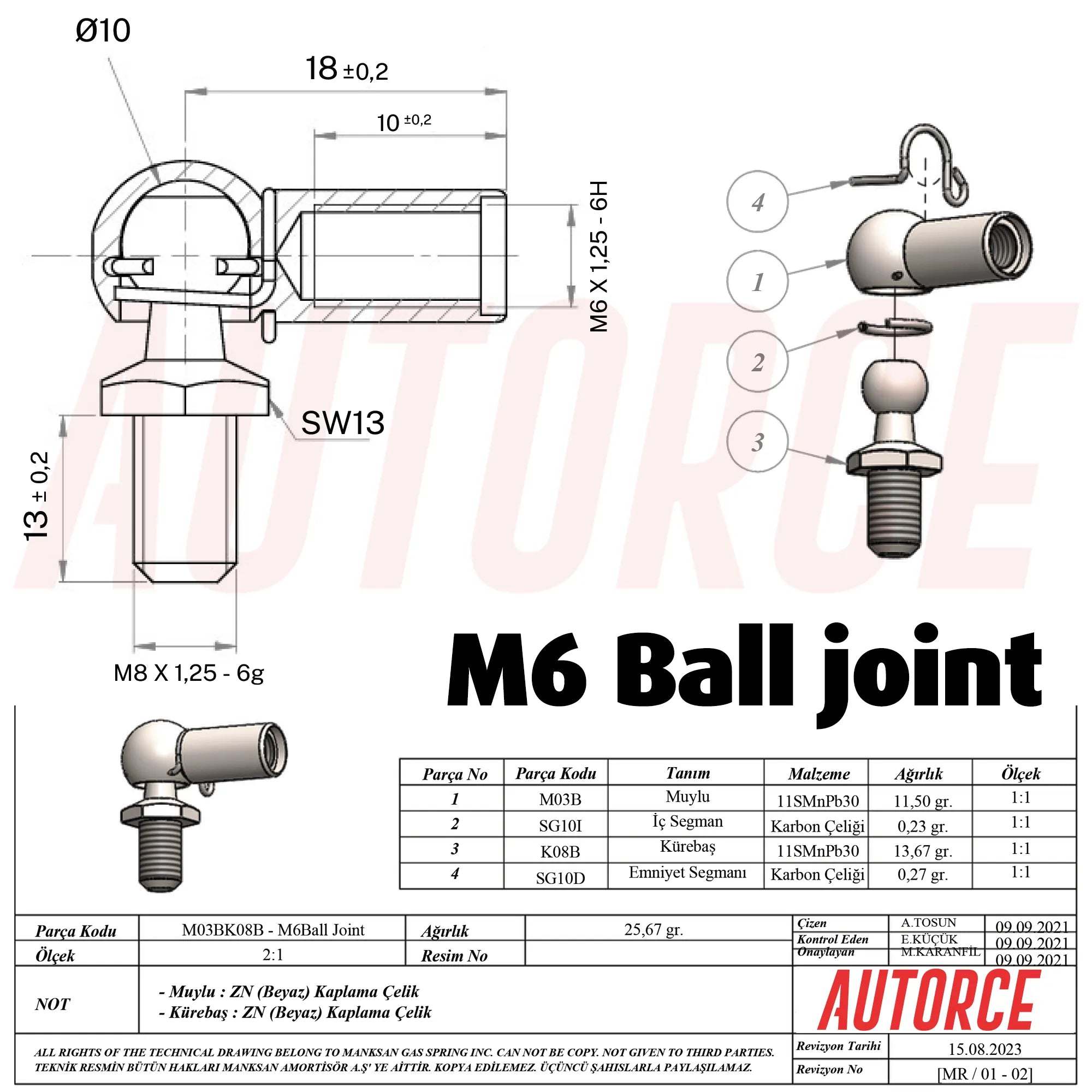

Secure Threaded Ball Joint System
This 300mm 100N gas strut pair features an M6 threaded ball joint end that passes through the bracket hole and secures firmly with a locking nut.
The bolt-through threaded system provides:
- Increased structural rigidity
- Reduced flex under load
- Stable long-term performance
- Secure fixing for wood, reinforced plastic and light metal storage boxes
Smooth and Controlled Lid Support
With 100N force per strut (200N combined), these patio storage box gas struts deliver reliable lift assistance and controlled closing support.
They help:
- Prevent sudden lid drops
- Improve user safety
- Reduce hinge stress
- Extend the lifespan of your storage box
Ideal for upgrading weak or worn-out lid supports.
Key Features
- Heavy-duty steel construction
- Corrosion-resistant coating for outdoor durability
- Nut-secured threaded installation
- Designed for patio storage box lids in the 5–18kg range (pair installed)
- Professional-grade lift support performance
For best results, always confirm lid weight, hinge position and mounting geometry before installation to ensure optimal lift balance.
