Tool Box Storage Lid Gas Struts Pair 500mm 300N - M6 Threaded Ball Joint - 4x Heavy Duty L Brackets
✓ IN STOCK - SHIPS TODAY
Force: 300N per strut (600N total support)
Extended Length: 500mm
Stroke: 210mm
End Type: M6 Threaded Ball Joint
Thread Size: M6
Quantity: Supplied as a matched pair (2 gas struts)
Brackets: Hole-type mounting brackets included (4x Heavy Duty L Brackets)
Suitable For
Engineered for toolbox storage lids, van/pickup tool chests, garage storage chests and reinforced lid applications requiring stronger lift support and secure fixing.
Recommended Lid Depth: 650–1000mm
Suitable Lid Weight (lid only): 30–54kg (when using two struts)
Recommended Lid Weight & Installation Guidance
Force Rating: 200N per strut (400N total per pair)
Recommended Lid Weight: Suitable for lids approximately 30–54kg when using a pair of struts.
(Actual performance depends on hinge position, lid material, and mounting geometry.)
Recommended Mounting Position:
-
Install one strut on each side of the lid.
-
Mount approximately 20–30% down from the hinge on the lid panel.
-
Fix the lower bracket around 80–120mm below the top edge of the box frame (depending on internal depth).
-
Ensure the strut is slightly compressed when fully closed to maintain correct preload tension.
⚠ If the lid is heavier than 54kg, a higher force rating may be required.
⚠ If the lid is lighter than 30kg, the struts may feel too strong and push the lid upward.

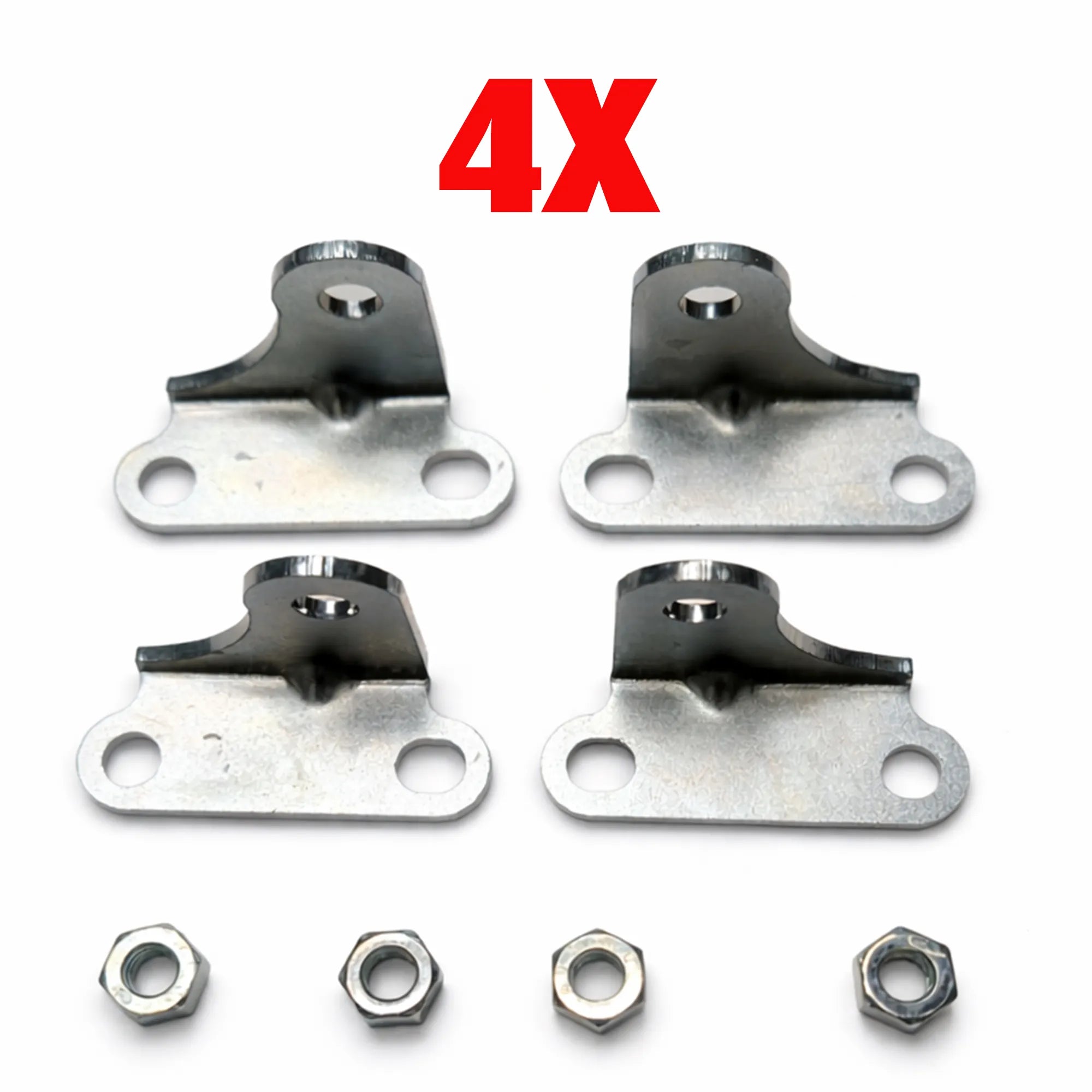

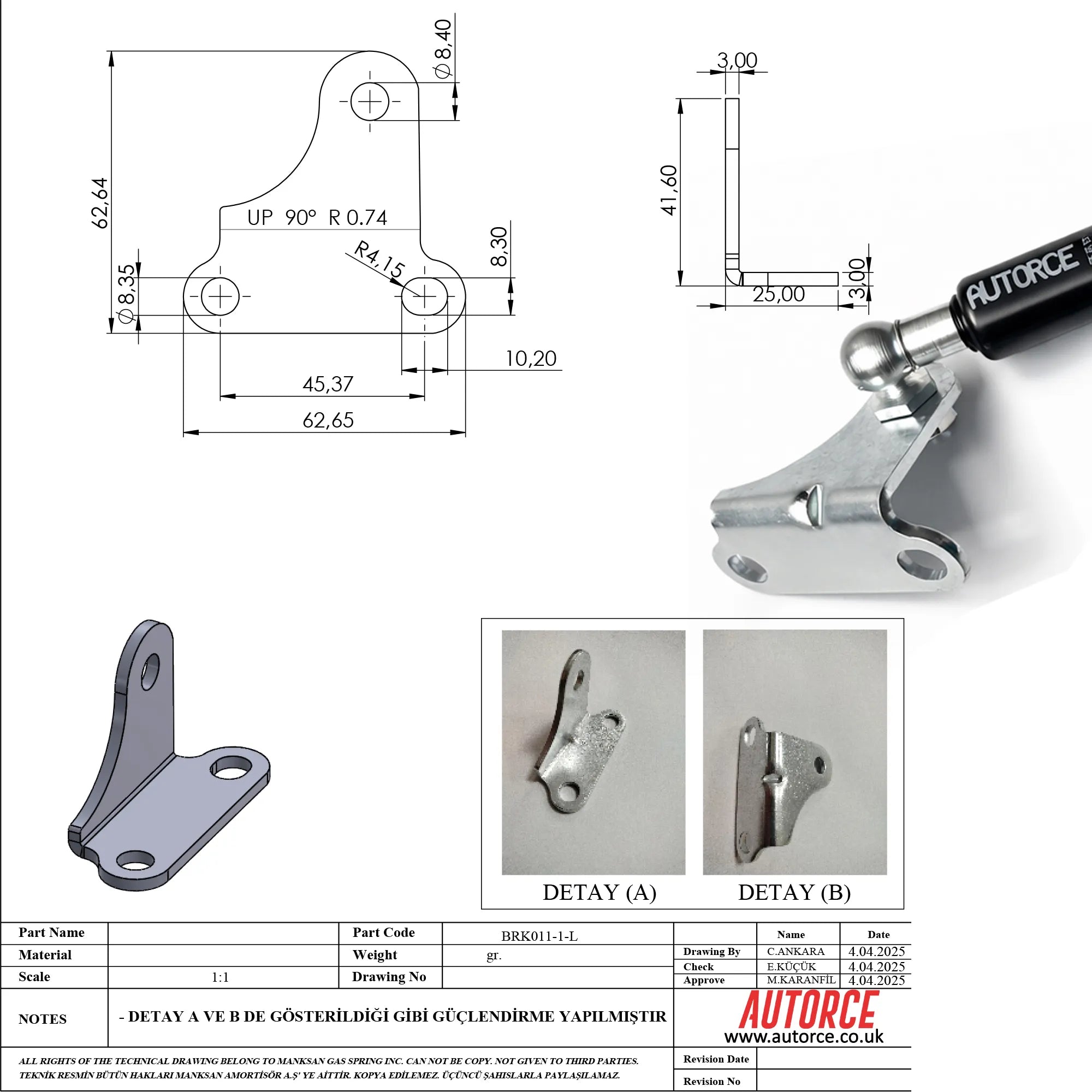

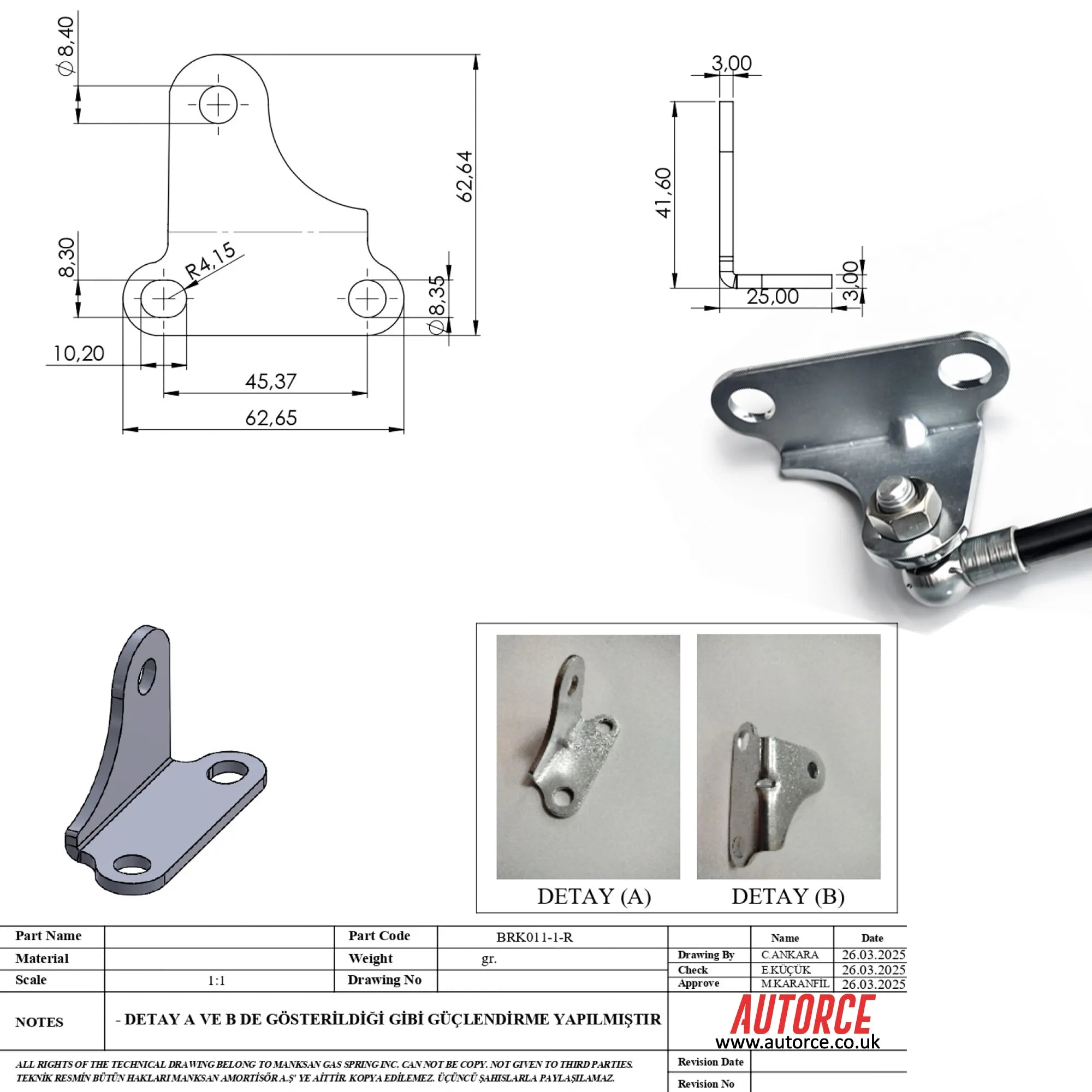

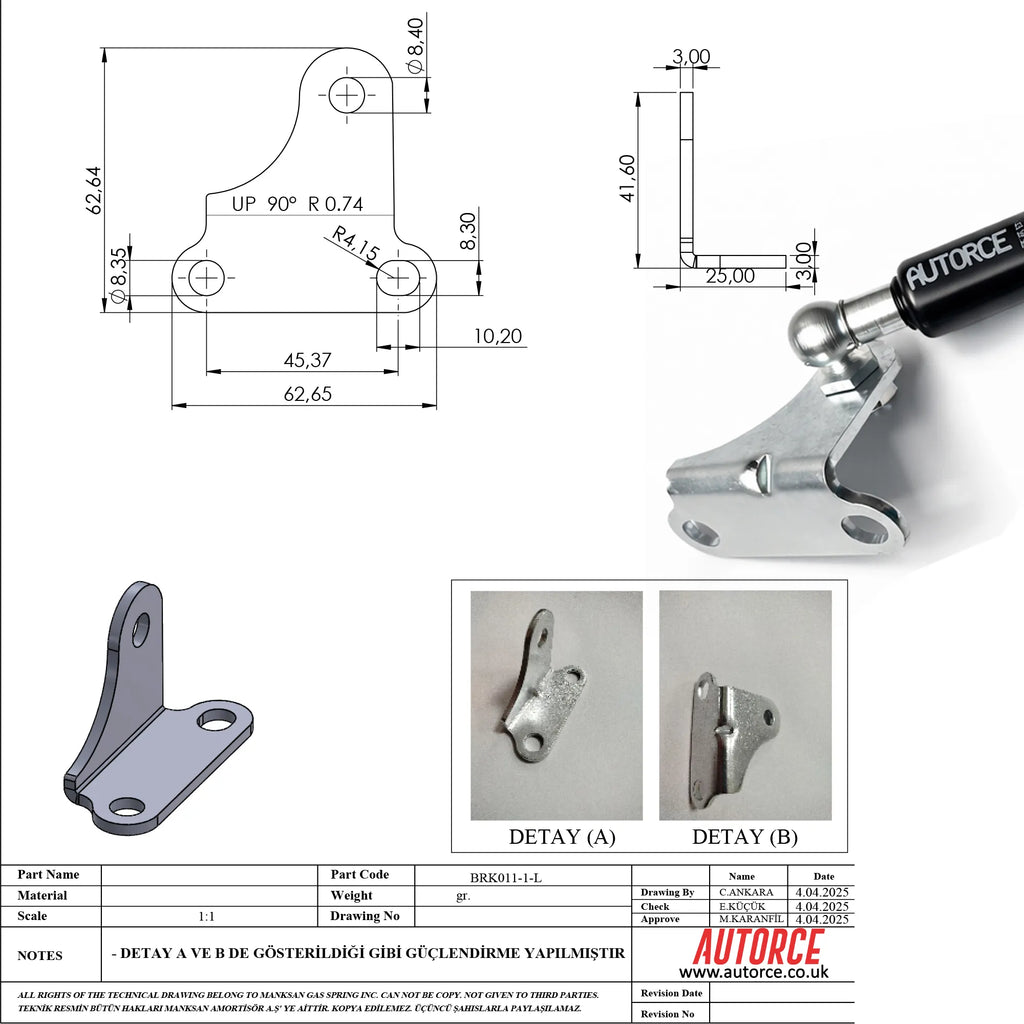

🔧 Mounting Bracket Type – 4x L Bracket Kit
This kit includes 4x heavy-duty L brackets (90° angle brackets) and is recommended for:
-
Tool boxes with reinforced internal frames
-
Deep van/pickup storage tool chests
-
Metal storage chests
-
Hardwood or thick composite lids
-
Installations requiring extra offset clearance
⚠️ For slim lids or minimal internal clearance, a mixed mounting kit (L + Flat brackets) may be more suitable.

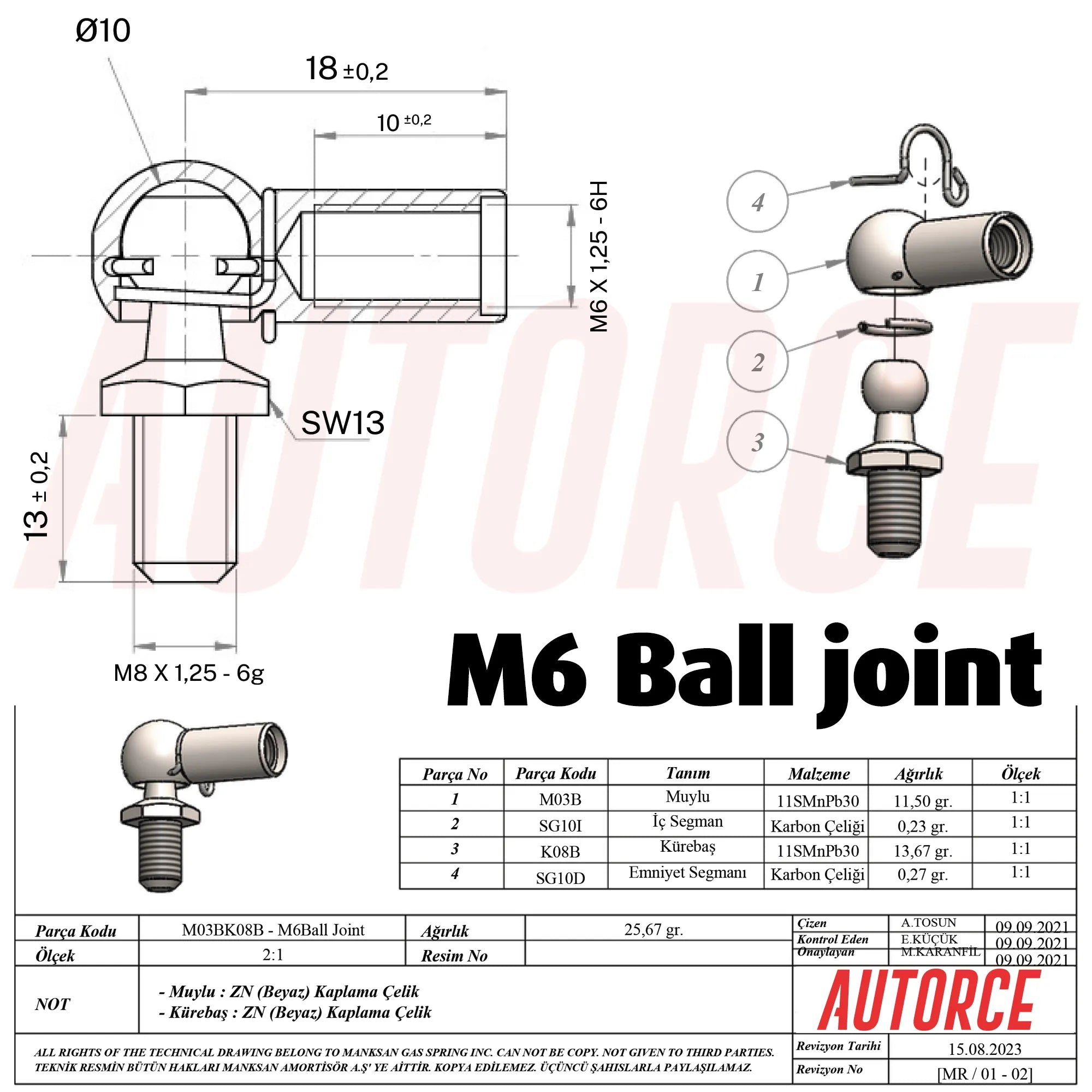

Secure Threaded Ball Joint System
This 250mm 200N gas strut pair features an M6 threaded ball joint end that passes through the bracket hole and secures firmly with a locking nut.
The bolt-through threaded system provides:
-
Increased structural rigidity
-
Reduced flex under heavy load
-
Stable long-term performance
-
Secure fixing for wood, reinforced plastic and light metal tool boxes/storage chests
Smooth and Controlled Lid Support
With 200N force per strut (400N combined), these heavy-duty tool box lid gas struts deliver powerful lift assistance and controlled soft-close performance.
They help:
Ideal for upgrading weak or worn-out lid supports.
Key Features
-
Heavy-duty steel construction
-
Corrosion-resistant coating for long-term durability
-
Nut-secured threaded installation
-
Designed for medium to heavy toolbox/storage lid applications
-
Professional-grade lift support performance
For best results, always confirm lid weight, hinge position and mounting geometry before installation to ensure optimal lift balance.
